Hans Otten1d ago

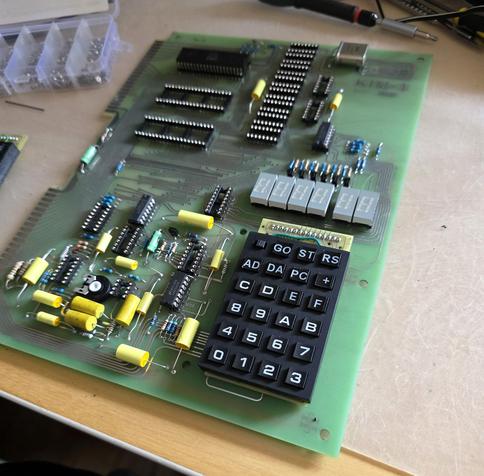

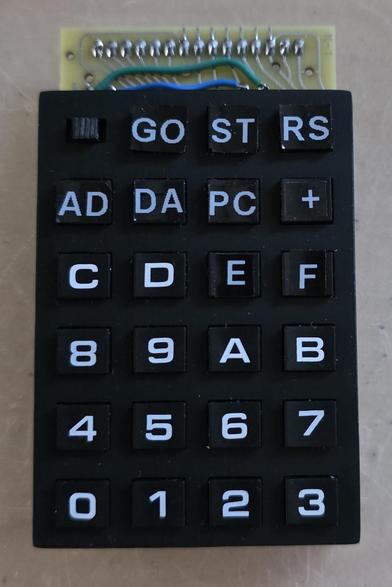

A spare KIM-1 keypad is even rarer than a KIM-1 itself. With this guide you can build a reasonable replica of the keypad.

Thanks to the work of Eduardo Casino (the PCB) and Pete (peo2000 on forum64.org) I have published a DIY guide for a good looking KIM-1 keypad replica.

http://retro.hansotten.nl/6502-sbc/kim-1-manuals-and-software/my-kim-1-family/kim-replicas-and-clones/diy-kim-1-keypad/

Show threadBigby

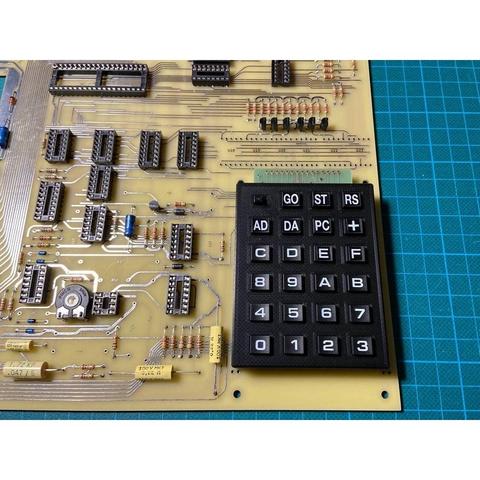

@hansotten Nice! Looks like a variant of the keypads I built and shared a few years ago: https://www.thingiverse.com/thing:5596116
Mar 22 at 12:41amWeb
Show threadBigby17h ago
@hansotten Never ever having had the chance to use a real one I wonder: which would be closer to the original haptics, using those tactile switches or the rubber domes from the two donor keypads?
Show threadHans Otten4h ago
@bigby Looks familiar. My ralph02 KIM-1 replica has one of these. Description also on my website,
No microswitches indeed. Looks nice too. The width of the 'Eduardo' variant is more like the original.
