RISC-V is sloooow – Marcin Juszkiewicz

143 vs 36 minutes is far too big difference

Don't blame the ISA - blame the silicon implementations AND the software with no architecture-specific optimisations.

RISC-V will get there, eventually.

I remember that ARM started as a speed demon with conscious power consumption, then was surpassed by x86s and PPCs on desktops and moved to embedded, where it shone by being very frugal with power, only to now be leaving the embedded space with implementations optimised for speed more than power.

> RISC-V will get there, eventually.

Not trolling: I legitimately don't see why this is assumed to be true. It is one of those things that is true only once it has been achieved. Otherwise we would be able to create super high performance Sparc or SuperH processors, and we don't.

As you note, Arm once was fast, then slow, then fast. RISC-V has never actually been fast. It has enabled surprisingly good implementations by small numbers of people, but competing at the high end (mobile, desktop or server) it is not.

RISC-V doesn't have the pitfalls of Sparc (register windows, branch delay slots), largely because we learned from that. It's in fact a very "boring" architecture. There's no one that expects it'll be hard to optimize for. There are at least 2 designs that have taped out in small runs and have high end performance.

> RISC-V doesn't have the pitfalls of Sparc (register windows, branch delay slots),

You're saying ISA design does have implementation performance implications then? ;)

> There's no one that expects it'll be hard to optimize for

[Raises hand]

> There are at least 2 designs that have taped out in small runs and have high end performance.

Are these public?

Edit: I should add, I'm well aware of the cultural mismatch between HN and the semi industry, and have been caught in it more than a few times, but I also know the semi industry well enough to not trust anything they say. (Everything from well meaning but optimistic through to outright malicious depending on the company).

The 2 designs I'm thinking of are (tiresomely) under NDA, although I'm sure others will be able to say what they are. Last November I had a sample of one of them in my hand and played with the silicon at their labs, running a bunch of AI workloads. They didn't let me take notes or photographs.

> There's no one that expects it'll be hard to optimize for

No one who is an expert in the field, and we (at Red Hat) talk to them routinely.

Expert here, are these made for general purpose workloads or do you expect them to be fast for AI only?

In some cases RISC-V ISA spec is definitely the one to blame:

1) https://github.com/llvm/llvm-project/issues/150263

2) https://github.com/llvm/llvm-project/issues/141488

Another example is hard-coded 4 KiB page size which effectively kneecaps ISA when compared against ARM.

All of those things are solved with modern extensions. It's like comparing pre-MMX x86 code with modern x86. Misaligned loads and stores are Zicclsm, bit manipulation is Zb[abcs], atomic memory operations are made mandatory in Ziccamoa.

All of these extensions are mandatory in the RVA22 and RVA23 profiles and so will be implemented on any up to date RISC-V core. It's definitely worth setting your compiler target appropriately before making comparisons.

Ubuntu being RVA23 is looking smarter and smarter.

The RISC-V ecosystem being handicapped by backwards compatibility does not make sense at this point.

Every new RISC-V board is going to be RVA23 capable. Now is the time to draw a line in the sand.

I’d be kind of depressed if every new RISC-V board was not RVA23 capable.

>Misaligned loads and stores are Zicclsm

Nope. See https://github.com/llvm/llvm-project/issues/110454 which was linked in the first issue. The spec authors have managed to made a mess even here.

Now they want to introduce yet another (sic!) extension Oilsm... It maaaaaay become part of RVA30, so in the best case scenario it will be decades before we will be able to rely on it widely (especially considering that RVA23 is likely to become heavily entrenched as "the default").

IMO the spec authors should've mandated that the base load/store instructions work only with aligned pointers and introduced misaligned instructions in a separate early extension. (After all, passing a misaligned pointer where your code does not expect it is a correctness issue.) But I would've been fine as well if they mandated that misaligned pointers should be always accepted. Instead we have to deal the terrible middle ground.

>atomic memory operations are made mandatory in Ziccamoa

In other words, forget about potential performance advantages of load-link/store-conditional instructions. `compare_exchange` and `compare_exchange_weak` will always compile into the same instructions.

And I guess you are fine with the page size part. I know there are huge-page-like proposals, but they do not resolve the fundamental issue.

I have other minor performance-related nits such `seed` CSR being allowed to produce poor quality entropy which means that we have bring a whole CSPRNG if we want to generate a cryptographic key or nonce on a low-powered micro-controller.

By no means I consider myself a RISC-V expert, if anything my familiarity with the ISA as a systems language programmer is quite shallow, but the number of accumulated disappointments even from such shallow familiarity has cooled my enthusiasm for RISC-V quite significantly.

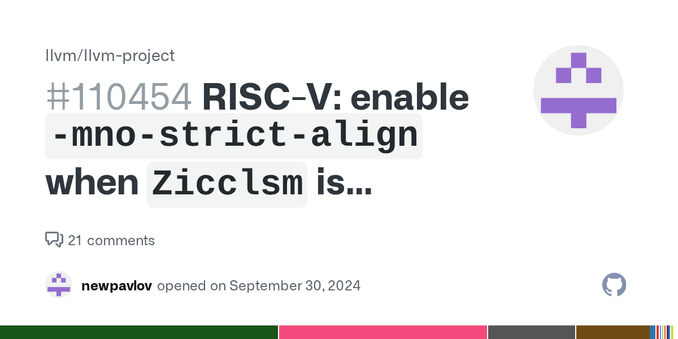

RISC-V: enable `-mno-strict-align` when `Zicclsm` is enabled · Issue #110454 · llvm/llvm-project

Otherwise LLVM generates terrible code for misaligned loads/stores, as can be seen here: https://rust.godbolt.org/z/ax1bqeeKx The RISC-V Profiles specification states the following Even though mand...

GitHub

I think having separate unaligned load/store instructions would be a much worse design, not least because they use a lot of the opcode space. I don't understand why you don't just have an option to not generate misaligned loads for people that happen to be running on CPUs where it's really slow. You don't need to wait for a profile for that.

As for `seed`, if you're running on a microcontroller you can just look up the data sheet to see if it's seed entropy is sufficient. By the time you get to CPUs where portable code is important a CSPRNG is probably fine.

I agree about page size though. Svnapot seems overly complicated and gives only a fraction of the advantages of actually bigger pages.

RISC-V is not particularly good at using opcode space, unfortunately.
