NXP i.MX 93W wireless MPU SiP pairs dual-core Arm Cortex-A55 processor with NXP iW610 WiFi 6, Bluetooth LE, and 805.15.4 radio

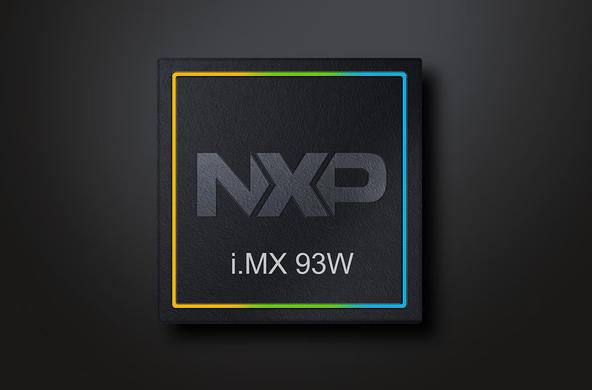

NXP i.MX 93W is the company's first integrated wireless MPU System-in-Package (SiP) and combines a dual-core Cortex-A55 processor (NXP i.MX 93) with an iW610 WiFi 6, Bluetooth LE, and 802.15.4 tri-radio into a single chip. The 14.2 x 12 mm package also includes all the external radio components needed for wireless connectivity, replacing up to 60 discrete components on the PCB. NXP says it reduces the PCB area, simplifies PCB design and regulatory approval, and speeds up time-to-market. NXP i.MX 93W specifications: CPU Dual-Core Arm Cortex-A55 at up to 1.7 GHz Arm Cortex-M33 core at 250 MHz for real-time control GPU - 2D graphics accelerator AI accelerator - Arm Ethos-U65 microNPU Memory I/F - Up to 3.7GT/s 16-bit LPDDR4/LPDDR4X with inline ECC Storage I/F - 2x SD 3.0/SDIO 3.0/eMMC 5.1 Display Interfaces MIPI DSI up to 1080p60 LVDS up to 720p60 24-bit parallel RGB Camera Interface - 2-lane MIPI CSI up
