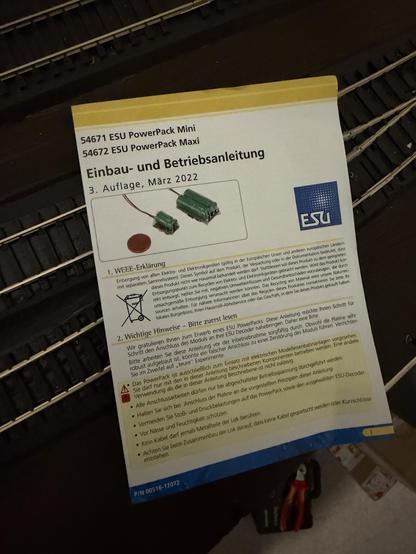

Phil HaighRight, it’s time to fit a stay-alive to my GWR 4400 tank engine from Rapido. The instructions are in German and the parts are tiny, what could possibly go wrong?

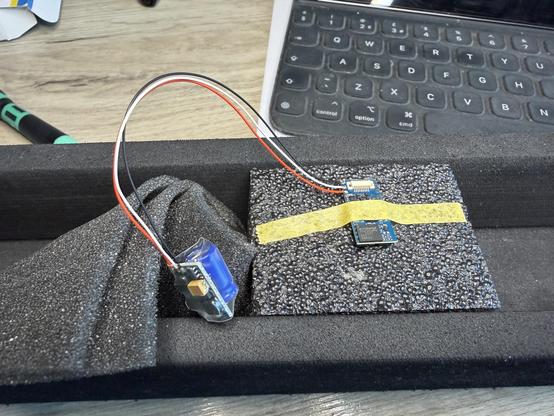

The decoder, an ESU Next18 LokSound 5, is tiny. The stay-alive is also tiny. To solder the stay-alive’s tiny wires I had to tape the decoder down to stop it moving, and use a magnifying lamp so that I could see what I was doing.
Having done the soldering I put the decoder back on the chassis. Rapido have left exactly the right amount of space for the stay-alive in front of the boiler, but mine jams when it is half-way in. Hmm.
Looking more closely at the stay-alive I can see that it is slightly wedge-shaped because the capacitor isn’t flat to the PCB.
The answer is to remove the heat shrink and there’s just enough movement in the capacitor to move it sideways slightly which allows it to sit a bit lower down. Cover it all in kapton tape for insulation and it’s now small enough to just fit.
I used JMRI DecoderPro to update the CVs. The stay-alive gives the locomotive 4-5 seconds of running without power, which should be more than enough to cope with any temporary power losses.
