tofuMay 17, 2025

Finished my 10" rack (for now)

https://lemmy.nocturnal.garden/post/74822

Finished my 10" rack (for now) - Nocturnal Lemmy

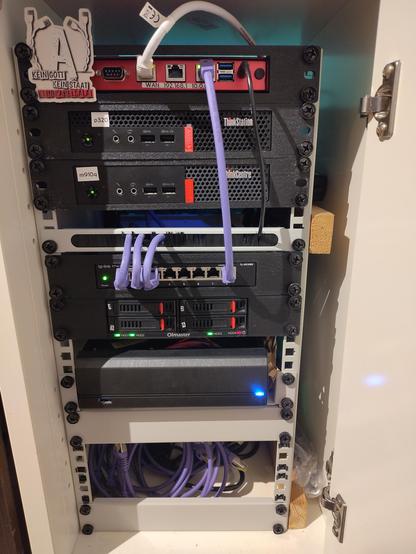

cross-posted from: https://lemmy.nocturnal.garden/post/74770 [https://lemmy.nocturnal.garden/post/74770] > Been planning to migrate from my Supermicro monolith server for a while and finally finished the migration. Red thing is opnsense on an APU engine, Lenovos run a proxmox cluster, below is a mini PC with attached JBOD running TrueNAS. > > Next step is to get another shelf for my Raspi and openDTU.

Show threadpigup
Someone tell me what everything does here pls
May 18, 2025 at 1:57pmWeb
Show threadFenrir May 18, 2025
Computer stuff
Show threadsugar_in_your_teaMay 18, 2025

My guess, from top to bottom:

  • Router
  • Server
  • Server
  • Switch (apparently 10.0.0 subnet)
  • rack mounted drives (JBOD?), probably connected to one of the servers
  • UPS? Battery backup for something on the rack
  • Extra cable storage
    • Show threadtofuMay 18, 2025
    Almost correct! 1. is just a firewall, the router is not in the rack. I wanted to have this separate from the “family lan”. 6. is a mini PC to which the drives are connected, acting as a NAS.
    Show threadsugar_in_your_teaMay 18, 2025
    I take it the 192.168.1 subnet is the family lan?
    Show threadtofuMay 18, 2025
    No, WAN is the family lan. It’s connected to one of the actual router’s ports (some Fritzbox connected to the ISP). 192.168.1 is inactive, I was just messing around with it when I got the unit.
