@qunit @krinkle that looks very useful and clear to me!

if this was an article and I was the editor, I'd only suggest reducing noise: IMHO you want to explain the concept more than executable code, so you don't need to spell out the complete function name here

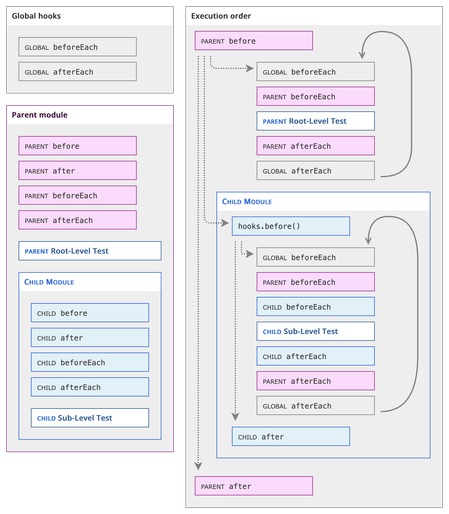

I've allowed myself to tweak your diagram in order to illustrate this, just as an approximation though: I'm not visually competent
