Dr.Muesli

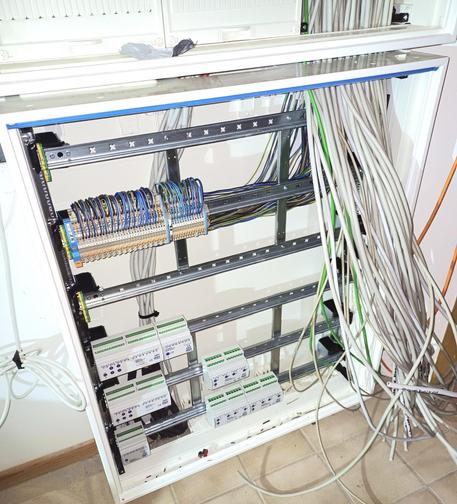

Starting to strip the cables and connect the wires to the terminals.
How glad I am that triple-deck terminals exist! lol
And on we go!

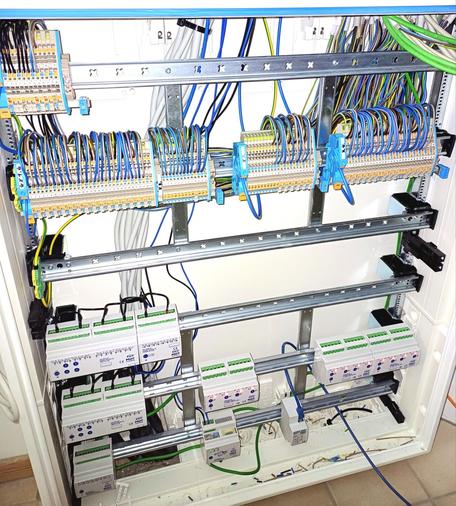

The second cable bundle has been connected to the terminals. The KNX components are already operational.
Not all actuators are installed yet. Terminal blocks for the KNX cables and reed contacts will also be added. After that, I can continue with the internal wiring.
Have I mentioned that I love wires? lol

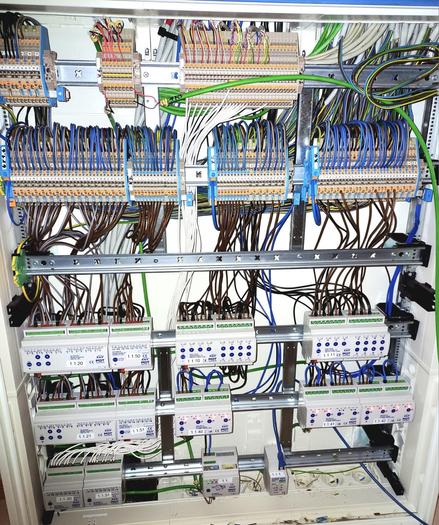

Added even more wires. You can never have too many wires!
For thermal reasons, the wires are not bundled, even though it would look nicer. Unfortunately, once the cover is on, none of this will be visible anymore.
Kana Miyoshi@Dr_Muesli Atleast its nice and neat for when you do need to open it up again. Looks nice having them all neat
Thanks!
You're right, if someone has to work on the system again, then it looks nice and neat.
I would prefer the wires to be bundled, but the free wiring is also better in case you need to trace a connection.
@Dr_Muesli that's good atleast that there is a upside to not having them bundled together
sabrina 🌊@Dr_Muesli very satisfying!
Thank you, I'm glad if you like it!
