Ken ShirriffAug 3, 2024
The Space Shuttle had a 59-pound printer on board, known as the Interim Teleprinter. Putting this heavy printer in orbit cost $1.5 million per flight, but it was a key piece of flight hardware,
providing the astronauts with mission plans, weather reports, and other documents from Mission Control. Let's take a look inside... 1/12
Show threadKen ShirriffAug 3, 2024
The Shuttle printer uses a spinning metal drum with raised characters. 80 hammers, one for each column, fire at the exact moments to hit the ribbon and paper against a character on the drum as it spins by. 2/12
Show threadKen ShirriffAug 3, 2024

Here's a closeup of the hammers in action as the Shuttle teleprinter prints a line. 3/12

https://youtu.be/1SjtmePBZjo

- YouTube

Enjoy the videos and music you love, upload original content, and share it all with friends, family, and the world on YouTube.

Show threadKen ShirriffAug 3, 2024

The teleprinter design thrown together in just 7 months after a delay in the TDRS satellites meant that the fancier digital printer wouldn't work for the first few flights.

Although the Interim Teleprinter was expected to be used for a short time, it remained in operation for over 50 flights, acting as a backup printer. 4/12

Show threadKen ShirriffAug 3, 2024

The teleprinter was based on a military communications terminal, with many modifications. The keyboard was removed and boards were added to interface with the Shuttle's audio system.

The system still contained a word processor, unusable without the keyboard. 5/12

Show threadKen ShirriffAug 3, 2024

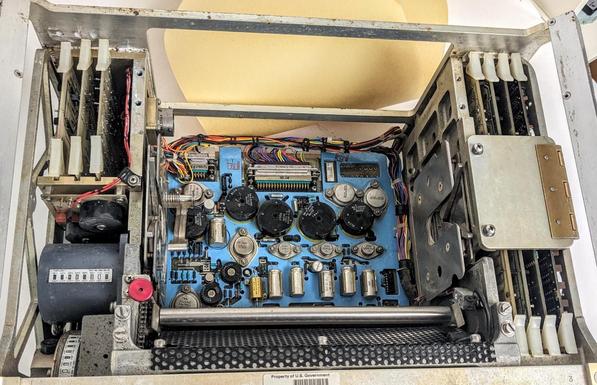

This view inside the teleprinter shows the three custom Shuttle boards (left), the power supply (blue), and the four logic boards (right).
6/12
Show threadFritz Adalis
@kenshirriff
Were the non-custom boards hardened for space, or is that the same as mil-spec?
Aug 3, 2024 at 4:37pmWeb
