OK here's a full photo set for my latest keyboard, the short-lived Ficherman 0.1. This was a keyboard used with my automation system at my microfiche scanning job at the internet archive.
(I hate photographing shiny PCBs. They make the autofocus of my camera all confuzeled.)

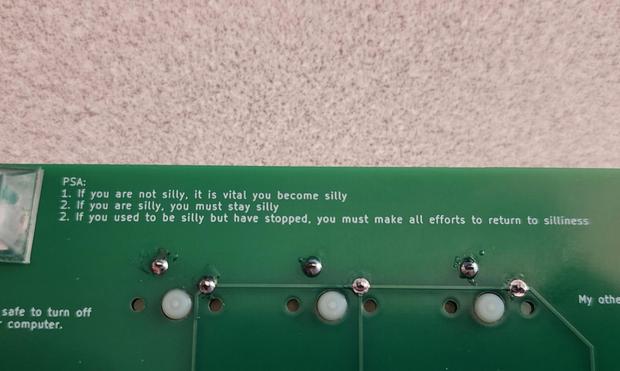

Another quote of my own tumblr posts.
The fact there are two 2s is accurate to the tumblr post, btw.
Another library-related quote, since I made this thing for use inside a library.
(I was slightly tempted to make the last line read "France Is Bacon", but resisted)
Technologically there's not much fancy about this. It's not a keyboard matrix: It doesn't need to be! we have more GPIO lines than pins/LEDs.
The code running on it is very simple: it watches all the GPIO lines with buttons, debounces them, and sends press/release messages to the PC over serial.
I didn't get to use this much: My first day with it functional was July 2nd, and the last day I was working at the internet archive was the 8th. I think I worked only one full day between those dates!
But despite not getting to really use it much, it was fun to make, and it worked really well for the project, when I did get to use it.
