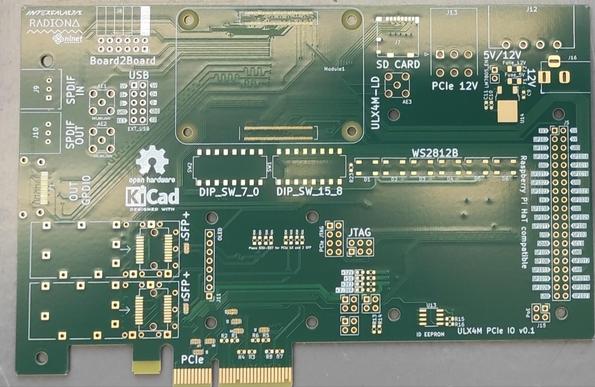

Goran_MahovlicPartially assembled #ULX4M #PCIe baseboard. With onboard resistor jumpers I can set 1x PCIe + 2xSTP or 4x PCIe. I can now check simple stuff, but for PCIe I will need to use #Litex
Hello from BB3-CM4! In collaboration with @envox && #RadionaORG && #Intergalaktik
and with @NGIZero funding we have working prototype of @Raspberry_Pi #CM4 compatible #BenchBox3 that can also hold #ULX4M FPGA board or other compatible board. #STM32 board is also in progress!
and with @NGIZero funding we have working prototype of @Raspberry_Pi #CM4 compatible #BenchBox3 that can also hold #ULX4M FPGA board or other compatible board. #STM32 board is also in progress!

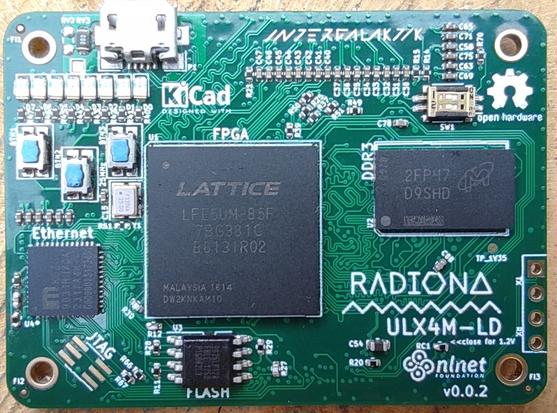

Ethernet is on! And working! #ULX4M-LD with small reminder to myself: " Double check values of important resistors and do not miss K in value " Poor chip got 12.1ohm instead 12.1Kohm for ISET - Test was done with Litex as it was simplest way to get core running.

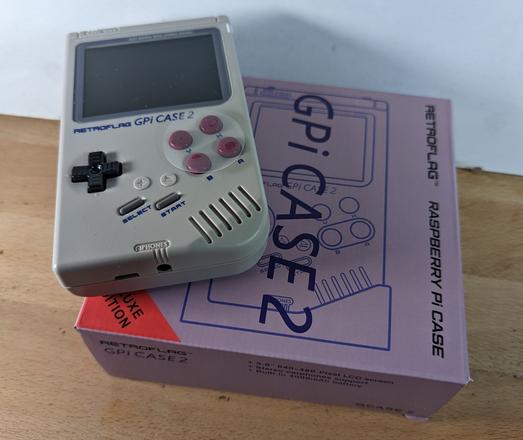

sylefebGetting ready for the #ULX4M! I could not resist to the idea of having it in this GPi Case 2. Have quite a few hardware designs that should be fun to play on this!

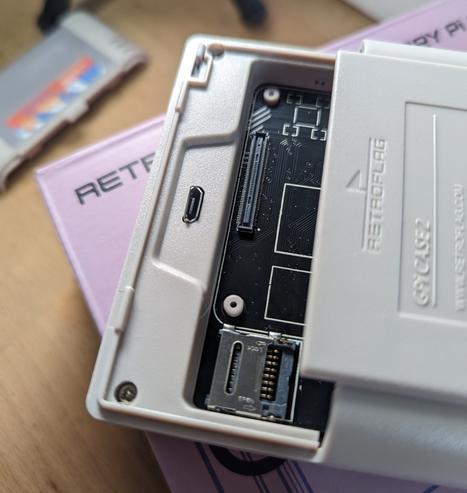

But wow, I had not realized how tiny these connectors are.
But wow, I had not realized how tiny these connectors are.
iPostHuman@olimex Curious, what kind of FPGA board style are you thinking of? Is it something like an #ULX4M module arrangement or maybe like #Machdyne 's https://machdyne.com/product/kolsch-computer/
π€ π
π€ π
#ULX4M Checking camera stream... ECC is matched 0x70 0x00 is Virtual CH, 0x15 should be data type and 16 bits should be Word count... 11111 are just my start end bits...
