Ethan BlantonProgress! Ignore the camera pretending it has a heartbeat as it tries to decide what to focus on. Still nothing on the CGA, but I feel a lot better hearing that tone after @emily pointed out that I have to jumper the internal speaker on.
EmilyWorking on my Micro 8088 and got the floppy controller done! But I forgot the 3.5" floppy uses a different power connector size (feels like a 1993 rookie mistake.) So waiting on an adapter. In the mean team, switched to my VGA board for some fun.

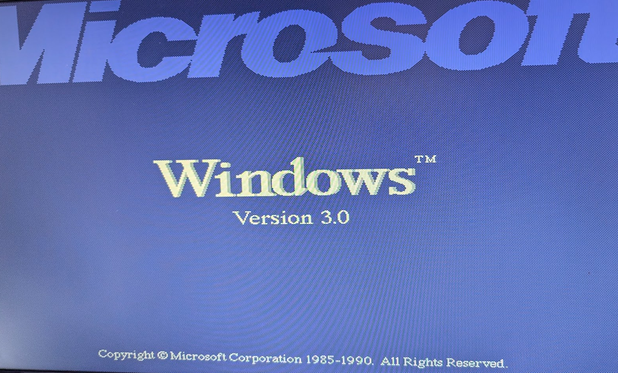

#Retrocomputing #Windows #Microsoft #vintagecomputing #Micro8088 #8088 #diy #soldering

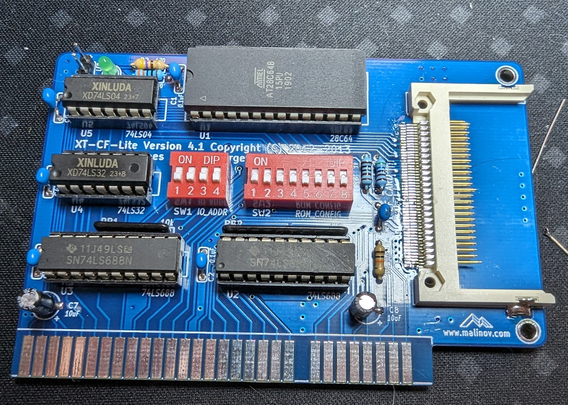

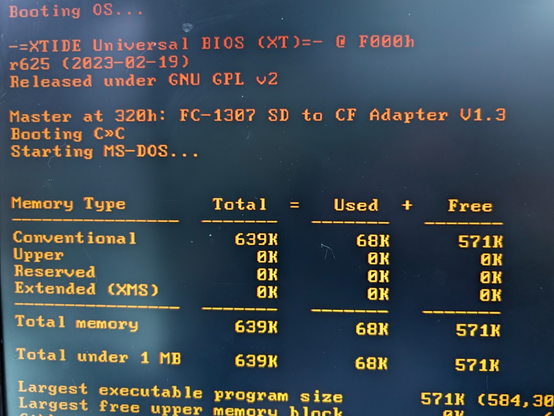

IT WORKS!!!! Micro 8088 booting from a XT-IDE-Lite board :) An amazing friend sent me an CF image so I can test as no FDD controller yet to boot. Video via Graphics Gremlin HDMI board.
Original vintage 8088 CPU, 640K of RAM and DOS 6.22 SD card drive image to test.
They came! Can't wait to get back to work on my Micro 8088 project 😍
ExPLITMy #Micro8088 von #skiselev (Sergey Kiselev). DIY IBM PC/XT build from new and NOS Parts.

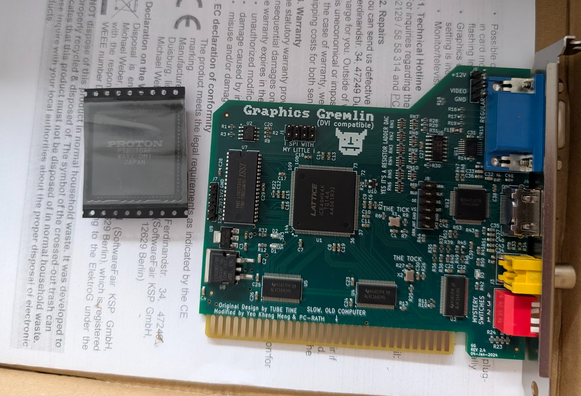

#GraphicsGremlin Card which converts CGA signal to more modern outputs like VGA and HDMI.
#retrocomputing is cool!
#GraphicsGremlin Card which converts CGA signal to more modern outputs like VGA and HDMI.
#retrocomputing is cool!
root42The PROTON PT8010F is a clone of the more widespread Faraday FE2010A. Both are basically XTs on a chip. Just add a CPU and DRAM, ROM and a bit of glue logic and you have got an IBM PC.
#retrocomputing #nuxt #micro8088
#retrocomputing #nuxt #micro8088
Got a genuine #Intel #8088
CPU and got a clip on heatsink for the #8087 math co-processor as was baking which apparent is normal for that generation.
Also kinda cool as I got an ISA dual COM port board from 1989, set IRQ and I/O lines and it came right up. This person paid money at the time to upgrade to 16550s I see with increased FIFO ! :D
Next up:
- Figure out why keyboard isn't working

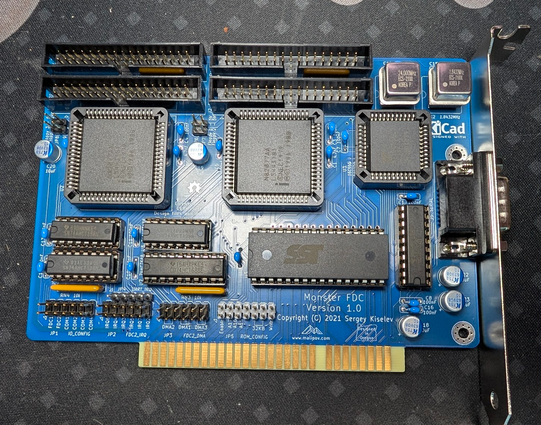

- Get a floppy disk controller soldered
Today's project; storage for the Micro8088! Hoping to try booting it soon with an actual OS 😊
FIXED IT!!!! Turns out of the 100s of pins I soldered for the ISA bus, there was a solder bridge on the backplane. Quick fix and it boots!!!!
#Micro8088 #VintageComputing #8088
Ok, had some time to try a couple different ISA video cards and both seem to show corrupt video. BUT I do hear the happy beeping from the board so I think it's booting? May need to reach out to forums for help.
#Micro8088 #VintageComputing #8088
