helpsterTee May 21, 2025

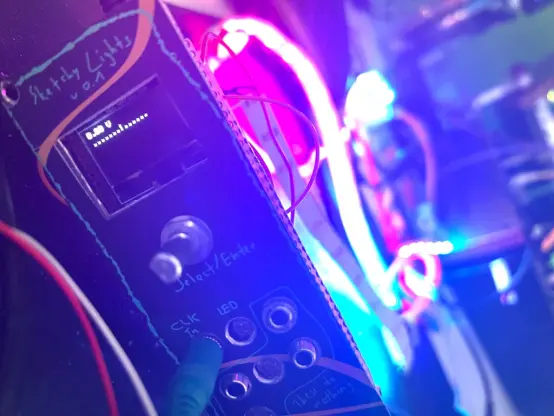

Rainbow vomit mode for the #eurorack established. That's the starting point I needed.

WS2812B LEDs controlled by FastLED on a Arduino Nano Every, external power supply. Needed a galvanic isolated USB connector to be safe, otherwise I'd have to disconnect the external 3.5A power supply for the LEDs everytime I upload a new sketch. The Nanos should have a diode to protect against this...but better safe than sorry.

Next on the roadmap are multiple lighting modes plus a CV-based colour changing scheme for ambient sets (note values influence colour). Another input for a transistor trigger input (I'm using CV for now). And the menu...will still take some time.

#diyelectronics #eurorackdiy

helpsterTee May 16, 2025

Seems I'll have rythmic lighting in my #eurorack case soon :>

...after I write all those damn algos to visualize it beautifully AND do all the menu work for the rotenc :(

But the CV detection works...next time I'll use a transistor.

#eurorackdiy #diyelectronics

helpsterTee May 15, 2025

Voltage divider seems to work, sinus is a bit wonky (used a VCO in CV mode), but I'm only using this for detecting trigger voltages, so it should be fine...

#eurorack #eurorackdiy

Uryan Modular Apr 16, 2025

🛠️🇺🇸🛠️

🛠️💞 customized 18U/168HP classical series eurorack case, 3 * Uryan Modular F-PWR PSUs with 12 filtered busboards, built in NoSpot LED light 💞⚒️

www.uryanmodular.com

#eurorackcase #eurorackmodularcase #modularcase #euroracksynthesizer #eurorackcases #euroracksynthcase #uryanmodular #uryansynth #uryanhardwares #eurorackdiy #eurorackdiycase #eurorack #eurorackmodular

Uryan Modular Apr 4, 2025

🦘🇦🇺🦘

🛠️💞 18U/168HP classical series eurorack case, 2 * Uryan Modular F-PWR PSUs with 8 filtered busboards, traveling soon to Australia 💞⚒️

www.uryanmodular.com

Thomas 🇪🇺Mar 31, 2025

Fertsch !

A bit proud on this. Cool little project to get the machines up and running again and all the software setup'd.

Frontplate GFK (from the copter department) with a lasered blue tape technique and a silver edding. Bit sloppy but looks ok.

Oh and it sounds great, zero noise etc and I've heard having the potis in reverse is kinda en vogue anyway. (Opa2132)

#eurorack #eurorackdiy #musodon

Thomas 🇪🇺Mar 27, 2025

Failed at designing a Eurorack module.

I tried making a Eurorack mixer module since it's a module I still need and thought how hard can it be? It's essentially the hello world of modules and it failed.

I used different potis than I originally planned via the schematic and it seemed I can't get around ordering new ones since these ones were meant for a digital Arduino project anyway. So I'm not entirely sure what happened but I only get controllable hum and no volume control.

At least I tried but it seems Ive no luck with electronics. Digital Arduino stuff works fine at least.

Will see might get back at it again or order the correct parts maybe :P

Doepfer A-138n will take the open position

#diyelectronics #eurorackdiy

Uryan Modular Mar 20, 2025

Spring Equinox Sale ☀️🌸🌓

www.uryanmodular.com

Default Media Transmitter Mar 10, 2025

I've published KiCad and gerber files for the bonkmix module for anyone who wants to make their own: https://defaultmediatransmitter.com/the-bonkmix/

#EurorackDIY

The Bonkmix

I made a bonkwave themed stereo mixer module for my Eurorack. The KiCad files are uploaded to https://codeberg.org/defaultmediatransmitter/eurorack. The parts list is at https://codeberg.org/defaultmediatransmitter/eurorack/src/branch/main/Bonkmix/README.md. For those who just want the gerbers, I've attached them below. I

Default Media Transmitter

Oleksiy Jan 6, 2025

It feels like this module was on my bench since forever, as I was constantly forgetting to order some parts for it (as you can see I'm still missing one knob for some reason). But I finally built it, and I must say that it's a great designed filter with a lovely resonance. Thanks a lot @Gogledd! Now I'm off to celebrate the successful build with a cup of Welsh tea that came with the PCBs

#eurorack #eurorackdiy #diy
