All in all, I have to say, #Grobpfottaster2Light worked way better than feared.
The batteries held up flawlessly, the button response time was very quick, no electronics pack died during the event, the wireless link was stable, the DMX worked also over longer cables and most importantly: people had fun :3

The wireless range was also surprisingly good. It only got spotty at around 2/3 of the tram length away from the receiver (depending on the amount of creatures inbetween).

And for having the idea on Sunday, developing the the code from Tue-Thu and building all of the hardware on Friday, the result was really nice :3

Thanks for reading ^w^
Here, have a bonus video of the almost finished system at 3am on the night before the event as a treat:

#FurryTramFFM

And it had only two bugs, that I had to fix live in prod / the tram :D

1) For some reason, the transmitting ESPs would lock up every 20-50 presses while trying to go to light sleep. So I just disabled it and reflashed all buttons. Now they'd draw around 20mA during idle instead of 0.5, but that's still low enough to last the whole event on a 280mAh LiPo.
2) The red "strobe" button had really bad switch contacts and wouldn't trigger reliably, so I had to remap it to the spare button.

Here's another video of the #Grobpfottaster2Light in action, with the fixes applied:

#FurryTramFFM

The receiver hardware consists of:
- ESP32 D1 mini board
- RS485 transceiver
- XLR socket
- Big power bank
- WS2812 LED ring I had laying around to debug the effects

It receives the button events via #ESPNOW, processes them to light effects and outputs #DMX to the RGB spotlights (and the WS2812 LEDs).

I finished putting everything in a stylish cardboard box at 7am on the day of the event and went to sleep :P

#Grobpfottaster2Light #ESP32

For the buttons, I built small electronic packs consisting of:
- ESP32-C3 Super Mini board
- USB-C lithium charging & protection board
- 280mAh LiPo battery

But I had to modify the two boards a bit to fit my use case.
- I replaced the cheap linear regulator on the ESP32-C3 with an actual LDO with under 200mV dropout under load (AP2112K). Otherwise the ESP wouldn't even run when supplied with LiPo voltages.
- Added USB-C 5.1k CC resistors to the charging board, so it actually charges from proper PD power supplies.
- Changed the charging current setting resistor to fit the LiPo capacity.

The ESP board also got a voltage divider to measure the input voltage and a JST socket for the battery.

I simply stuck the boards and the battery together using double sided tape, used the battery connector as a power switch and had two wires coming off the pack that go to the button.

And the pack got mounted inside the button by just taping it to the switch module inside.

#Grobpfottaster2Light #ESP32 #electronics

Also my first year as a staffer and had lots of fun helping with the pawpet show recording and generally helping out behind the stage.

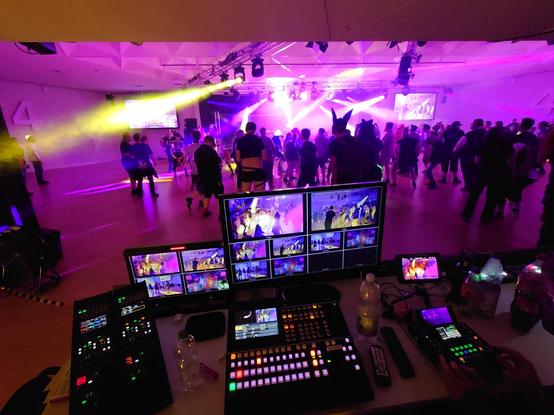

I dabbled in event lighting (LJ-ing), camera operation, video switching and general setup/teardown :3
