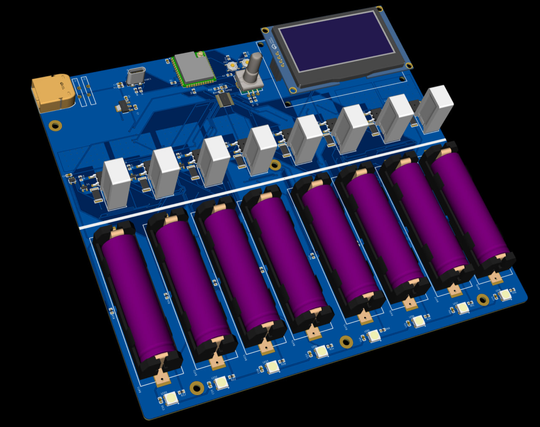

I think the new battery charger design is done. All the DRC rules check out. Now for the polish >_>
| Species | Labrador / Coyote |
| Hobbies | Electronics projects, working on car stuff, trying to escape harmful society |
ShadowLab
- 88 Followers
- 53 Following
- 1,061 Posts
Works as a repair tech, IT manager and facilities director. Always on the look out for a larger hat rack.

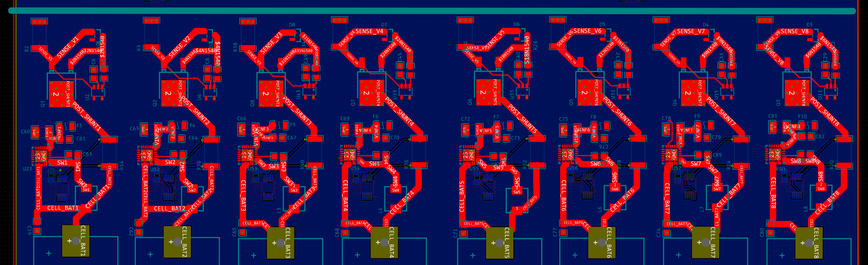

Charging ICs are so specific with trace length and such

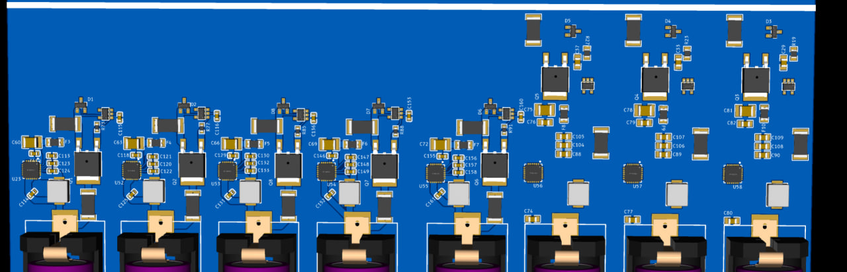

initial layout is on the right — wanted to give things to breathe, so to speak
Nope, too long. Rearranged things like the left and went a size smaller on the passives.
Beh.... the PCB production place I use doesn't support blind vias; Now I get to reroute all this to pass DRC checks >_>
