And this is the end of the exploration for me, I’m not hardware hacker enough to access the firmware, mess with it, or to get Doom running (which I’m fairly certain would run just fine on this hardware)
[Hot Item] 5inch LCD Screen Custom Printing Video Brochure

Color: Blue Design: Custom Design Material: Coated Size: Customized LCD Screen Size: 5.0inch Video Format: AVI, MP4 Format Video File

Made-in-China.com

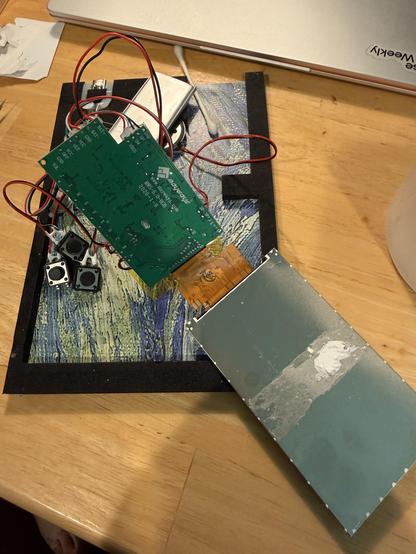

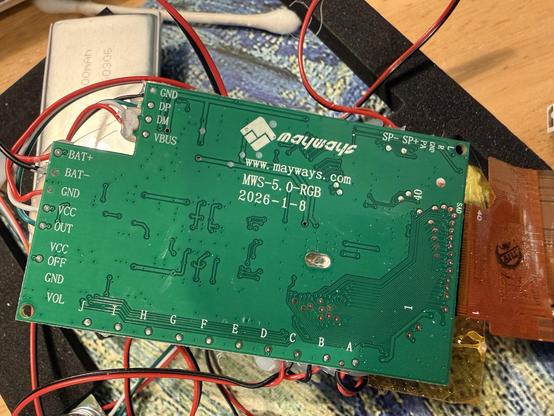

After some struggles to separate the delicate TFT from the SBC, I managed to free the board entirely, revealing the manufacturer and product model!

https://mayways.com/product/261.html

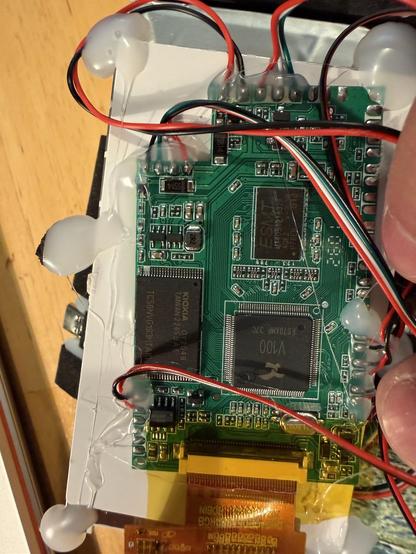

As for the chips, the v100 is likely the SOC, the Kioxia is 256MB flash I think, and the ESMT chip is handling audio?

Just guesses from some quick searches

@todb I hope they at least have the folks that clean the rooms do it? This item, at least, was left outside my hotel room
@da_667 I checked my NAS and it was the first thing I came across that would fit in 220MB 🤷‍♂️

OH, and the li-ion battery that absolutely should not go into the trash and will burst into flames if punctured.

Im betting 99% of these Cisco video pamphlets, like most disposable vapes, went straight into the trash.

The magnet on the right hand side turns the device on and off when a corresponding magnet in the cover makes contact with it.

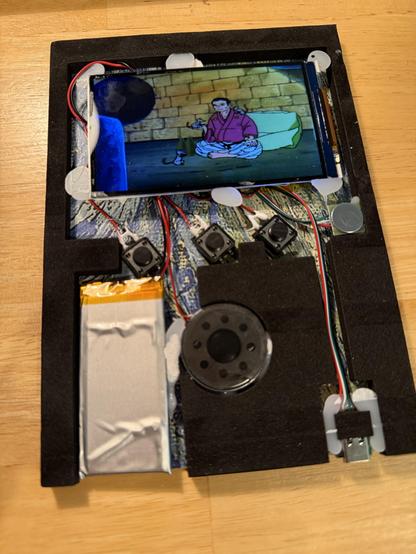

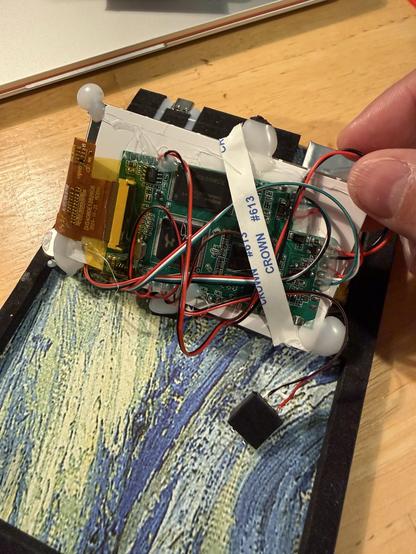

Pretty much what you’d expect, SBC with a lot of hot glue, a speaker, buttons, and the USB port.
