Mirror based POV 3d Display is now 8x faster.

Mirror based POV 3d Display with resolution of 192x192x144 at 8 fps.
The pixel pitch of led panel is 0.7mm, resolution is 192x144.🎉

https://www.youtube.com/shorts/nZLpd8_GFKU

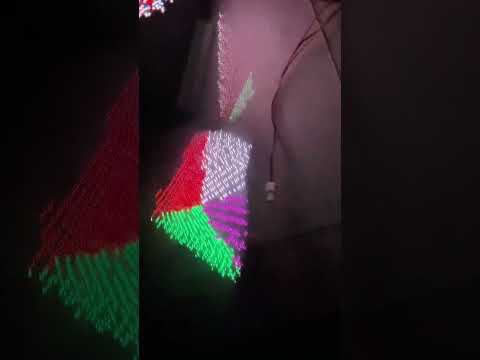

Can you find that the image is real 3D? MIRROR based POV 3D DISPLAY with resolution of 192x192x144.

YouTube

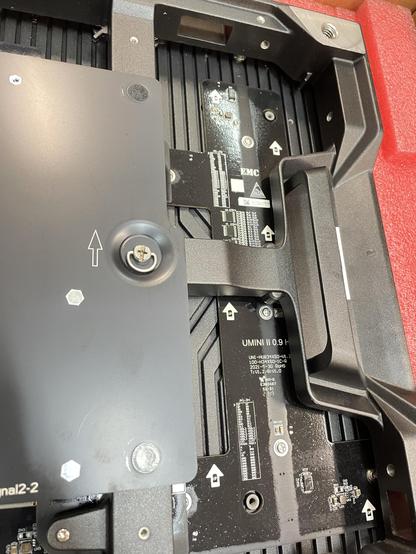

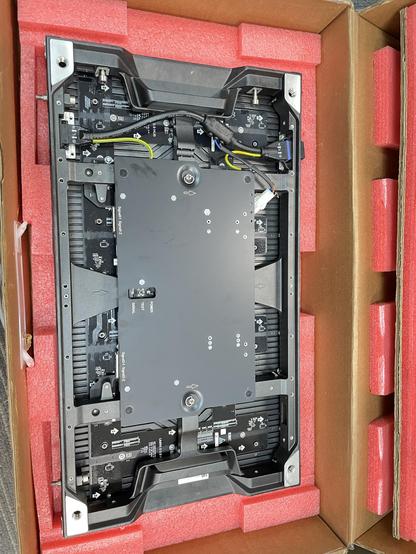

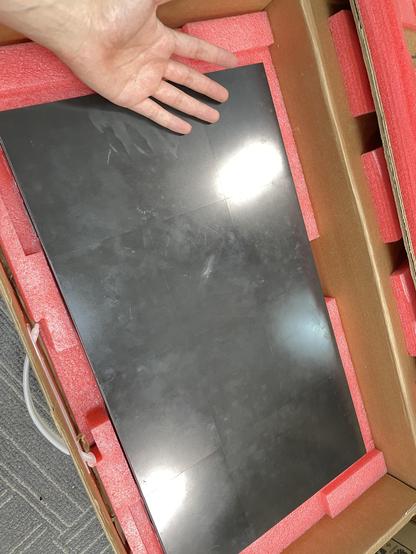

P0.7 Led Screen (768x415 by 4x3 small pieces) just arrived
Volumetric display by spinning mirror, showing a square tube, running at 4 fps.
Maybe I need high resolution led screen and a 3D printer to make a better demo.

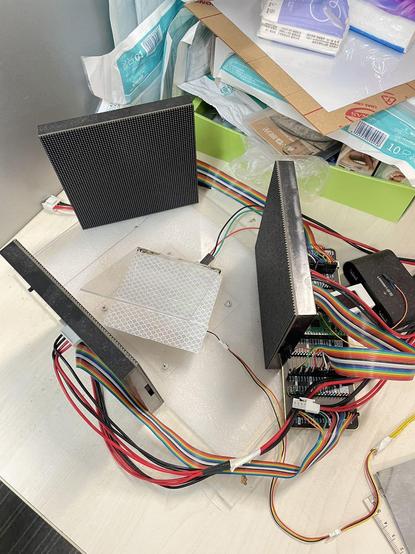

Mid-air volumetric display with cheap 3m reflector, so the 3d image shown in mid-air is not bright enought.

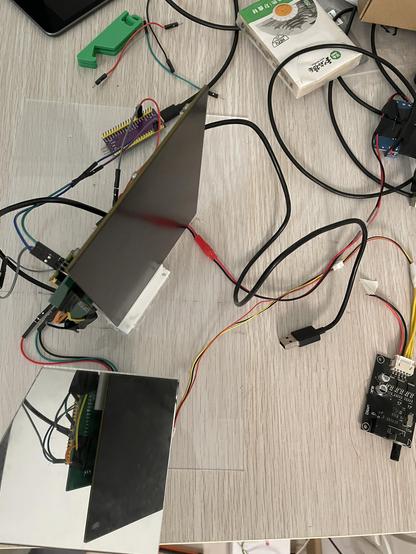

Idea of touchable 3d display!!!

The spinning mirror based volumetric has not been update for a few months. Recently I saw aska3d's midair display, and I think if we replace the spinning mirror with the aska3d-plate, the 3d image could be shown in the midair and became touchable but still with limited view angle.

Project detail: https://hackaday.io/project/194714-volumetric-display-using-rotating-mirror

Volumetric Display using Rotating Mirror

Volumetric Display by periodically changing the optical path with mirrors

Volumetric Display using Rotating Mirror

Volumetric Display by periodically changing the optical path with mirrors

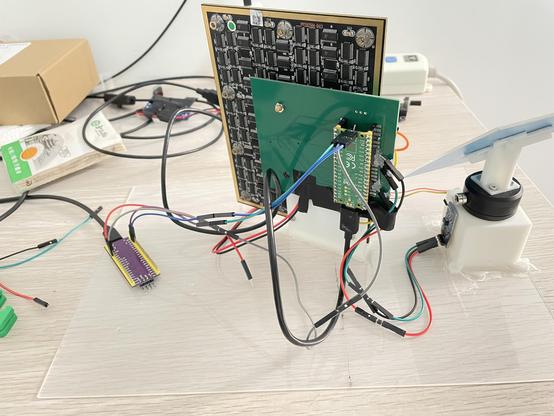

Yet another way to realize volumetric display.
It is a mirror that is spinning, not the led screen.
Powered by pi pico and rust.
