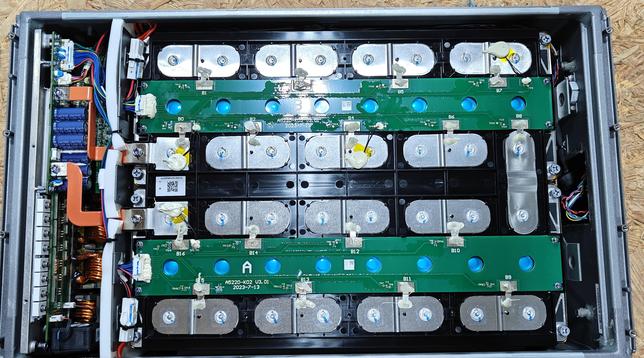

Battery pr0n for my peeps! The internals of an Anker Solix X1 battery module. There are 16 LFP cells, 48v nominal pack. But all that stuff on the left looks like a DC converter, so methinks this is like the LG RESU10H where they step it up internally so the external wires can be smaller.

Also the prismatic cells in here appear to be under compression. I still am baffled that LG didn't put the pouch cells in the RESU10H under compression - I've seen my share of deconstructed units from spicy pillow formation.

EDIT: Also I did not smell the sweet smell of lithium when I opened the sealed cabinet. This isn't always the case.
