My HexWord puzzle uses hex flowers and hex rings. A flower refers to the center hex and its 6 adjacent hexes, while a hex ring is just the 6 adjacent hexes without the center hex.
Anyway, I wanted a physically tactile feel to spinning the ring. Like a combination lock. Sticky at the notch. Free in transit. And magnetic (snaps home) as it locks.
#ilovemath #gamedev #indiedev #mathisbeautiful #sinwave #reactnative #puzzlegame #hexword

Show thread

Hani M

The solution turned out to be #math and #sin.
A full spin of the ring is 360 degrees, 2π, or 6.28 radians. Essentially, the number of degrees measured in radians.

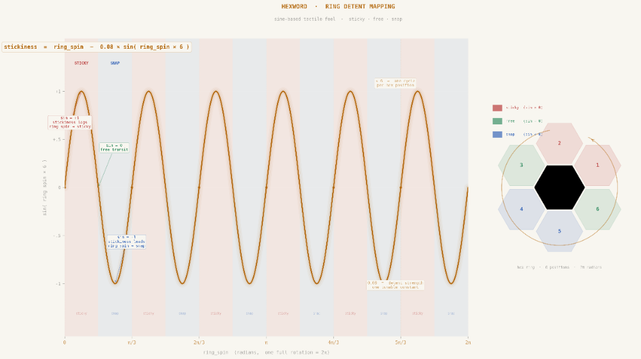

So the formula would become: stickiness = ring_spin - 0.08 * sin(ring_spin * 6)
We get a sine wave per hex position (ring_spin * 6), so the sine wave rises and falls for each hex. If we did not multiply by six, the sine wave would affect one entire rotation.

Show thread

Hani M 3d ago

Here, 0.08 is the detent strength, or how quickly it snaps into place. This is a tunable variable to get the right feel.
So as sin rises to +1, stickiness lags ring_spin and it feels sticky. As sin returns to 0, the ring spins freely. As sin falls to -1, stickiness lags ring_spin and it snaps home.
https://hexword.mubergapps.com
#ilovemath #gamedev #indiedev #mathisbeautiful #sinwave #reactnative #puzzlegame #hexword
