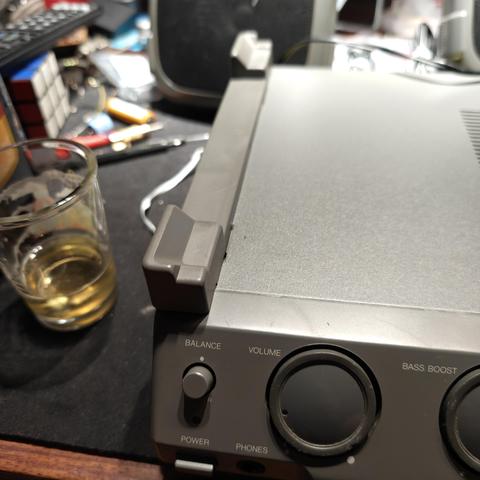

I am missing the plastic stand-off on one side. Let's hope it is still in my uncle's suitcase or at home in HK. But if not, I am sure someone could take this and make a 3D model of it so I can print one. *nudge nudge* *wink wink*. Not sure if this is for the cdrom² suitcase or for Duos.

I am missing the plastic stand-off on one side. Let's hope it is still in my uncle's suitcase or at home in HK. But if not, I am sure someone could take this and make a 3D model of it so I can print one. *nudge nudge* *wink wink*. Not sure if this is for the cdrom² suitcase or for Duos.

Fits like a glove. So it is for the interface unit suitcase. I guess they need the extra height so the vents have enough space to get rid of the heat. #pcengine #PCエンジン

There is no video pass through, it only takes RCA plugs for audio. So if I want to use it with an RGB modded #pcengine, I will have to make a special cable with the audio split. It does have pass-through 110V. #PCエンジン

Once opened up, we can see there are a lot of caps in this thing. They still "look" OK. The power button (most left side) construction seems to be a bit of a over the top design. #pcengine #PCエンジン

Checked the auction. My uncle didn't leave a piece out, it was already missing from the auction. For those who are interested, I won the auction for this at ¥32450 (€192). After shipping, etc it came down to about €222. #pcengine #PCエンジン #yahooauctions

Making a cap map before I do the re-cap. Make sure I have all the caps before I start. #retrorevival #retromodding #pcengine #PCエンジン

Finished the cap map, shared in a new post and uploaded it to consolemods wiki. I don't have all the needed caps, so shelving the AMP for now. Have placed an order for the missing caps.

Caps arrived. Removed all the old caps first. Big ones were glued, but fortunately not very hard to get off. Used an xacto knife to cut the glue a bit, then removed the solder from the holes. While heating one of the points gently bend it until it comes off, switching sides if nessecary. #pcengine
