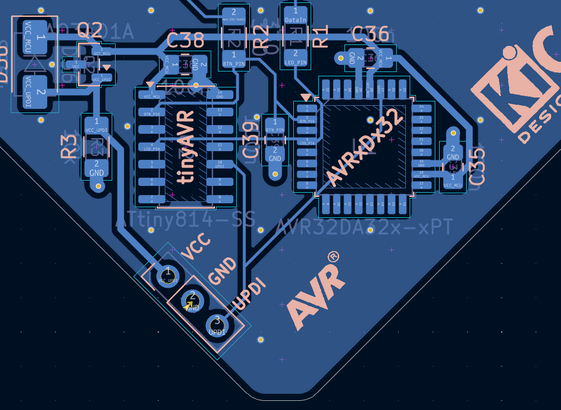

I designed another PCB... Small preview without revealing what it will be. It'll arrive mid January, though.
They will be manufactured by @aislerhq again, using the 20% December discount for using their #KiCad plugin.
It'll have the option to use an AVR DA compatible #microcontroller or a #tinyAVR one - I added options for both that I have in stock (AVR32DA32 and ATtiny814). Since it won't use many pins, I could have used smaller variants, too.
#AVR #AVRDA #ATtiny #pcbdesign #kicad #aisler #pcbdesign

Show thread

Rommudoh

Here are the boards! I soldered a first one by hand, but the #WS2812B #LEDs are very close to each other. So some have burn marks. Hot air is no option, it would burn them up. So, I bought a hot plate and tried again. It's so much faster and easier! And it worked directly after #soldering.
I only need better solder paste, this one was difficult to clean.
#ATtiny814 #diyelectronics #heart #neopixel
