Three new boards for my #StackSynth arrived from @aislerhq yesterday. They are buffer, #ADSR, and #VCO. The VCO is the first with #SMD components on the bottom side. Two resistor values are missing in my SMD collection: 30k and 68k. I already soldered the ADSR and tested it. The buffer will follow tomorrow.
#diysynth #soldering #synthesizer #envelopegenerator
Mar 15, 2025 at 3:32pmWeb
Show threadRommudohMar 16, 2025

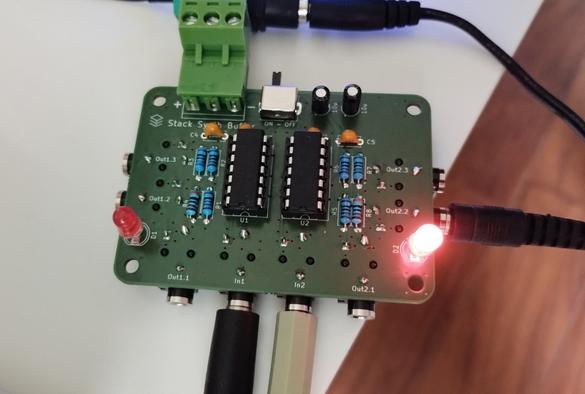

As announced, I finished the buffer today. Also, I soldered all #SMD components to the #VCO board that I already had. The two missing resistors will follow when they arrive.
It was fun and went better than my previous attempts, since I used a smaller tip.
#diysynth #StackSynth #soldering #synthesizer
Show threadRommudohMar 17, 2025
Finished #soldering the #StackSynth #VCO after the missing resistors arrived today. The tuning knobs are a bit close for my taste. The next revision will have a wider gap between.

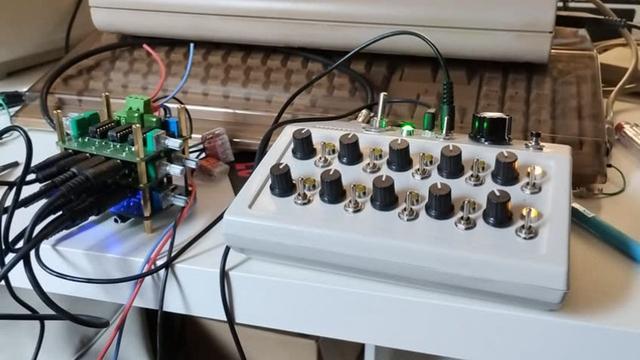

After tuning it to roughly 1 Volt per octave, I tried it with my #sequencer. The test setup only included VCO, LFO, and mixer, though. The VCA will be the next board.
https://makertube.net/w/xwhPj4tAb2BdmPDmQuVakv
#diysynth #synthesizer
StackSynth VCO test
