I think I have decided on the layout for the top part, with the inputs and outputs, power switch, and step selector. I still have to wait for the proper power switch to arrive, but this should work out.
#diysynth #electronics #enclosure #synthesizer #sequencer

All holes have been drilled and components inserted, except the LEDs - have to decide on the color first.
After that I'll have to wire it all up.
And then, when the PCB arrives, solder that up and plug everything together.
Still, it's a nice feeling to hold it in my hands like that and fiddling with the controls.
#diysynth #diyelectronics #electronics #synthesizer #sequencer

First wires soldered. For future projects, I'll design a common power bus. But I'll stick with this now.
All potentiometers and switches for the ten steps have been wired.
#diysynth #electronics #sequencer #soldering

And it's done. All wires that had to be soldered are soldered. What a mess. In German we have a word for that: "Kabelsalat" (cable salad).
My black wires are empty now.
The power switch has screw posts, so I have to crimp some shoes on the cables. Next is tying them together and crimping the connectors on the other ends of all the wires -.-
#soldering #diysynth #electronics #sequencer #cablemanagement #kabelsalat

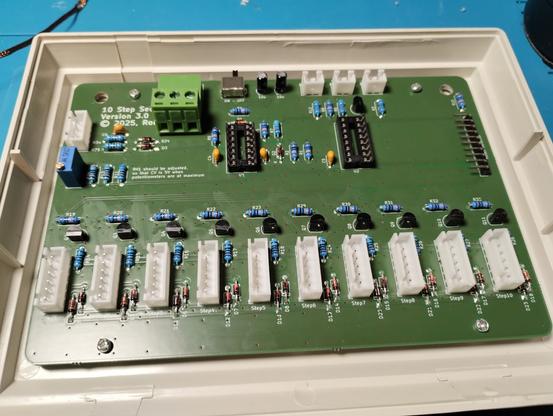

Next step finished: #soldering the #pcb that arrived this week.

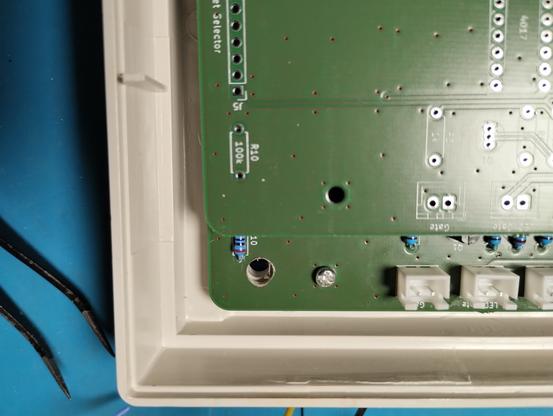

I had to drill two holes that I forgot to add to the boards. But there was only the ground plane at that position.
Again, they were manufactured by @aislerhq
#diysynth #sequencer #electronics

All the wires have been crimped! This was very tedious and repetitive. But after the first few done, it went relatively smoothly.
I only had to make two wires longer.
Connector list:
- ten six-pin JST
- three two-pin JST
- one four-pin JST
- one ten-pin DuPont
It looks very cramped, but it works!
The steps are ordered columns first, like this:
1 3 5 7 9
2 4 6 8 10
Else, I would have needed to make more wires longer.
#diysynth #sequencer #electronics #crimping #cables

Here is a very short demo of it running: https://makertube.net/w/vhcj3qHZpamenkKDTDe1xu
It will be a lot nicer when I add VCA and envelope generator. This is really just a basic function test.
