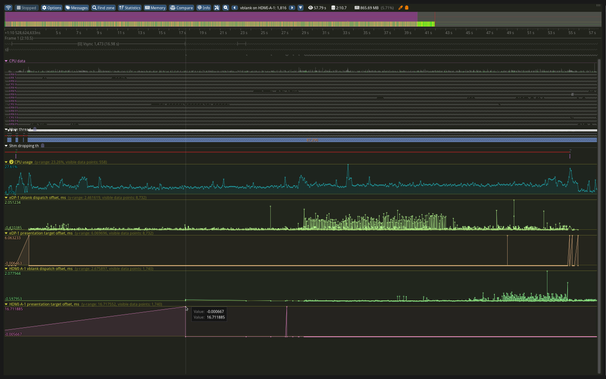

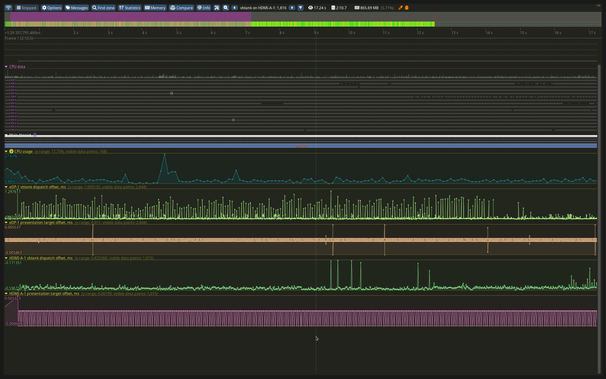

Thought of another thing to plot in Tracy: target presentation time offset! This is the difference between when a frame was shown on screen and the target time that we were rendering for.

Here you can see data across 17 seconds of runtime while recording with OBS. Offset on both monitors fluctuates within a few microseconds around zero, which means that our rendering lands right on time.

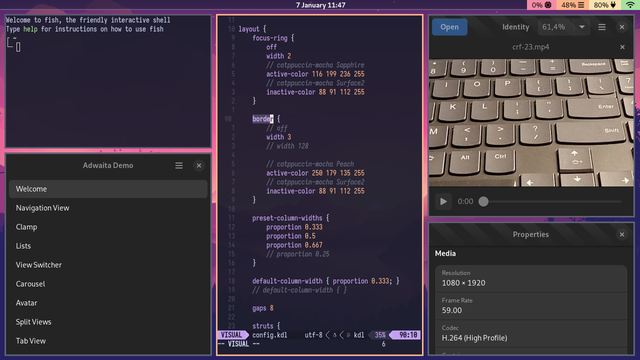

I'm still working on niri btw (and using it myself too). Today I finally finished a window layout refactor that was due from very early on.

Now the layout always works correctly, with all the paddings, struts, fullscreen windows and animations. It's tricky because while most of the logic operates only on the "working area" (view excluding struts), fullscreen windows in particular must cover the entire view area, while otherwise acting as just another regular window column.

niri development is ongoing, getting a lot of help from kchibisov too.

Today I implemented an interactive area screenshot capture tool. Almost like a mini screenshot UI

Decided to make a new demo video for niri, finally. The last one was so old that niri didn't even have cursors implemented, it showed an orange rectangle instead. 🫠

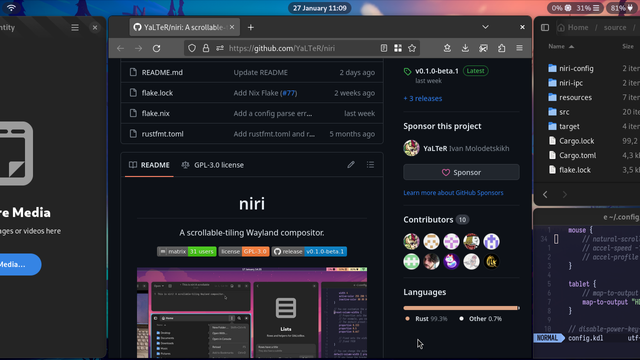

Here's the link again for the curious: https://github.com/YaLTeR/niri

Very happy I've come this far writing my own compositor from scratch. Honestly thought my motivation would only last for two weeks max, but here we are.

Learned a ton in the process, and now this experience helps me with Mutter & Shell profiling.

#rust

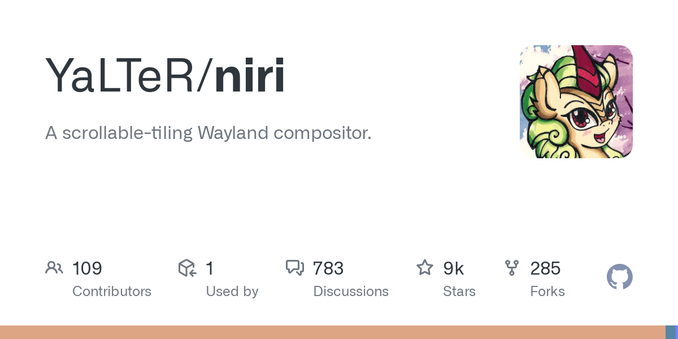

The development pace had slowed down a little, so I've tagged an alpha release for niri: https://github.com/YaLTeR/niri/releases/tag/v0.1.0-alpha.1

Also made a COPR for the occasion, if you're on Fedora: https://copr.fedorainfracloud.org/coprs/yalter/niri/

A month has passed and a number of important additions have landed in niri, so here's a second alpha release: https://github.com/YaLTeR/niri/releases/tag/v0.1.0-alpha.2

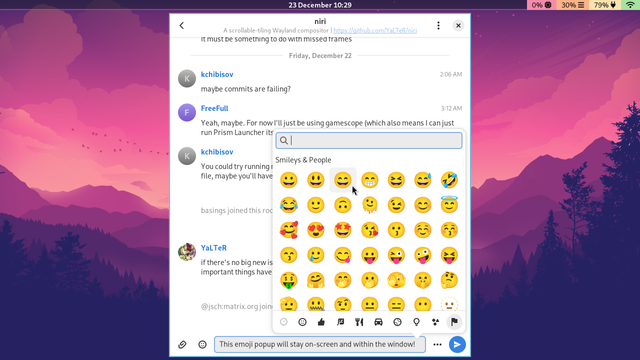

Highlights include relative-pointer and pointer-constraints which let Xwayland masterfully handle 3D games mouse look, and popup unconstraining which prevents popups from opening off-screen. I actually made popups place within their window with some padding, which looks quite nice.

#rust #wayland

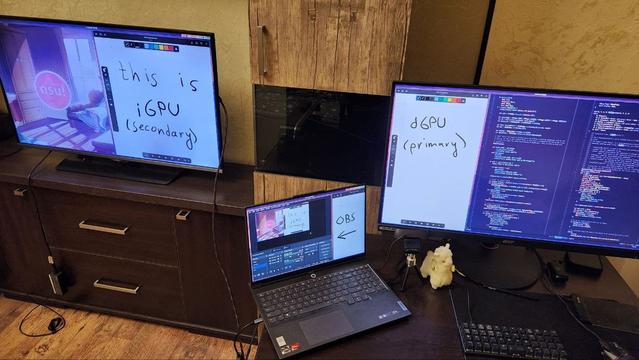

Aaahhhhhh another difficult refactor down and niri now does multi-GPU! By which I mean that monitors plugged into secondary GPUs will now light up and work. All the screenshot UI and screencast portal stuff also works just fine. Wouldn't be able to do this as quickly without Smithay's MultiRenderer support and lots of help from @drakulix 😄

I went for the easier strat of always rendering on the primary GPU, but you can also pick render GPU dynamically, which apparently cosmic-comp does, cool!

Tagged niri v0.1.0-alpha.3 with multi-GPU support, borders and other improvements! Multi-GPU was one of the bigger things I wanted to get done before going out of alpha so I guess I'm slowly getting there.

https://github.com/YaLTeR/niri/releases/tag/v0.1.0-alpha.3

Turns out that if you implement xdg-decoration in your compositor but tell clients that you want CSD, then SDL2 + libdecor clients will break due to a bug. The bug is already fixed, but the fix hasn't made it to any SDL2 release yet, let alone all the runtimes and vendored copies.

Hiding xdg-decoration from clients it is then

#wayland #sdl

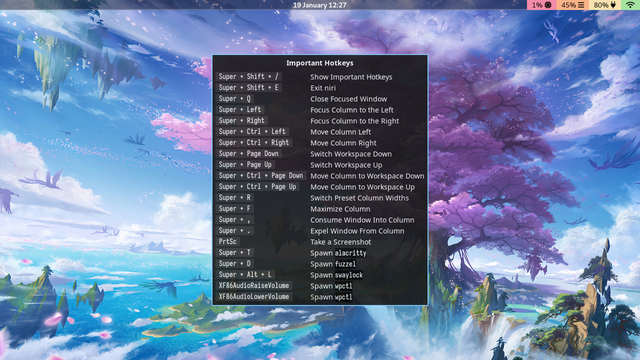

I added text rendering to niri using pangocairo, which turned out to be surprisingly simple. It basically "just worked". This unlocks a lot of features, beginning with a hotkey overlay, which should help people get started (suggested by @ju).

I've tagged niri 0.1.0-beta.1 which includes the overlay along with many more improvements: https://github.com/YaLTeR/niri/releases/tag/v0.1.0-beta.1

I'm now happy enough with the feature set so in a week I'll release 0.1.0. Time to finally catch up on other projects I've been neglecting.

Well, I'm happy to release the first stable version of niri, my scrollable-tiling compositor: https://github.com/YaLTeR/niri/releases/tag/v0.1.0

Very satisfied with the current state, even though there's plenty left to do. Took a lot of time and work but I've certainly learned a lot, and I'm glad to have contributed a bit to Smithay too!

#wayland #rust #smithay

Before adding more animations into niri, I'm making a "visual tests" application. It shows a set of hardcoded scenarios which I can quickly go through and visually check that everything looks right.

It uses solid color rectangles as "windows", but otherwise this is the real niri layout code and real niri + Smithay rendering code, drawing to a GTK GL area.

For example, on the last test you can see that my offscreen code currently clips CSD shadows (during the open animation).

The window opening animation is now live as part of niri v0.1.2: https://github.com/YaLTeR/niri/releases/tag/v0.1.2

I'm really looking forward to more animations, but wow they sure do need a lot of care to get right in all the edge cases.

Also, I added a way to programmatically invoke compositor actions, and turns out that's quite useful for making video demos!

#wayland #rust #smithay

Tagged niri v0.1.3: https://github.com/YaLTeR/niri/releases/tag/v0.1.3

This one has much improved touchpad gestures with inertia, springs, rubberbanding and everything else I copied from libadwaita, my primary source for things that feel good

Also thanks @alice for helping and giving feedback on the gestures and for giving a try to the touch support!

#wayland #rust #smithay

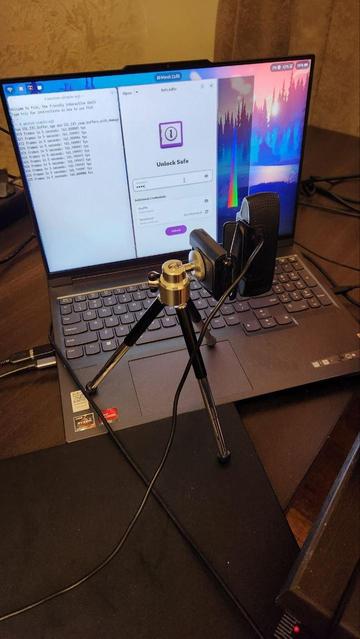

Implemented this idea. It means rendering each monitor 3 times always for the screenshot but maybe it's fine? On this laptop 3 monitors × 3 renders takes 2 ms, and there's some unnecessary blocking I forgot to remove.

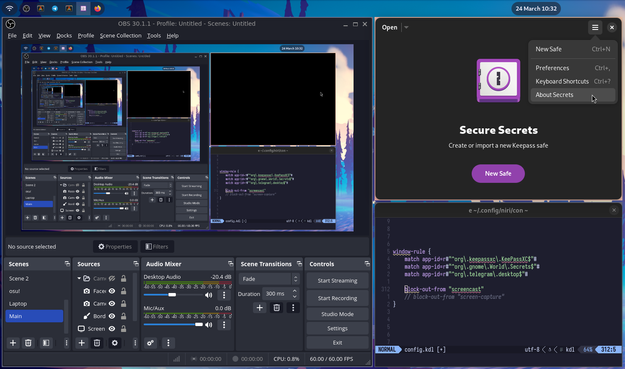

On the video, note how for me the screenshot UI has Secrets visible, but on the recording afterwards it's always blocked out.

Amidst all the fires being put out, niri 0.1.4 which can block out windows from screencasts! https://github.com/YaLTeR/niri/releases/tag/v0.1.4

And also gamma control, focus follows mouse, warp mouse to focus, wheel and touchpad scroll bindings, xdp-gnome 46 support.

Also, every single config option is now documented on the wiki! Which took like an entire week of work (even though I was reusing a lot of my previously written docs in the config). Check it out here: https://github.com/YaLTeR/niri/wiki/Configuration:-Overview

#wayland #smithay #rust #niri

Took the whole yesterday and a bit of today, but I've got window closing animations working! These turned out to be tricky because they need storing a snapshot of the surface render tree to draw once the app is gone.

Some apps may start destroying their subsurfaces before the main surface, like alacritty with its sctk CSD, making it very easy to miss parts of the window in the snapshot, and therefore in the closing animation.

Also, windows closing to the left no longer shift the view!

#niri

Definitely one of the most complex animations yet: window resizing.

Just the crossfade effect itself took a while to get working with all the window geometries and buffer offsets, and then there's the whole multiple window orchestration with Wayland's asynchronous nature. (I don't do animation transactions yet, that'll be a whole other level of complexity on top.)

Happy with the result though, and it's cool that it seamlessly works with block-out-from screencast.

#niri

Window movement across columns is now animated too!

These weren't complex per se, but very *finicky*. Spent quite a bit of time chasing down all the offsets and coordinates to add and subtract to avoid jumps, but it seems to all work well now!

#niri

All the animations, plus VRR, today in niri 0.1.5: https://github.com/YaLTeR/niri/releases/tag/v0.1.5

I also remade the demo video to showcase the animations and some of the newer features!

#niri #smithay #rust #wayland

Another tricky feature, rounded corners! Took several days, but I believe I've got a pretty complete implementation.

You (manually) set the window corner radius and whether to force-clip the window. You can set radius per-corner to match GTK 3 apps. It works correctly with subsurfaces, blocked-out windows, transparency, gradient borders, resize and other animations.

Optimization-wise, opaque regions and even overlay plane unredirection work where possible!

#niri #smithay

Added (stole from GNOME Shell as usual) a screen transition action, so now I can finally switch between dark and light in style

(of course, it works with blocked-out windows)

#niri

Okay, time for an actually useful feature: interactive mouse resizing (yes, finally). This was, as it goes, quite fiddly to implement, especially since niri has to negotiate with the window during the process.

I also added a double-resize-click (i.e. trigger a resize twice quickly) gesture to reset the window height or to toggle full width. Suggested by FreeFull on our Matrix and worked out very well! Really starting to feel quite nice with mouse.

(still no transactions yet)

#niri

Since I'm in a mouse gesture mood today: hooked up the horizontal touchpad swipe to Mod + middle mouse drag and omg it feels so good with the spring deceleration and all

(of course it also correctly avoids the touchpad scaling, so that when using the mouse gesture, the cursor location is always exactly anchored to the view position)

#niri

Now for something fun. I'm experimenting with the ability to set custom shaders for animations. Today I added custom shader support for window-close, which lets me make this cool falling down animation!

This is entirely optional of course, and there's no performance impact if you don't use it. Also, custom shaders, like the rest of the niri config, are live-reloaded, making it easy to play around with them.

#niri

Been fixing quite a bit of interactive resize jank and other small stuff since the last time, but also added custom shader support for window-open, thus completing it for all three main window animations (open, close, resize).

Now I didn't actually have any good idea of what I might want in a window open custom shader (I like the default), so I made a simple expanding circle animation to showcase it.

#niri
