I’ve been rebuilding a #RaspberryPi installation that supports my classic Mac habit 😄
I used to use the awesome #MacIPGW image which includes a ton of pre-configured software like #netatalk. But it hasn’t been updated in a while so I used it as excuse to start from scratch.
I used this Pi Zero W as my starting point. HDMI video stopped working on it for unknown reasons. I added an Ethernet/USB hub hat and a #TashTalk 2 hat for #LocalTalk devices.
One reason for rebuilding netatalk is I wanted to run TashRouter on the same machine. It’s doesn’t work right on the MacIPGW image because of the “split horizon” patch.
I can now freely use AppleTalk devices on EtherTalk, LocalTalk (PhoneNet!), and LToUDP (Mini VMac). This enables, for instance, printing to an ImageWriter II from my modern Mac running System 7.5 in Mini VMac! (There were lots of bugs to resolve to get the ImageWriter II working!)
One piece that's missing is AURP aka #GlobalTalk support. I'd like to avoid running a VM and have something more lightweight.

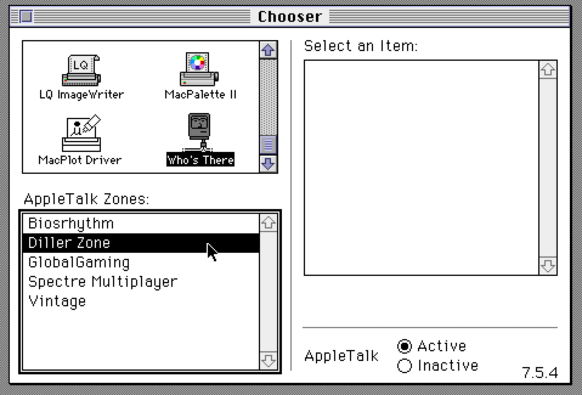

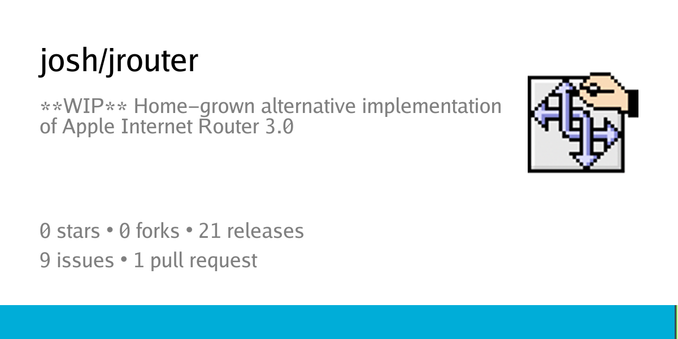

Luckily @DrJosh9000 has created jrouter which comes very close to accomplishing this! Remote zones are showing up but are all empty and not sure if my zone is visible outside. I need to play with some settings some more I think. But soooo close!
With netatalk, a TashTalk hat, TashRouter, and CUPS on the Raspberry Pi, we can do clever things like share a #ImageWriter II printer over #LocalTalk with an iPhone using AirPrint!
This screenshot was printed from my phone to the ImageWriter II.
Interestingly, this was just fixed in the latest netatalk 2.3.2!
#LiveLaughLocalTalk #RetroComputing #VintageApple #VintageMac
In the interest of science, I did an ImageWriter II comparison print of CUPS vs the MacPalette driver for Classic. I think MacPalette wins here. There appears to be better color range and the text is a little sharper.
#RetroComputing #VintageApple #VintageMac #LiveLaughLocalTalk #ImageWriterII

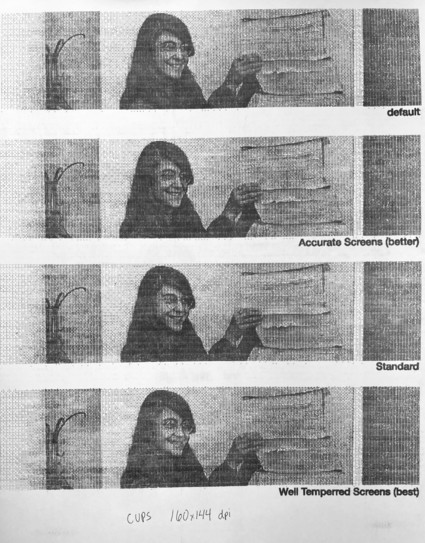

I lifted some halftone settings and stuffed them into the ImageWriter II foomatic PPD and did some test strip prints.
At both resolutions, the result seems to be the same? So maybe that’s not the setting I need. Maybe it can’t be changed? MacPalette II still wins here!
Ok #AppleScript folks: how do you make MacOS 9.2 automatically print a PDF that appears in a specific folder?

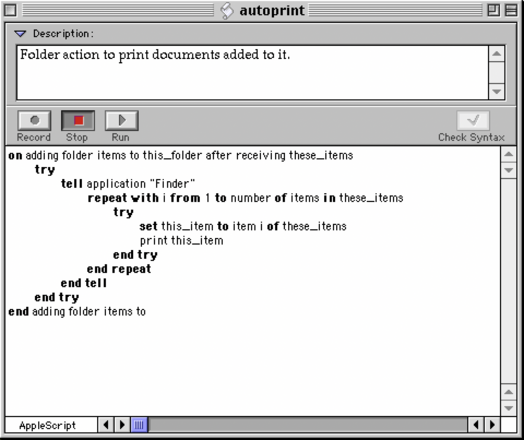

So I have a new MacOS 9.2.2 #AppleScript Folder Action attached to a network share via netatalk. It works only if these conditions are met:
1. The folder is open already in the Finder. If it’s closed, it never triggers.
2. The new item is added to the folder from the current machine. Items added remotely to the network share do not “refresh” therefore never trigger the action.
Is this expected?
Ok, I've abandoned Folder Actions as it just doesn't seem to work. I've now gone with an always-running #AppleScript to scan the folder.
And.. it works! Almost? It seems that MacPalette II crashes (and takes Acrobat Reader with it) after it completes a print and there's a finder dialog that's proving difficult to dismiss in AppleScript.
The way it works is this:
1. A print is initiated from a device to the CUPS-PDF driver on my #netatalk Raspberry Pi.
2. The resulting PDF is placed in the AFP share of netatalk/afpd.
3. An emulated PPC Mac 9.2.2 running the #AppleScript below is watching for new files in that folder and will print them using Acrobat Reader to the #ImageWriterII via #LocalTalk using the MacPalette II driver.
It works, but crashes with dialog that I can't auto-dismiss.
Ok, so this centipede printer workflow isn’t really reliable so I dove into CUPS to try and see if there’s a way to alter the dithering.
I tried adding different settings to the PPD file but nothing produced any changes.
Until I added “DitherPPI” (a GS option) and it produced a result that was pretty good! I tried various values (30, 80, 120, 180) but they all looked identical. In any case, this is good enough for me!
#ImageWriterii #RetroComputing #VintageApple #VintageMac #netatalk
As promised, I wrote a blog post about creating my own classic Mac support server using a Raspberry Pi Zero, a TashTalk 2 hat, netatalk, and a few other tools. It's very much like MacIPRpi with everything current.
https://biosrhythm.com/?p=2791
Boosts appreciated!
#RetroComputing #VintageApple #VintageMac #netatalk #MacIPRpi #MacipGW
I was able to tweak the output of the ImageWriter II prints from CUPS to be slightly better. I've updated the blog post.
This animation shows the simulated output of CUPS ImageWriter II DitherPPI setting approximately from 2 to 31. After that, it changes to a more posterized dither and is the same for any larger value. You can see the dithering dots start very large and shrink down with each new value.
@ChartreuseK Interestingly, adding the DitherPPI setting for GhostScript says
"forces all devices to be considered high-resolution, and forces use of a halftone screen or screens with lpi lines per inch, disregarding the actual device resolution. Reasonable values for lpi are N/5 to N/20, where N is the resolution in dots per inch."
I tried several DitherPPI settings without any change.
@billgoats In theory yes. System Events is supposed to do that, but I can't seem to summon it, even on this fresh MacOS 9.2.2 + AppleScript 1.8.3 install.
To get keystrokes to work, I had to use to "Sigma's Additions" OSAX and use the "type text" command (that's all it has).
@paulrickards @billgoats and Return/Enter or ESC don’t work to dismiss the dialog?
FYI, I abandoned CUPS-PDF, and set up an ippeveprinter for generating PDFs - this removed the incompatibility I was seeing with LW8.1 clients when printing to PDF.
@europlus @billgoats No, the script hangs when the error dialog appears so it's not possible to continue.
Good to know about the CUPS-PDF driver!
@paulrickards In the Finder, select the folder, command-click, choose “Attach a Folder Action…” from the contextual menu
System Folder > Scripts > Folder Action Scripts has some samples on how to handle added files. You probably want to tell the finder to print the added items.
@Cdespinosa @timjclevenger I'm using Acrobat Reader 5.0. It doesn't seem to have an AppleScript dictionary though.

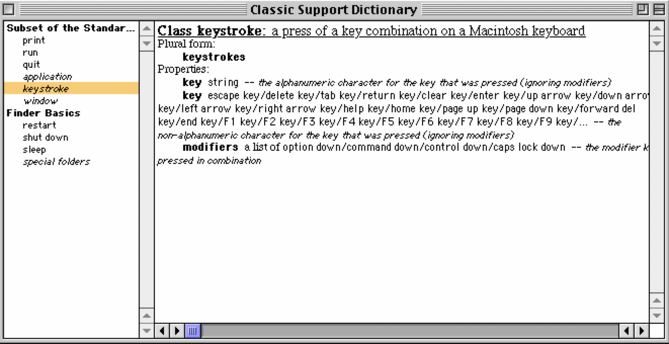

I did find that "Classic Support" has an AppleScript dictionary that includes "keystroke" but I can't figure out the proper sequence for sending a return.
@gaj They're available now!
https://maceffects.com/products/apple-imagewriter-ii-color-ribbon-cartridge
@DrJosh9000 @paulrickards I’m looking forward to trying it when my life settles down after this week.
Much as I’ve enjoyed getting the QEMU stuff working and it’s been really stable recently, I’d like to be a bit more sensible in my setup.
