Pedro LamasFinally started building my first Voron 3D Printer: a Trident 300 kit by LDO Motors!
Voron Trident build progress: motors in, X gantry in... Next up: belts!
Voron Stealthburner + Clockwork 2 + E3D Revo (routing those wires has been one of the hardest things I had to do so far...)
#Voron #LDOMotors #Fluidd #Klipper #3DPrinting #3DPrinter #E3D #E3DRevo
Bottom panel and din rails are in!
Now that is a lot of wires!!
Stealthburner ready, with Chaoticlab CNC Voron Tap assembled!
#Voron #LDOMotors #Fluidd #Klipper #3DPrinting #3DPrinter #Chaoticlab #VoronTap
Had to repin the Chaoticlab CNC Voron Tap cable, as the LDO Toolhead PCB has 24V-S-GND instead of S-GND-24V
#Voron #LDOMotors #Fluidd #Klipper #3DPrinting #3DPrinter #Chaoticlab #VoronTap
The wire loom is now connected to the toolhead and inside the drag chains!
Print bed is in place, wiring is now complete!
First boot successful! 🙂
#Voron #LDOMotors #Fluidd #Klipper #3DPrinting #3DPrinter #BigTreeTech

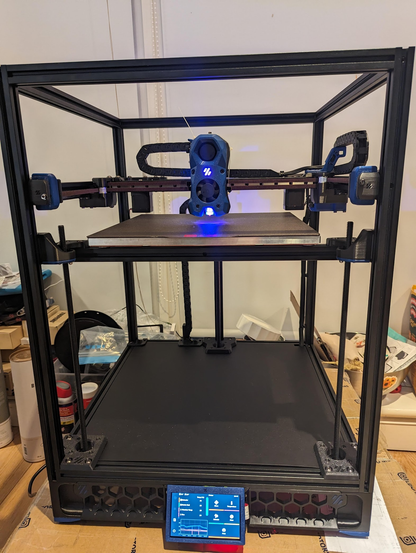

And... it is is ready!! 🤩
Now starts the time to configure and calibrate everything!
If you've been following along this, I thought it is worth now to post some thoughts after configuration and calibration and a few prints! 🙂
First, it took me a few prints until I realized there was a protective film on the smooth PEI side of the build plate that we are supposed to remove... 🤦♂️
Second, I was having really bad 2nd layers for no apparent reason... thinking it was me just hitting the max flow rate of the Revo 0.4 nozzle, I ordered a new Revo High Flow 0.4 which arrived this morning... my surprise was when I removed the old one and it was "blue", which means... 0.6! 🤦♂️
Mawoka@pedrolamas
Everyone has these moments. I had sth similar: I wanted to calibrate the extruder, but instead change the rotation distance for the x-stepper and it took me a week to find out why the circles turned oval.
Everyone has these moments. I had sth similar: I wanted to calibrate the extruder, but instead change the rotation distance for the x-stepper and it took me a week to find out why the circles turned oval.
Siff@pedrolamas Ask me when I printed with PLA, thinking that it was a PETG…
amd@pedrolamas looks great! Enjoy it. Six months in and my trident is easily my favorite I’ve had a chance to use.
@amd thank you! Granted the point of this is to print ABS, but I do wonder how bad PLA prints inside of this thing... Guess I need to at least leave the door open when I do that! 🤣
@pedrolamas mine prints PLA like a champ with the doors open and the roof off.
I added the filament snap latches to the roof to make it easy to take on and off.
@amd got a link for that?
I’m not a fan of the stock panel clips.
I use the filament snap latches for the roof and front doors https://www.printables.com/model/172368-voron-24-filament-latch-or-any-2020-extrusion
and these annex engineering panel clips everywhere else https://github.com/Annex-Engineering/Annex-Engineering_User_Mods/tree/main/Printers/All_Printers/annex_dev-Panel_2020_Clips_and_Hinges
