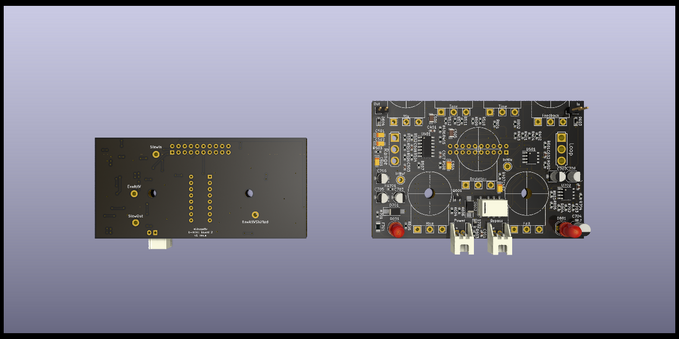

flpvskWIP enclosure design for a delay pedal. Still not sure if I can fit all the features into the 1590BB. Certainly hope that color is available!

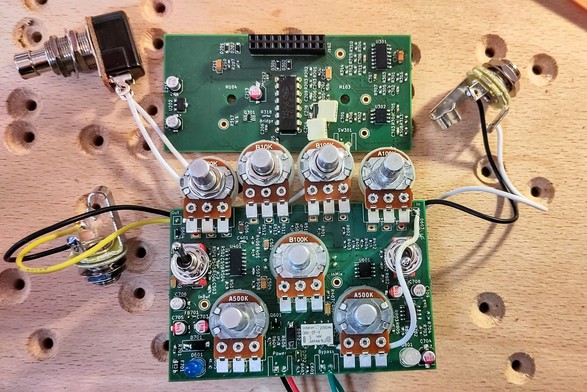

Boards came in! Pretty happy with Aisler. Took me a couple of days to assemble. Figuring out a few kinks now.
Spent the day chasing an annoying click from a Schmitt Trigger leaking into the audio path.
Trigger circuit is on one board, audio path — mostly on the other.
Made a jig to be able to manipulate the connection between the two boards. They mate via a 20-pin header. Started disconnecting one wire at a time, including power.
Finished with just one wire left. THE GROUND. The click somehow is transmitted via *the ground*!
Another day in analog audio electronics 😅
poleguy looking for lost tools@flpvsk current is only conducted in complete circuits. If you only have one connection, gnd, you can be assured the signal is being radiated, not conducted. Congratulations, you built a radio!
@poleguy Yay! I did want to start building radios 😅
In this case the guitar plays a large role, acting as an antenna or a tuner maybe? Volume and tone controls change the loudness of the click. A guitar w passive high output impedance electronics makes the click louder. One with active electronics, low impedance, removes the click almost completely.
Fascinating! Also infuriating 😄
@flpvsk I have no idea what your circuit is, of course. But high impedance outputs from guitars are a classic source of pain.
The solution in general is to understand where your currents are flowing (both on the signal line and on the return pwr/gnd paths). Avoid electrical and magnetic coupling by physical layout... And enclose, shield, and filter like you're building a Faraday cage. Metal enclosures and copper tape are your friends.
Here's a 5-minute noodle around with the pedal. It's a modulated delay, does an ok chorus as well. Has a tone control. Can feedback like nobody's bees knees of course.
https://photos.app.goo.gl/QX7hKoTnaBer4c6x8
AxWax@axwax yes!
controls are mostly for the modulation section. It's a dual-slope generator (aka AR-envelope) that can get looped 😹
