RommudohFinished #soldering. What I learned so far: l should clean between soldering #SMD components and #throughhole ones. I should leave enough space between the SMD components. I also dislike 0806 #resistors, better get some in 1206 size. The #capacitors were okay.
I tried it out with a square and a triangle wave as two inputs, connected through #potentiometers on a mini #breadboard and looked at the #oscilloscope
#diyelectronics #electronics #diysynth
t3hhPlanning on creating an #enclosure for my #diysynth #perfboard modules.
I'll use 5mm transparent #polystyrene for the body, and 2mm #aluminium for the front panel.
Here is a crude #prototype done in #cardboard.
I'll have to unsolder the #potentiometers and #LEDs to place them on the panel. The audio jacks will be connected to the pin headers.
#modular #synthesizer #crafting
I'll use 5mm transparent #polystyrene for the body, and 2mm #aluminium for the front panel.
Here is a crude #prototype done in #cardboard.
I'll have to unsolder the #potentiometers and #LEDs to place them on the panel. The audio jacks will be connected to the pin headers.
#modular #synthesizer #crafting
I fixed the #potentiometers! It was a very tiny change, and I changed the #schematics and PCB layouts for this and the larger board, so it won't happen again.
For each potentiometer, I only had to cut two wires, bend one a bit sideways, and add a new wire zigzagging through. And one new jumper wire at the border.
Remember: pin 1 is left and should usually be connected to ground.
#soldering #electronics
For each potentiometer, I only had to cut two wires, bend one a bit sideways, and add a new wire zigzagging through. And one new jumper wire at the border.
Remember: pin 1 is left and should usually be connected to ground.
#soldering #electronics
C.Odd... So I ordered some "#Bourns" multiturn precision #potentiometers from an #AliExpress seller, both linear, but two different values.
They were #cheap, so you expect them to be #fake. Real Bourns stuff isn't cheap.
But as far as I can tell, the 10kΩ ones are fake, but the 100kΩ ones I received appear to be the #real thing. Now, they could be "3rd shift" or factory floor sweepings... but they're marked #Mexico. Seller is in China.
Anyone see this before?

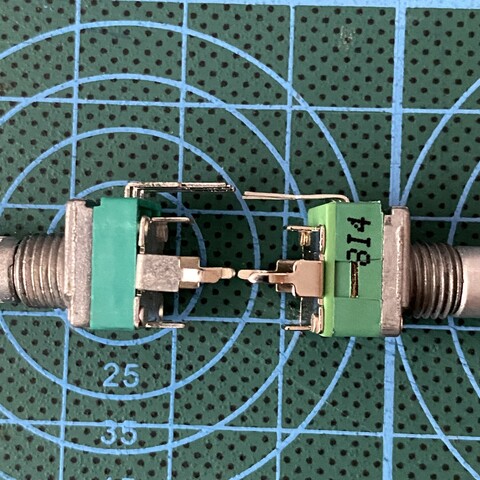

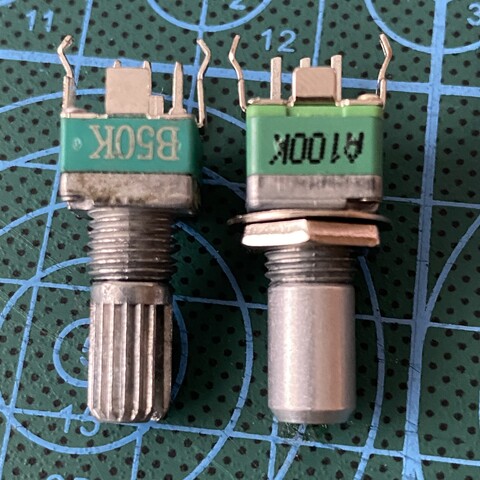

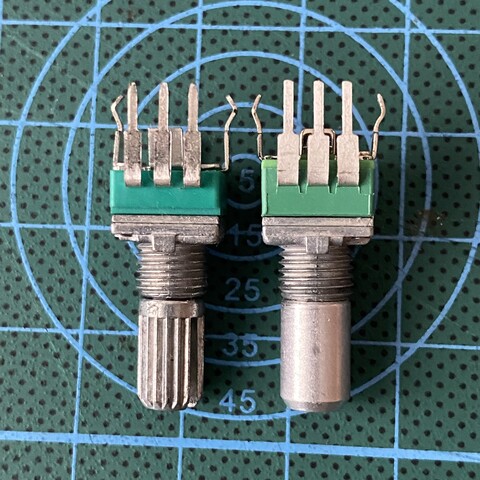

Vila Industries9mm potentiometer replacements: If you ever want to use a cheaper 9mm potentiometer than the Alphas RD901F-40-15R1, know that the Chinese RK097N available on AliExpress are completely interchangeable. #potentiometers #diyguitarpedals #guitarpedals #stompbox #effector #guitar #エフェクター
Chi ha ucciso Il Conte?I 3d printed with recycled PLA a set of odd shaped knobs to be attached to a wearable device #potentiometers #electronics #interactiondesign #tui #hci #computermusic #design #freecad #3dmodeling #3dprinting #digitalfabrication #research
