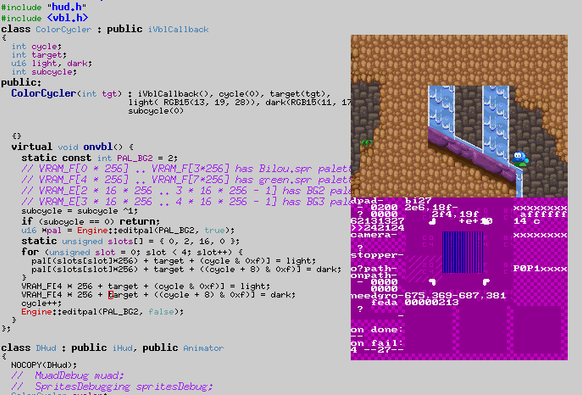

Okay, unlocked some #ndsdev achievement: got extended palettes working on 16K video memory rather than 64K.
Granted, that kills the colors of the background, but I should have ways to fix that. Last week, I'd get either only the background or everything black ^^"
Oh, that could be #ScreenshotSaturday, somehow :P

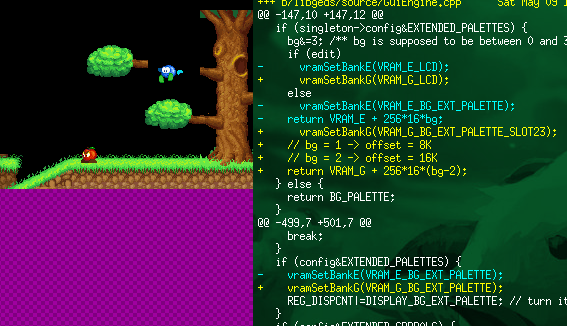

*edit* : all it's missing to work is a BG1_CNT |= BG_PALETTE_SLOT3 in layers configuration, hopefully ^_^
okay, note for later #ndsdev: you don't *need* texture palette to use textured 3D, because there's a "direct 15+alpha" texture format (aka GL_RGB), so just one VRAM bank mapped as VRAM_*_TEXTURE is enough.
https://github.com/devkitPro/nds-examples/blob/master/Graphics/3D/Textured_Cube/source/main.cpp#L143
Note from the sidequest: the 4000240h and friends registers used by vramSetBank* will assign different meaning to the same numerical value, sometimes. For VRAM_E, the value 4 is for "extended palette", but on VRAM_C, it means "BG, bottom"
