Schooner: best looking yacht rig

Staysail schooner: *hurk*
#sailing #boatbuilding #YachtDesign #NavalArchitecture

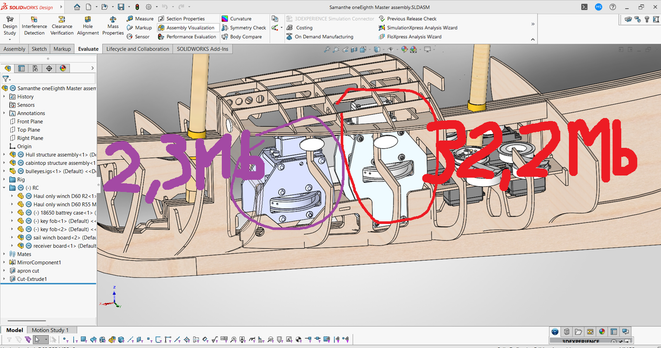

32,2Mb to 2,3Mb. A cool 20min of slicing and dicing the step file in Rhino3D, mainly getting rid of small components and eliminating internal holes and threads.

OldSchool? Maybe. But I'm running SolidWorks on a semi-ancient notebook. I *am* thrifty with memory by necessity.

_UntrimHoles, my beloved
#Samanthe #sailing #boatbuilding #YachtDesign #NavalArchitecture #CAD #SolidWorks #Rhino3D

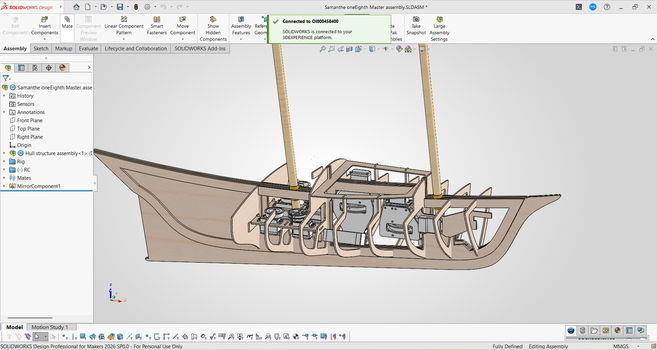

Steel model phase 0 complete, currently fitting the major components.

Or the equivalent in RC model design
#Samanthe #sailing #boatbuilding #YachtDesign #NavalArchitecture #CAD #SolidWorks

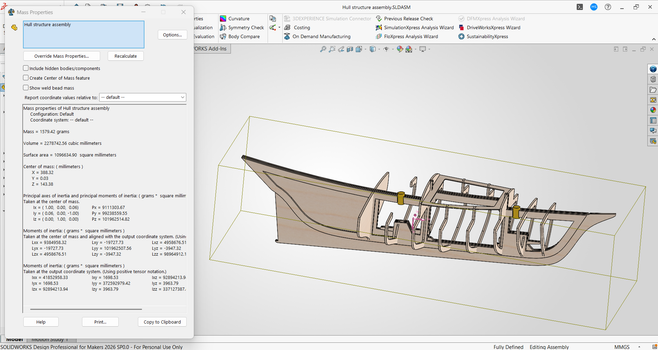

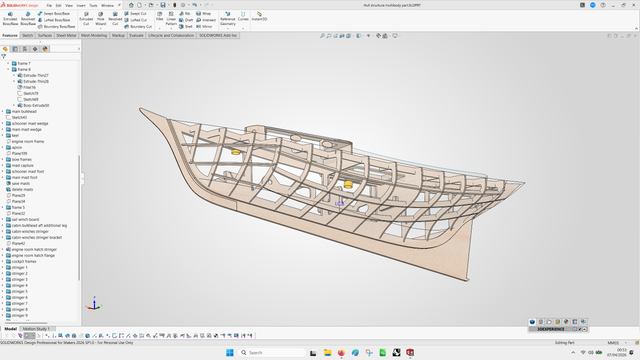

Been working on the hull structure in SolidWorks. Aka SometimesWorks. Because sometimes it doesn't

Hull structure weight is about 1.6kg at the moment, design displacement is 10.7kg. So far, so good
#Samanthe #sailing #boatbuilding #YachtDesign #NavalArchitecture #CAD #SolidWorks

Hm

Hmmmmmmmm

Drag-and-dropping 1791 objects worth of surface model into #SolidWorks on a whim? Things did not go well, Enterprise.
#CAD #Rhino3D #Boatbuilding #NavalArchitecture #Samanthe

MV Pont-Aven

https://www.blipfoto.com/entry/3441796406203908667?

#blip of communications and radar mast on the MV Pont-Avent a #BrittanyFerries ROPAX ferry.

#blipfoto #gimp #rawtherapee #photography #ship #navalArchitecture
