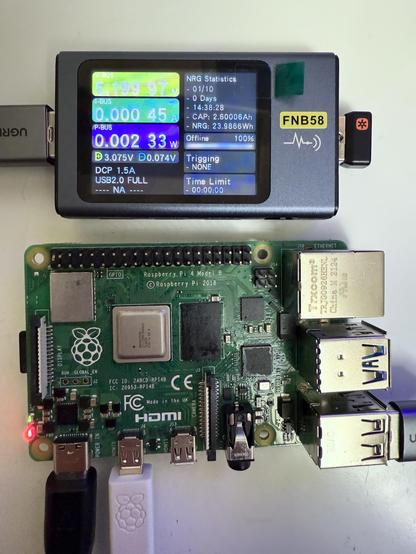

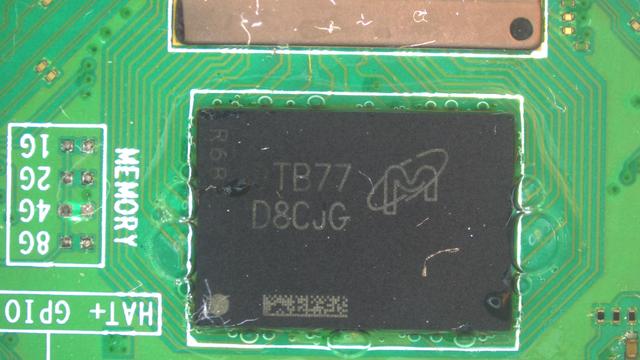

Weird case today in my hobby of #RaspberryPi #electronicsrepair - a dead CPU, but all major ICs are fine: DA9090, VL805, FPF1320UCX...

And there's more: CPU was shorted on a 1V8 rail 🤔.

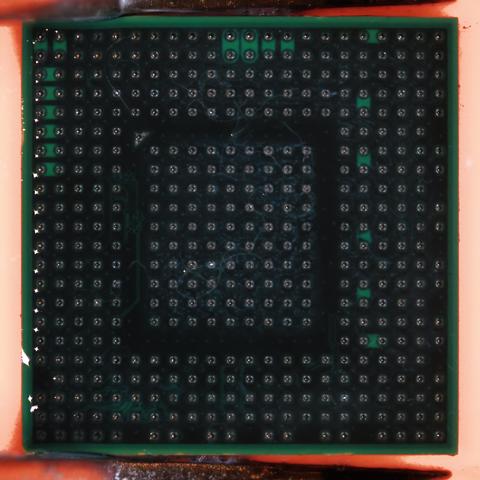

So a note to self on reballing and replacing similar ICs: use airflow around 40%, don't put a hot air nozzle on and don't underestimate hot air rotation while heating the stencil and the chip. You'll thank yourself later 😊.

#bga #reballing #soldering #ifixit #repair #microsoldering #electronics

🔥 Seeing the Invisible!

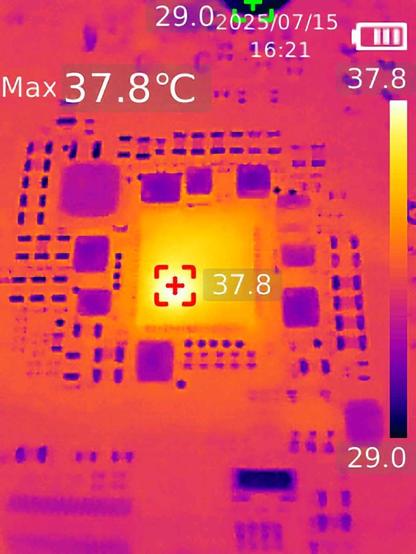

Sometimes the problem is invisible to the naked eye. This thermal camera is our superpower—it instantly spots hidden short circuits (like that hot spot! 🌡️) so we can pinpoint the exact issue and bring your device back to life.

Get a repair quote: https://cellshoppe.ca/get-a-quote/

See our repair services: https://cellshoppe.ca/

Shop devices & accessories: https://shop.cellshoppe.ca/

#ThermalImaging #TechRepair #AdvancedDiagnostics #CellShoppe #MicroSoldering #WeFixIt

This isn’t your average classroom. Step behind the scenes of our microsoldering school, where every “oops” becomes an “aha” under the microscope. Learn more about the course at the link below.

Full blog: https://www.ifixit.com/News/109587/become-a-master-of-microsoldering-and-board-repair-with-ifixit-and-the-repair-academy-in-chattanooga
—
#iFixit #RighttoRepair #Microsoldering

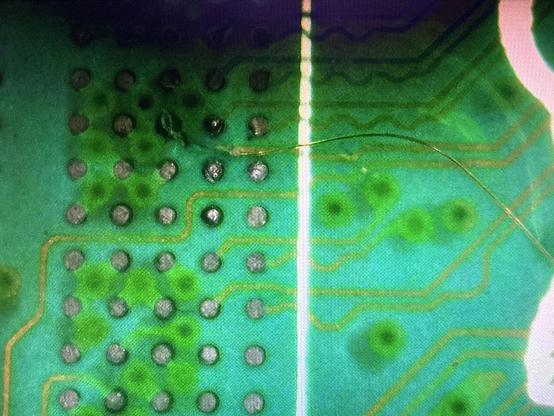

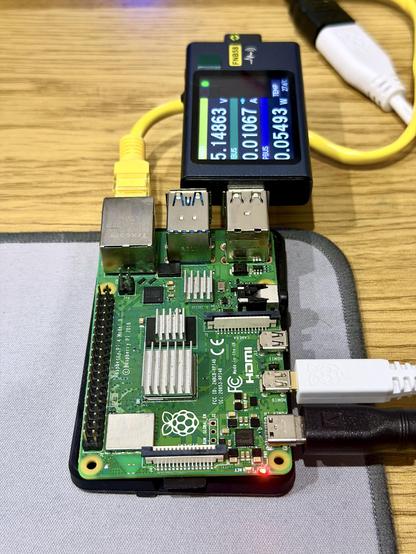

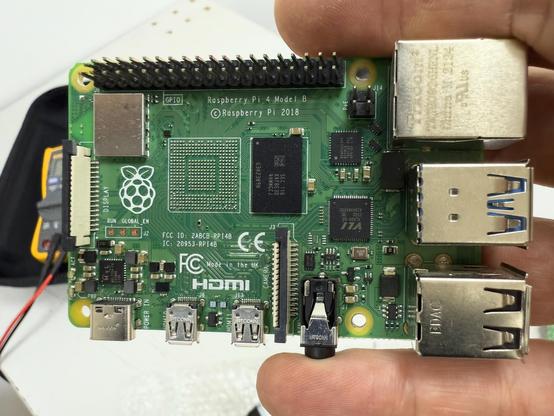

Got a Pi 4B with a torn CPU the other day. Removed the lead free solder residue and discovered that a few pads were torn. One of them is important, so had to repair it with 0.02mm wire. I still can't believe it, but it works 🎉.

#RaspberryPi #electronicsrepair #sbc #BGA #microsoldering #soldering #electronics #repair

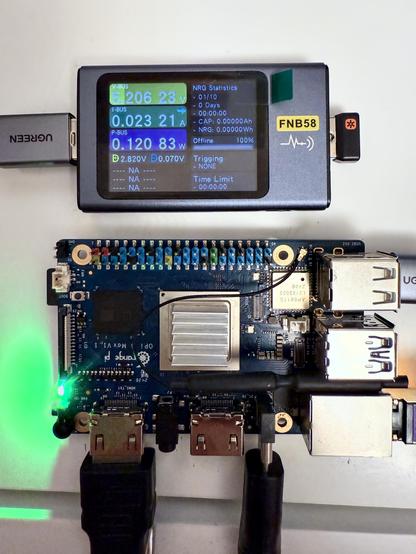

Hey-hi-hello there, Orange Pi 5 Max 😊.

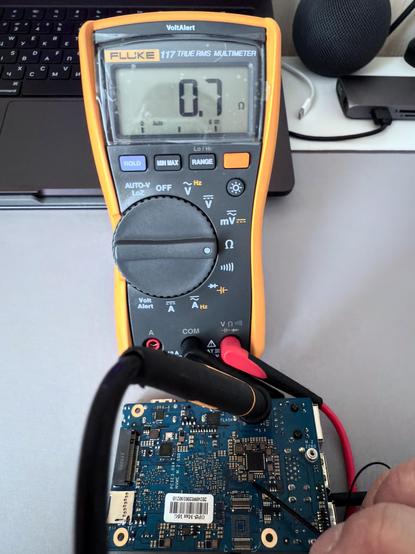

It had a blown PMIC (RK806-1), as you can see on the pics.

Cool fact - anyone can easily buy those chips.

Not cool fact - those Oranges are sucking the heat badly.

So I had to put it on the preheater to replace the chip, because hot air alone either won't provide enough heat or would burn the board.

But it's all good in the end - one more fix ✅.

#orangepi #orangepi5max #orangepi5 #electronics #sbc #electronicsrepair #soldering #microsoldering
