This does have @NanoRaptor vibes, I feel.

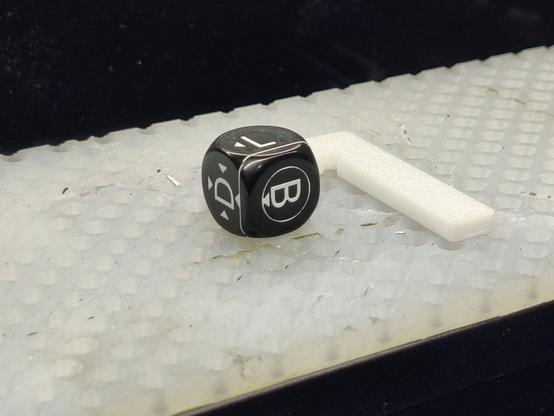

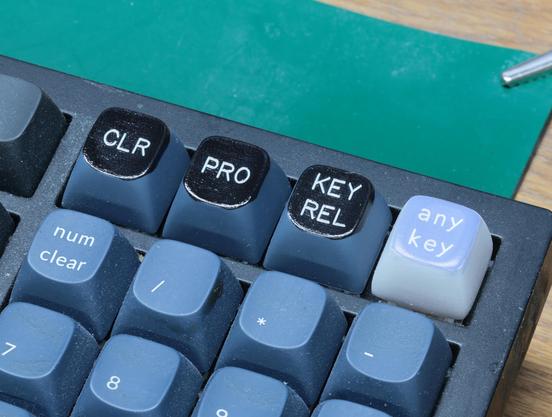

#eufymake UV printer - unused keys on my keyboard...

And yes, I dug out the Gorton (engraving) font to match the original for those three keys.

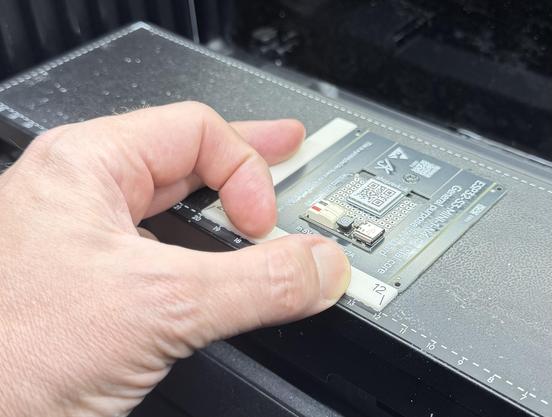

Why does holding this 3D printed jig in place whilst I change PCB feel like I am doing a Vulcan mind meld?!

#PCB #Eufymake #startrek

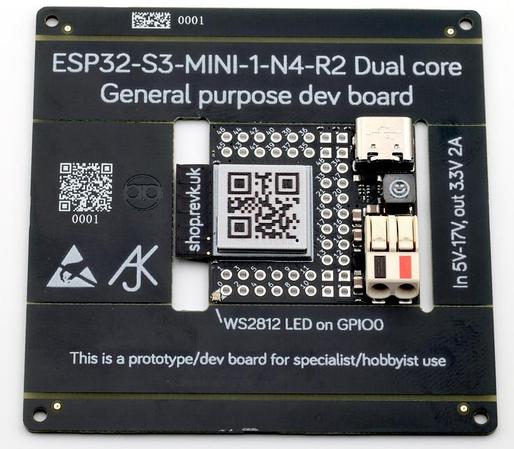

So, yes, a "smiley" on the artwork.

But it has a purpose, really.

The printer does a photo align, and even with a simple jig it can mean an adjustment.

The camera aligns on highest point, all lower points are offset, annoyingly.

That inductor is highest point, so align the smiley and all else aligns.

Next step - getting eufyMake to handle fiducials to align prints.

#PCB #eufymake

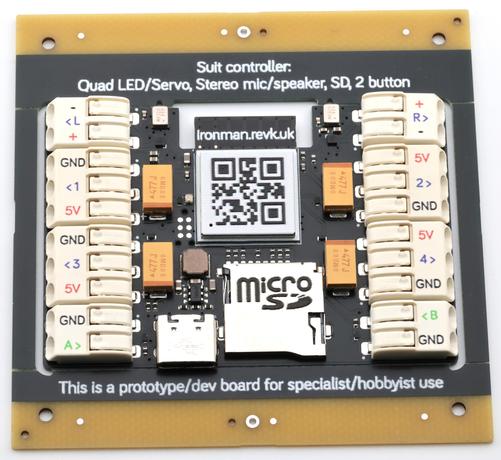

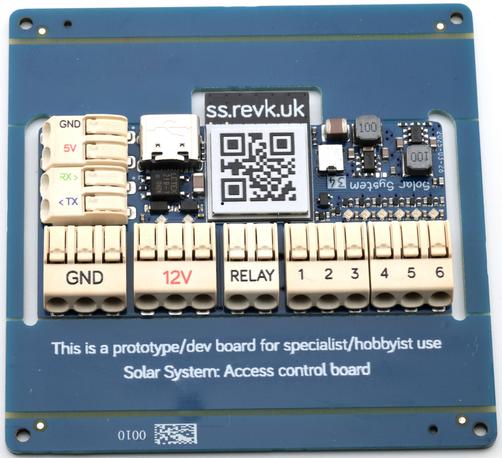

I am really pleased with printing on those wagos. I will probably spend half the day printing and updating product listings today, LOL.

#eufymake

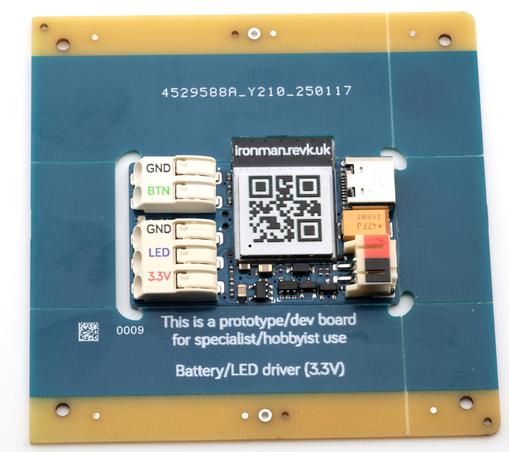

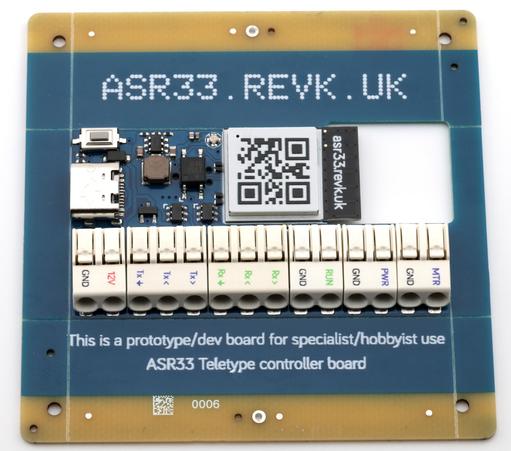

For some of my smaller run boards, an overprint like this could be really useful.

[update, printed WAGOs as well]

JLC should offer this as an added service 🙂

Over printing the WAGOs, really is awesome...

#PCB #QR #eufymake

Synergy of technology.

Using the #3D printer to print a jig to hold parts that will be printed together on the #eufymake UV printer...

Fun Saturday 🙂

Ooh, and using a jig is working, yay!

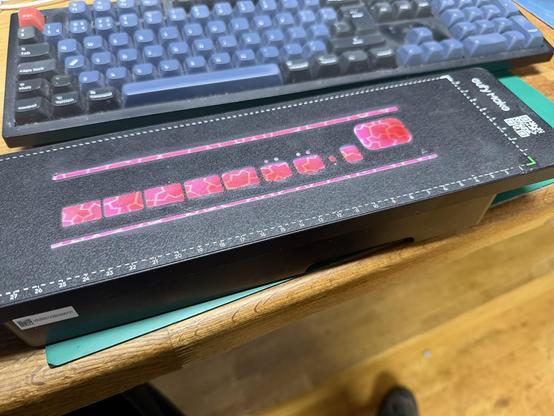

FFS #eufymake
Forgot to put paper down.

I wonder if I can get a new sticky top cover.

LOL, I can't see links on web pages now.

The resulting UV print on a 19" rack milled aluminium front panel was awesome though... #eufymake
