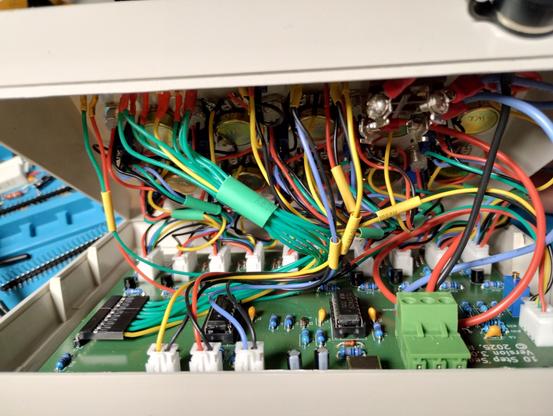

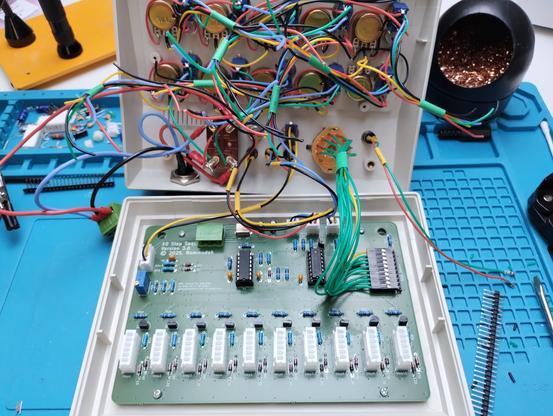

RommudohAll the wires have been crimped! This was very tedious and repetitive. But after the first few done, it went relatively smoothly.
I only had to make two wires longer.
Connector list:
- ten six-pin JST
- three two-pin JST
- one four-pin JST
- one ten-pin DuPont
It looks very cramped, but it works!
The steps are ordered columns first, like this:
1 3 5 7 9
2 4 6 8 10
Else, I would have needed to make more wires longer.
#diysynth #sequencer #electronics #crimping #cables
I only had to make two wires longer.
Connector list:
- ten six-pin JST
- three two-pin JST
- one four-pin JST
- one ten-pin DuPont
It looks very cramped, but it works!
The steps are ordered columns first, like this:
1 3 5 7 9
2 4 6 8 10
Else, I would have needed to make more wires longer.
#diysynth #sequencer #electronics #crimping #cables
Code of Amor 💘Got #crimping to do? Here's a #mnemonic for you!
#electronics
#computers
#networking
#cat6 https://social.codeofamor.net/@codeofamor/113851714326576156
#electronics
#computers
#networking
#cat6 https://social.codeofamor.net/@codeofamor/113851714326576156
Code of Amor 💘 (@[email protected])
Attached: 1 image @[email protected] I didn't have to do nearly as many and I was compelled to come up with this amusing mnemonic to ensure I did the colours right every time.
Sunbeam Borb 🌻

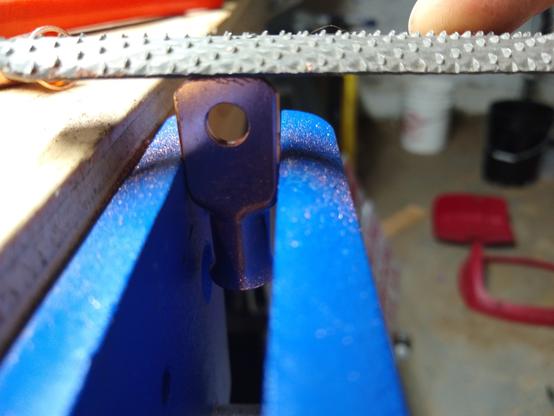

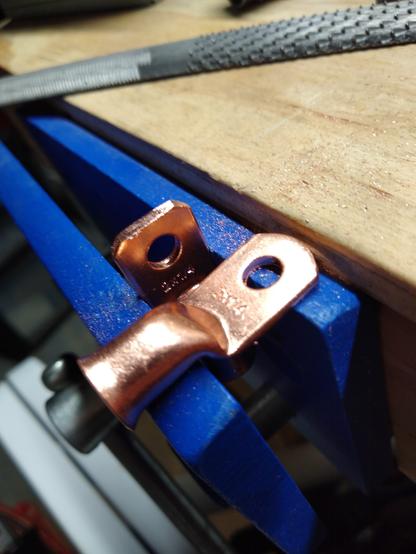

The 2AWG wire lugs had to be filed down so they would fit on the terminals of the cutoff switch. The terminals on the switch are separated by a plastic barrier, but they're still very close together. Makes me wonder if I didn't actually need 2AWG wire at all. But here we are. 🤷 #electronicsdiy #crimping
