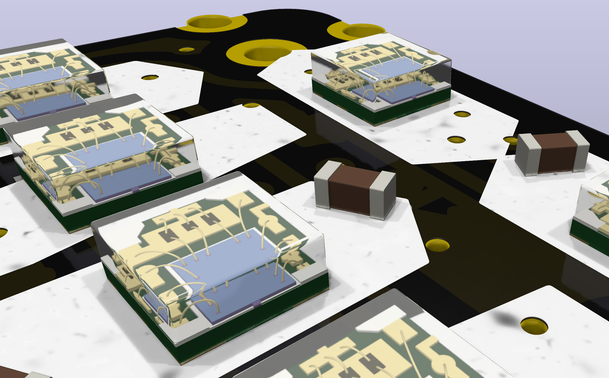

for the better part of the day I've been trying to get this 3D model (both the assembled PCB or the bare RGB LED component only) into any CAD package. or convert it to STEP. or IGES. or OBJ.
the state of the #CAD is really disappointing. the best tool is KiCAD, as it can create this rendering, but it fails to export it as STEP, because the LED is a VRML (.wrl) model, it says.
I've been juggling with #FreeCAD, #ondsel, #cadassistant, various online converters and #onshape
all reliably fail.
