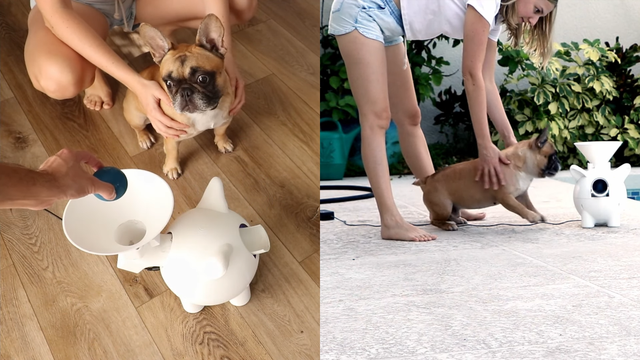

Build a Dog Ball Launcher That Kinda Looks Like a Dog

The average garden dog will play fetch long beyond the average human's endurance. If you want to keep your dog exercised without hurting your pitching arm, [brankly's] automatic dog ball launcher might just be what you need.

The design is straightforward. The 3D printed housing features a large funnel into which a ball can be dropped. A servo then holds the ball while a pair of rollers are spun up by brushed DC motors. After two seconds, the servo releases the ball towards the rollers which launch the ball out of the machine. A Raspberry Pi Pico runs the show, controlling the timing of the ball launch and varying the motor speed to change the distance the ball is launched on each firing.

Files are available on Thingiverse for those eager to build their own. If you're good, you might even be able to train your dog to drop the ball in themselves. We've seen similar builds before, too! Video after the break.

<https://www.thingiverse.com/thing:5019572>

#mischacks #balllauncher #dog #pipico

Auto Ball Launcher Will Be Your Dog’s New Best Friend

If there's one bright spot on the blight that is this pandemic, it's got to be all the extra time we're spending with our pets. Dogs especially love that we're home all the time and want to spend it playing, but sometimes you need to get stuff done. Why not head outside with your laptop and keep the dog happy with an automatic ball launcher?

This is a work in progress, and [Connor] plans to publish a BOM and the STL files once it's all finished. For now, it's a working prototype that shoots a ball into the air and about 25 feet away, from the looks of it. Far enough to be fun, but not so far that it goes over the fence.

All [Connor] has to do is drop the ball in the top, which you know is going to lead to training the dog to do it himself. A proximity sensor detects the ball and starts up a pair of 540 R/C motors, then a servo drops the ball down the internal chute. The motors spit the ball out with great force with a pair of profiled, 3D-printed wheels that are controlled by a Turnigy ESC and an Arduino Nano.

In the future, [Connor] plans to print a cover for the electronics and enlarge the funnel so it's easier for the dog to drop in the ball. Check out the brief demo and build video after the break.

All dogs should be able to get in a good game of fetch as often as they want, even if they happen to be blind.
