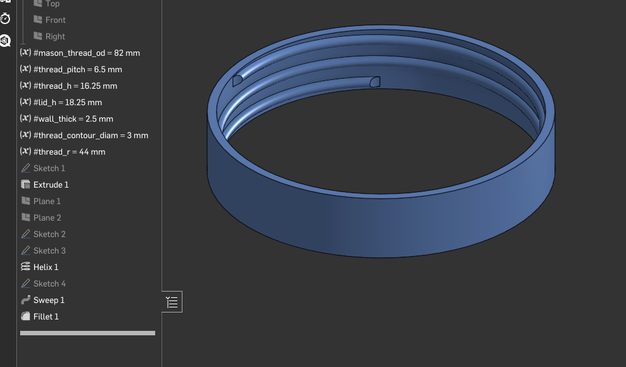

I got tired of the trial and error approach and found a post on Thingiverse with some Python that generates an STL file that fit really ok, so I converted it into an OpenSCAD script with the help of some AI and after fiddling with the fitting, I was able to work out an absolutely rock solid thread. This fits PERFECTLY.
#cad #cad3d #3d #3dprint #3dprinting
#onshape #parametriccad #WLED #led #ledshow #anikimakes
This is how you reverse engineer when you're an idiot like myself. π
#cad #cad3d #3d #3dprint #3dprinting
#onshape #parametriccad #WLED #led #ledshow #anikimakes
TIL if you have a clockwise thread you need to make your matching thread counter-clockwise... π€¦
#cad #cad3d #3d #3dprint #3dprinting
#onshape #parametriccad #WLED #led #ledshow #anikimakes
I hated how bad this thing looked once I got it into the slicer so I tried splitting it up and still am very unsatisfied. Since we love Ball jars in this house, I have decided that I am going to work out my own modular Ball jar system. The first piece, the most critical, is going to be the jar mount. I have included a glue slot and the whole thing can be printed upside down without supports!
#cad #cad3d #3d #3dprint #3dprinting
#onshape #parametriccad #WLED #led #ledshow #anikimakes
Working next on a self watering planter insert for 16oz ball jars. I'm fixing to have a lot of window herbs and these are also awesome for starting seeds!
#cad #cad3d #3d #3dprint #3dprinting
#onshape #parametriccad #WLED #led #ledshow #anikimakes

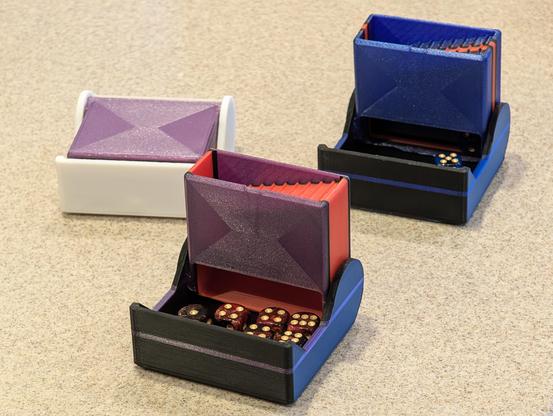

I printed a few of these as gifts and then just kept printing them with matching dice for portable Farkle and beyond.
I hate how the latch works so there's a future where I model something like this myself, but for now these guys are nearly perfect.
https://www.thingiverse.com/thing:3529112
#cad #cad3d #3d #3dprint #3dprinting
#onshape #parametriccad #WLED #led #ledshow #anikimakes
Ohh!! I found a voronoi face generator for Onshape!!! I love 3D printing stuff that can't be manufactured easily so generating voronoi patterns is huge!
#cad #cad3d #3d #3dprint #3dprinting
#onshape #parametriccad #WLED #led #ledshow #anikimakes
I have no idea why so many designers don't incorporate more permanent hardware. This takes two #6 screws with a tapered head. No clamps, or anything on top of the desk.
#cad #cad3d #3d #3dprint #3dprinting
#onshape #parametriccad #WLED #led #ledshow #anikimakes
I finally got around to using my Elegoo rollers and made one of Amao-Chan's free automatas. I made the mistake of printing the gears at .24mm layer height instead of the recommended .20 and it was a disaster so I reprinted them at .18mm and the action is much smoother.
#cad #cad3d #3d #3dprint #3dprinting
#onshape #parametriccad #WLED #led #ledshow #anikimakes
Finished the initial design of my T-Deck case. I already need to make some changes so I can add in the missing GPS module, so I will add a bump next to the antenna bump. For the Plus, I will have to figure out a way to cram it in there.
#cad #cad3d #3d #3dprint #3dprinting
#onshape #parametriccad #WLED #led #ledshow #anikimakes
