- Built the (shitposty) #USB2Speakon adapter
- Designed a new revision of the #SSD1303 breakout PCB
- Developed a small ESP-NOW telemetry and logging framework for a model rocket #jfzhn project
- Finished reverse engineering the #startergenerator. It spins now! \o/
- Built #TheLAEMPAN together with @techbeard and @Toble_Miner (RGB replacement PCBs for IKEA LAMPANs, more info coming sometime™)

#GoodOf2024 2/3

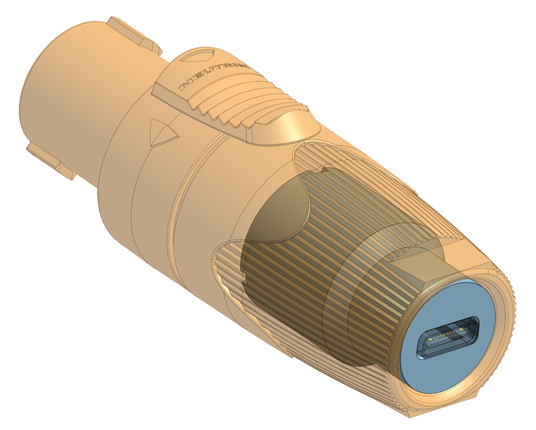

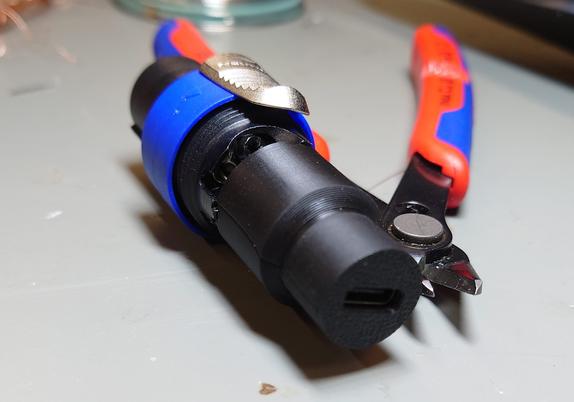

After a few design iterations, I had a working design for a shell that securely holds the #USB2Speakon PCB in the back of the plug.

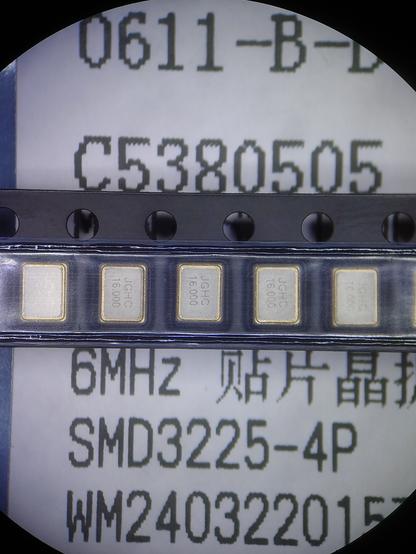

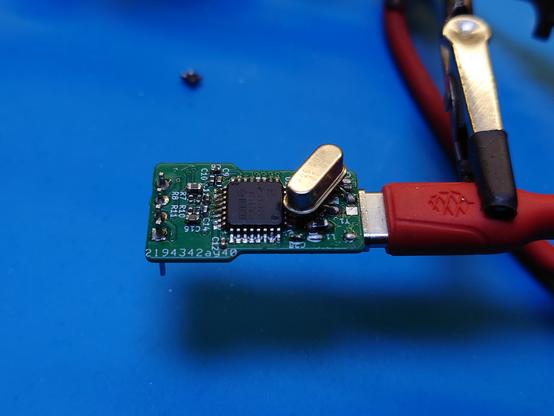

But I had to relocate the bodged on crystal to the other PCB side, so it would fit inside.

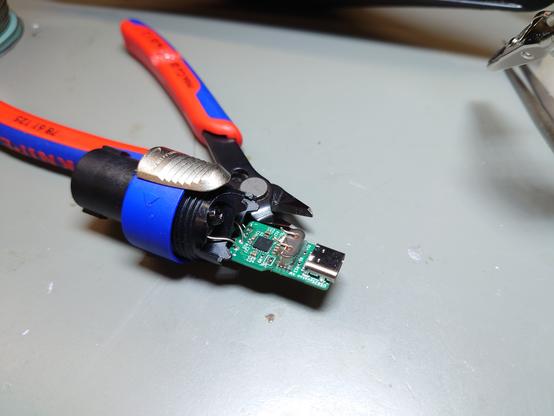

The shell fits snugly and keeps everything together even without the outer housing screwed on.

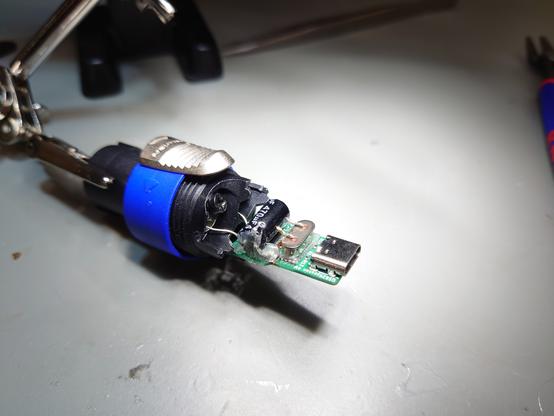

I also bodged on a 470uF capacitor as a tiny energy buffer, I think it helped a bit with clipping, but obv. not too much.

And with that the first prototype was done™

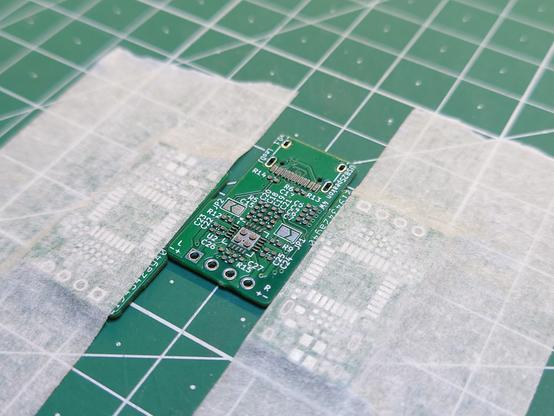

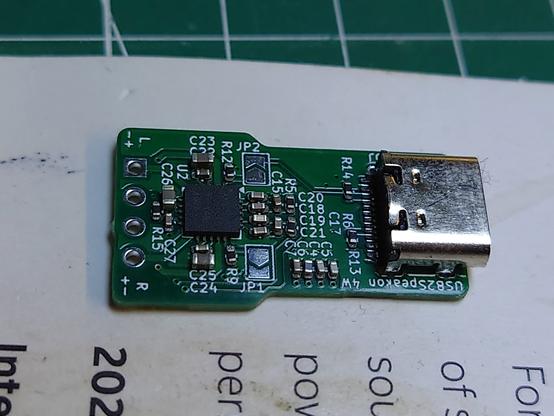

*insert standard run-of-the-mill #PCB assembly steps here*

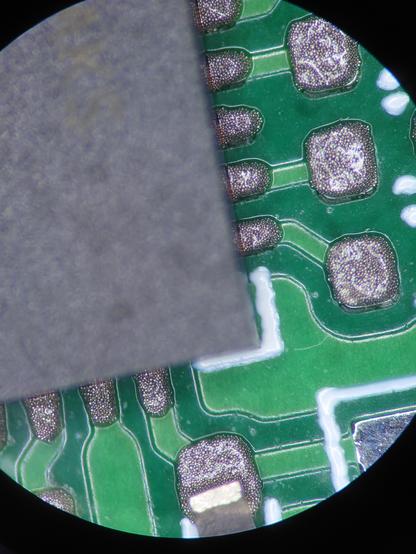

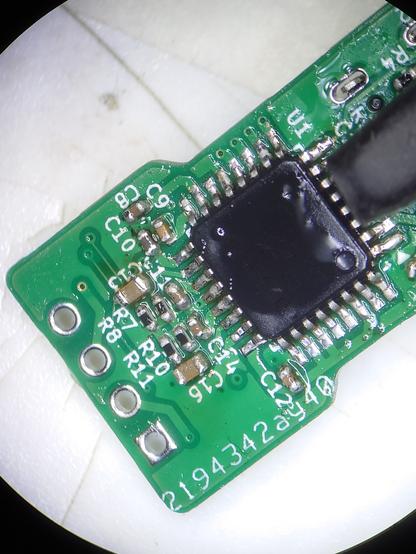

Paste, place, reflow the one side.
Solder the other side by hand (because I didn't have a hot-air station at home and was impatient).

#USB2Speakon

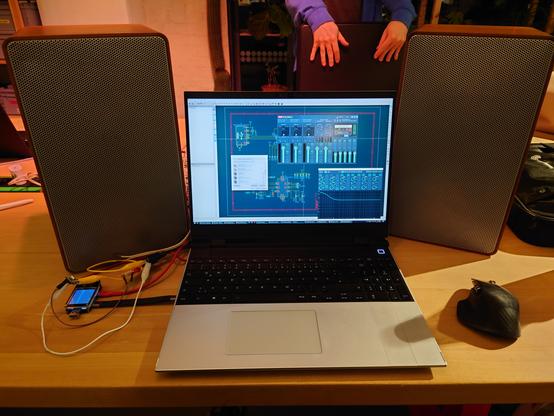

Here is a demo video showing the #USB2Speakon in use.
I'm not sure if the camera microphone captures it accurately, but it's _surprisingly_ loud :D
(I expected around "room volume" at most)

Build log thread coming soon™
