I bring you the Filter Shaft End Play adjustment, from the IBM Selectric I And Selectric II Pictorial Reference Adjustment Manual https://archive.org/details/ibm-selectric-i-and-selectric-ii-pictorial-reference-adjustment-manual/page/2/mode/1up

It's full of these hand-drawn technical drawings that i (sort of) learnt to do in school.

Have you checked your Filter Shaft End Play today?

#TechnicalDrawing #Selectric

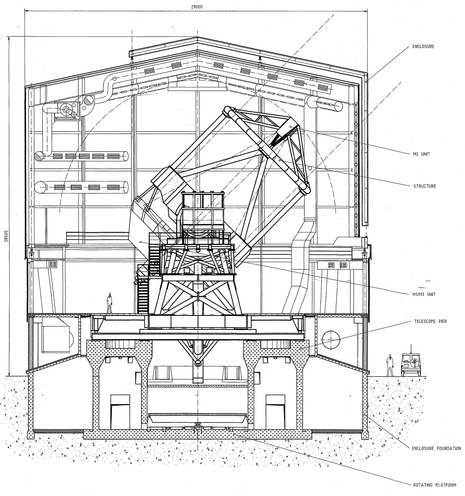

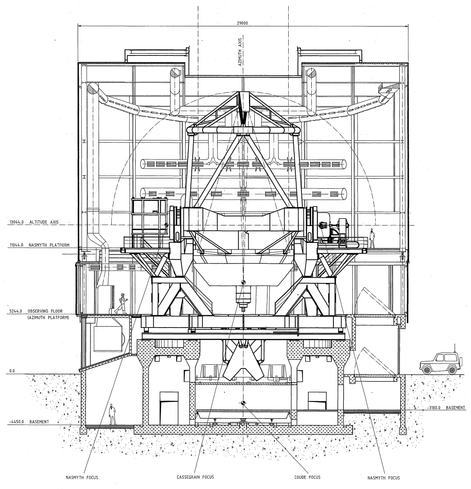

I'm a sucker for technical drawings of telescopes. I came across these today, of a @esoastronomy Very Large Telescope (VLT) Unit Telescope, while looking up some info for my MAVIS project work. The drawings probably date from the early 1990's.

#Astrodon #Astronomy #Telescope #TechnicalDrawing #VLT #ESO #VeryLargeTelescope

FreeCAD Freddy

For our 3d print workshop I've created FreeCad Freddy.
This is a cute cube like character.
I was trying to create a simple but fun project for others to make when they use FreeCAD for the first time.

The design is just a basic cube with legs and from there you can customize it the way you like!
I gave this one curly hair and a big smile.
Curious to see what you are able to create, enjoy!

#FreeCAD #FreeCADFriday #freeCADFreddy #technicaldrawing #cad
#makerspace #3dprinting

Technical drawing of early hot-air balloon designs by engraver Ambrose William Warren, circa 1818.

Source:
https://commons.wikimedia.org/wiki/File:Aeronautics2.jpg

#Engraving #Art #Illustration #History #TechnicalDrawing #HotAirBalloons #Engineering #Design

OK I cheated- there's yet another one

(Actually this is because I found out that the book page count isn't divisible by 4 so I just have to make another spread 😅)

#OurPaint #ConceptArt #Art #MastoArt #ArtistsOnMastodon #Drawing #TechnicalDrawing #ConceptDesign #IndustrialDesign
