Show threadJoshua Purba Mar 12, 2025

LOL nope.

I see that there are a lot of projects that connected the Si4703 3.3V pins directly to Arduino 5V pins and claimed to work.

Not a few, a lot. Weird isn't it? They cannot all be fake.

So I dug deeper. As I was reading more about Si4703, a post by jezo421 in GitHub comment dated 2025-01-04 jumped out to me:

Yesterday I received the Si4703 module from Ali. I had the same problem. I2C communication was OK, but tune did not work. Register Status RSSI was still 0x0000. The problem was HW. Pad 16 on the bottom of the chip was not soldered. It is an analog power supply, so it could not work. The repair was unpleasant, but it was successful :-)

https://github.com/pu2clr/SI470X/issues/4#issuecomment-2570595858

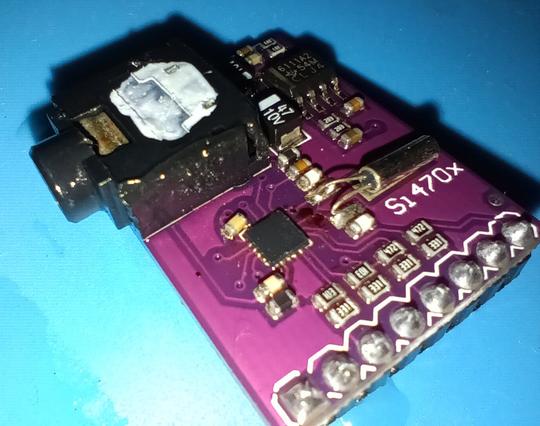

Could it be? That my Si4703 breakout board is from the same batch as jezo421? That my problem was actually caused by bad solder job?

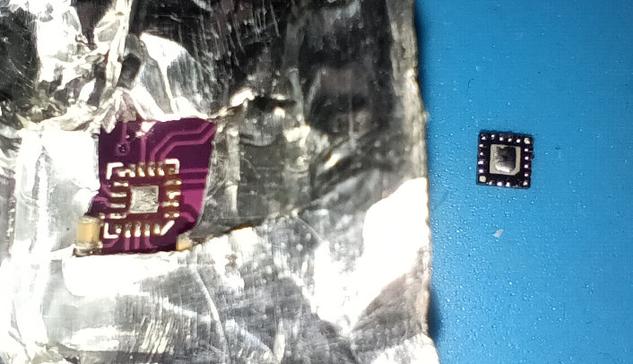

Nothing to lose except time and effort, I tried desoldering the Si4703 chip, and guess what?

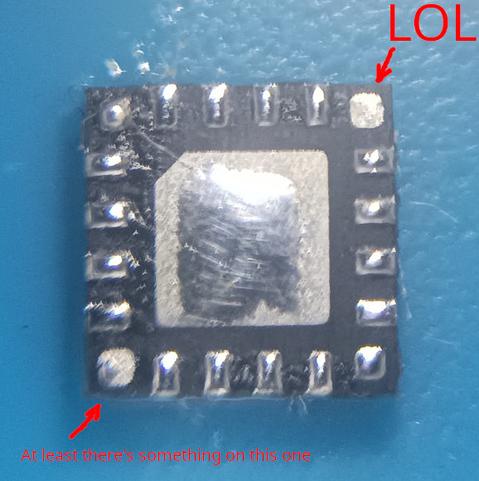

Pin 16 (VA = Analog Supply) was dry, no solder.

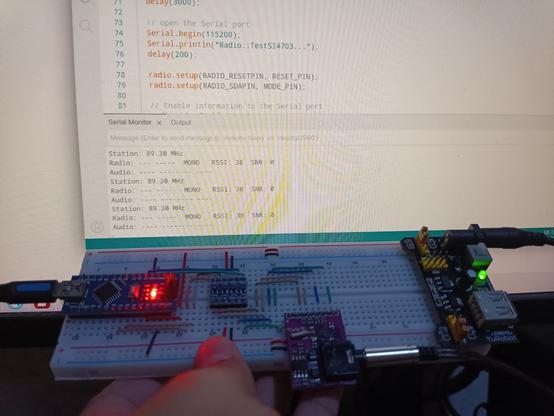

I resoldered it to the breakout. Tried breadboarding with similar setup as before. And it works. IT WORKS. Despite me previously exceeding the absolute max voltage for SCLK, SDIO, RST, and GPIO2 pins.

Solved! Problem = pin 16 not soldered. Solution = desolder the chip and resolder.

Thank you jezo421

So if your Si4703 breakout appears to be not working, or even if you mistakenly connected the pins to 5V, don't give up yet! Your breakout may have the same problem as mine and jezo421, so try to resolder the Si4703 chip!

#Electronics #Arduino #Si4703 #Repair
