Jürgen :verigreen:🌗🪐🌌 🇦🇹
@mechanical0815

"Anyone powering a #Raspi5 via 12 V or USB QC/PD/Y-Splitter cable or anything else than 110 V/240 V?"

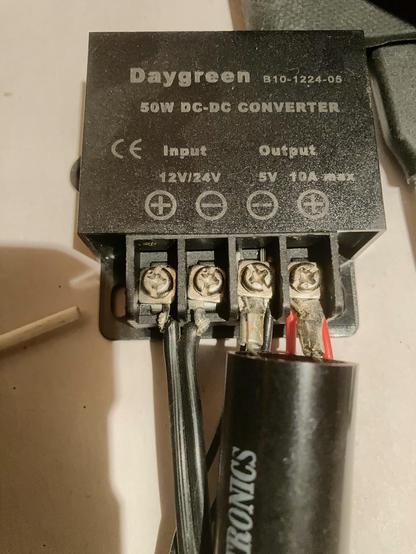

Yes! Mine runs from 24VDC via a sealed DC-to-DC block:

Tiny Machines 3D <[email protected]>
12-24 to 5V for FivPi TM39726
12V/24V to 5V 10A 50W DC DC Step Down / Buck Converter
$6.50 Shipping $5.72 Total 12.22 USD

Daygreen B10-1224-05

At first I saw lots of voltage errors. Turned out to be the foot long 24AWG clip leads I tried. After changing to 18AWG 4 inch wires with soldered clips, and doubling the connections to the Pi header, it has been rok solid for a year.

#RaspberryPi5

#askfedi #Fedihelp
#RaspberryPi5
Anyone powering a #Raspi5 via 12 V or USB QC/PD/Y-Splitter cable or anything else than 110 V/240 V?
Original Power supply 🇪🇺 is 240 V -> 5.1 V @ 5 A (25.5 Watts) - yes I have one.

However, I would like to power the Raspi via a power station in order to use it with my telescope (#astrophotography), either with 12 V (like the mounts) or via USB (where the camera and other devices are powered).

Using the 240 V AC port on power stations drains the battery (much) faster, therefore I don't want to use it - unless it is really really necessary. 🙄

The USB ports on my power station deliver 3.1 A, which is not enough. Can a USB Y-splitter cable help by connecting two of the 3 A USB ports to one to get ~5 amps?

Or is there a power supply 12 V -> USB 4-5 A available?

Using a 12 V Power supply with two 3.1 A USB ports and a Y-splitter cable seems not to work. 🤨
(I don't know if 3.1 A can be delivered on both ports at the same time).

In #selfhosting news: successfully migrated my @yunohost instance from its old 32gb microsd to a roomier one. Currently creating a #backup .
Next step: migrating everything to the beefier #Raspi5 and its ssd.

#selfhosting

#digitalensouveranitat

Liebes Fediverse: Ist das eigentlich #libreelec was auf dem #raspberrypi #raspi 5 alle 2 Tage das WiFi verliert oder ist das der #raspi5 selber?

Ich muss ca alle 2 Tage neu starten, weil das Netz weg ist. Für Kodi wär mir das halbwegs egal, aber da soll irgendwann noch was anderes drauf laufen.

Fantastisch! Nachdem ich erst meinen #Yunohost auf einer #NVMe installiert hatte, ohne auf das Partitionsschema zu achten - und folglich nur 2TB meiner 4TB-SSD nutzen konnte -, hat mir diese Anleitung geholfen, mein System erst auf eine SD-Karte zu klonen und dann zurück auf die neuformatierte SSD. Nun läuft der selbstgebastelte NAS in Form eines #raspi5 mit #NVMe und #Yunohost! Danke, Dr. Klipper!

https://www.drklipper.de/doku.php?id=sbcs%3Araspberry_pi%3Abootdatentraeger_klonen_pi_4_5

Portable Direction Finding with Kraken SDR - 5 point antenna mapping.

#KrakenSDR #SDR #SoftwareDefinedRadio #RasPi #RasPi5 #NVMe #Kraken #KrakenRF #RadioDirectionFinding #DirectionFinding #RadioFrequency #AmateurRadio #HamRadio

Well, I finally got a raspberry Pi 5. Got the official case with it and just loaded in a 256gb micro sr card. I already tested it out a little with a Minecraft server and it ran great with no tweaks at all. Only some slowness on terrain generation.

Very cool little device, gonna use this for some projects in the future!

Also, this is the 8GB model.

#raspi5 #pi5 #raspberrypi #homelab
