The Power of the Whisper: How WSPR and WSJT-X are Redefining Long-Distance Radio

1,250 words, 7 minutes read time.

Amateur radio operators and technology enthusiasts are currently utilizing the Weak Signal Propagation Reporter, commonly known as WSPR, and the WSJT-X software suite to achieve global communication using minimal power. Developed by Nobel laureate Joe Taylor, K1JT, this digital protocol allows stations to send and receive signals that are often completely buried in background noise, making it possible to map atmospheric conditions and radio propagation in real-time. This technology serves as a critical entry point for men looking to understand the mechanics of the ionosphere and the efficiency of modern digital signal processing. By leveraging advanced mathematical algorithms, WSPR proves that high-power amplifiers and massive antenna towers are no longer the only way to reach across the ocean, offering a technical challenge that rewards precision and patience over brute force.

The core of this system lies in the software known as WSJT-X. This program implements several digital protocols designed specifically for making reliable communication under extreme conditions where traditional voice or Morse code signals would fail. While WSPR is not a conversational mode, it acts as a global beacon system. A station transmits a brief packet containing its callsign, location grid square, and power level. Thousands of other stations around the world, running the same software, listen for these signals and automatically report any successful decodes to a central internet database called WSPRnet. This creates a living, breathing map of how radio waves are traveling across the planet at any given second, providing invaluable data for anyone interested in the science of communication.

Understanding the physics behind this process is what separates a casual observer from a true radio technician. The Earth’s ionosphere, a layer of the atmosphere ionized by solar radiation, acts as a mirror for certain radio frequencies. Depending on the time of day, solar flare activity, and the season, these signals can skip off the sky and land thousands of miles away. In the past, confirming these paths required luck and high-power transmissions. Joe Taylor once noted that the goal of these modes is to utilize the information-theoretic limits of the channel. This means squeezing every bit of data through the smallest amount of bandwidth possible, allowing a station running only one watt of power to be heard in Antarctica from a backyard in Michigan.

For the man standing on the threshold of earning his amateur radio license, WSPR is the ultimate proof of concept. It removes the intimidation factor of “talking” to strangers and replaces it with a pure engineering objective: How far can my signal go with the least amount of effort? Setting up a WSPR station requires a computer, a transceiver, and a simple wire antenna. The software handles the heavy lifting of Forward Error Correction and narrow-band filtering. This process teaches the fundamentals of station grounding, signal-to-noise ratios, and frequency stability—skills that are mandatory for passing the licensing exam and, more importantly, for operating a professional-grade station.

The hardware requirements are surprisingly modest, which appeals to the practical, DIY-oriented mind. Many enthusiasts use a Raspberry Pi or an older laptop dedicated to the task. The interface between the radio and the computer is the critical link, ensuring that the audio generated by the software is cleanly injected into the radio’s transmitter. If the audio levels are too high, the signal becomes distorted, “splattering” across the band and becoming unreadable. This level of technical discipline is exactly what is required in high-stakes fields like aviation or telecommunications. Mastering the “clean” signal is a badge of honor in the ham radio community, signifying a man who knows his equipment inside and out.

As we look at the data generated by WSPR, we see more than just dots on a map; we see the pulse of the sun. Because radio propagation is tied directly to solar activity, WSPR users are often the first to notice a solar storm or a sudden ionospheric disturbance. When the sun emits a massive burst of energy, the higher frequency bands might “open up,” allowing for incredible distances to be covered on low power. Conversely, a solar blackout can shut down communication entirely. Being able to read these signs and adjust one’s strategy accordingly is a core component of the hobby. It turns a simple radio into a scientific instrument used for environmental monitoring.

The community surrounding WSJT-X is one of rigorous peer review and constant improvement. The software is open-source, meaning the code is available for anyone to inspect and refine. This transparency has led to a rapid evolution of the protocols. While WSPR is for propagation reporting, other modes within the suite like FT8 or FST4 are used for rapid-fire contacts. However, WSPR remains the gold standard for testing antennas. If a man builds a new wire antenna in his yard, he doesn’t have to wait for someone to answer his call to know if it works. He can run WSPR for an hour, check the online map, and see exactly where his signal landed. It provides immediate, objective feedback that is essential for any technical project.

The future of this technology points toward even more robust communication in the face of increasing electronic noise. As our cities become more crowded with Wi-Fi, power lines, and electronics, the “noise floor” of the radio spectrum is rising. Traditional modes are struggling to compete. Digital modes like those found in WSJT-X are the solution, using digital signal processing to “dig” signals out of the static. This represents the next frontier of amateur radio—the transition from analog heritage to digital mastery. For those looking to get involved, the barrier to entry has never been lower, and the potential for discovery has never been higher.

In the broader context of emergency preparedness and global infrastructure, the lessons learned from WSPR are invaluable. In a scenario where satellites or internet backbones fail, the ability to bounce low-power signals off the atmosphere remains one of the only viable long-distance communication methods. A man who understands how to deploy a WSPR-capable station is a man who can provide data and connectivity when everything else goes dark. This sense of utility and self-reliance is a driving force for many who pursue their license. It is not just about a hobby; it is about mastering a fundamental force of nature to ensure that the lines of communication stay open, no matter the circumstances.

Call to Action

If this story caught your attention, don’t just scroll past. Join the community—men sharing skills, stories, and experiences. Subscribe for more posts like this, drop a comment about your projects or lessons learned, or reach out and tell me what you’re building or experimenting with. Let’s grow together.

D. Bryan King

Sources

• WSJT-X Main Page: physics.princeton.edu/pulsar/k1jt/wsjtx.html
• WSPRnet Official Site: wsprnet.org/drupal/
• ARRL – What is WSPR?: arrl.org/wspr
• K1JT’s WSPR Implementation Guide: physics.princeton.edu/pulsar/k1jt/WSPR_Instructions.pdf
• WSPR on Raspberry Pi – GitHub: github.com/JamesP6000/WsprryPi
• Make Magazine – Ham Radio for Beginners: makezine.com/projects/ham-radio-for-beginners/
• Introduction to Digital Modes – OnAllBands: onallbands.com/digital-modes-101-wspr/
• DX Engineering – WSPR Equipment: dxengineering.com/search/product-line/wsjt-x-interfaces
• Radio Society of Great Britain – WSPR Intro: rsgb.org/main/get-started-in-ham-radio/digital-modes/wspr/
• Ham Radio School – Digital Mode Basics: hamradioschool.com/digital-modes-introduction/
• The History of WSJT-X – Princeton University: princeton.edu/news/2017/10/18/nobel-prize-winner-taylor-channels-passion-radio
• WSPR Rocks – Real-time Database: wspr.rocks
• Antenna Theory for Digital Modes: antenna-theory.com
• HF Propagation Basics – NOAA: swpc.noaa.gov/phenomena/hf-radio-propagation
• Digital Radio Mondiale and WSPR – IEEE: ieee.org/publications/wspr-technical-overview

Disclaimer:

The views and opinions expressed in this post are solely those of the author. The information provided is based on personal research, experience, and understanding of the subject matter at the time of writing. Readers should consult relevant experts or authorities for specific guidance related to their unique situations.

Radio Propagation

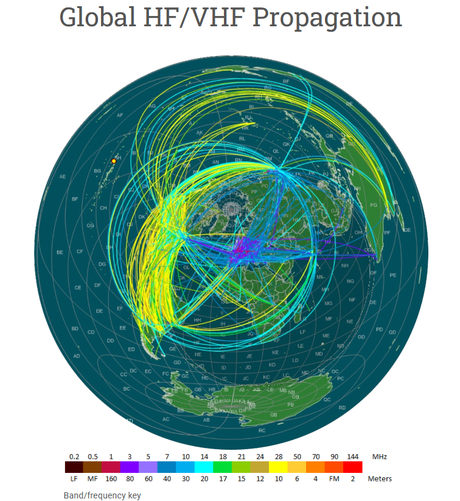

A different perspective on radio path propagation!

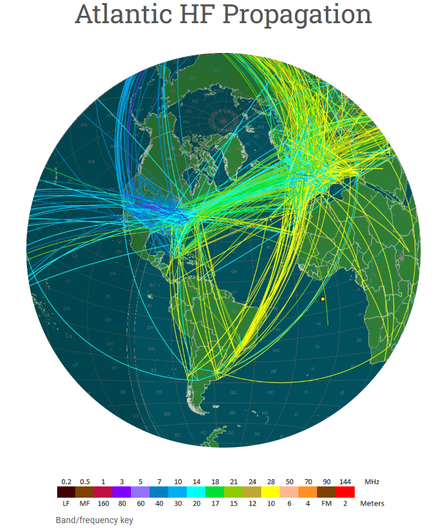

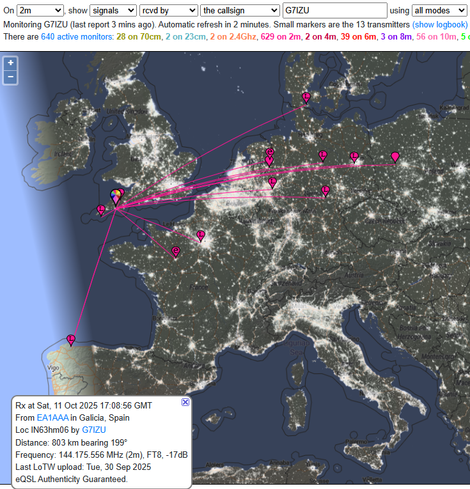

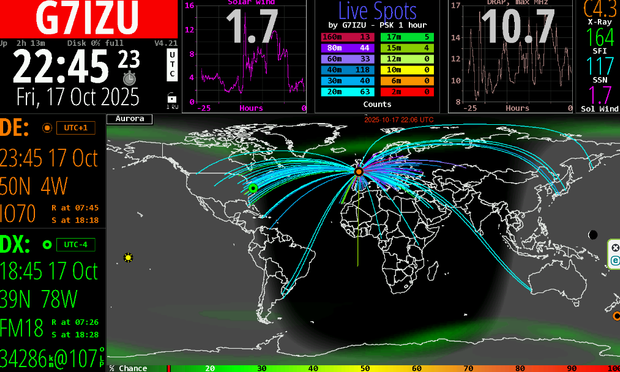

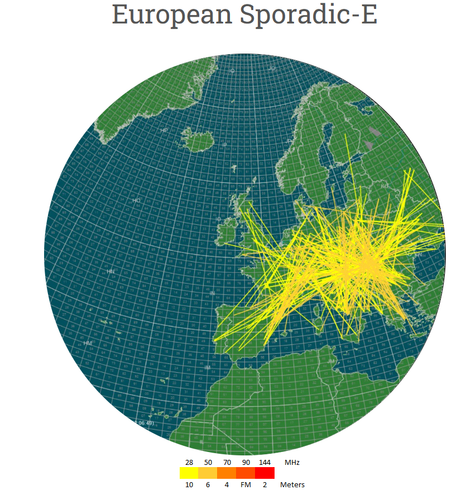

This is an application I'm working on to display live DX spots on a 3D globe. Here we see the 10m to 2m bands with a live aurora layer.

#spaceweather
#radiopropagation
#g7izu

Radio Propagation

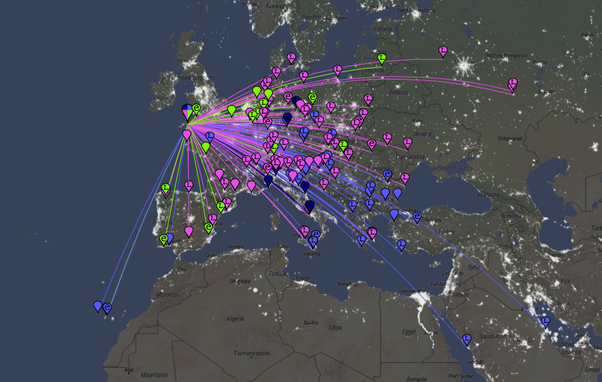

I know, it looks a bit like WW3 with the flashes at the start and end points, but I think it looks cool!

#radiopropagation
#amateurradio
#g7izu

Radio Propagation

I made a thing!

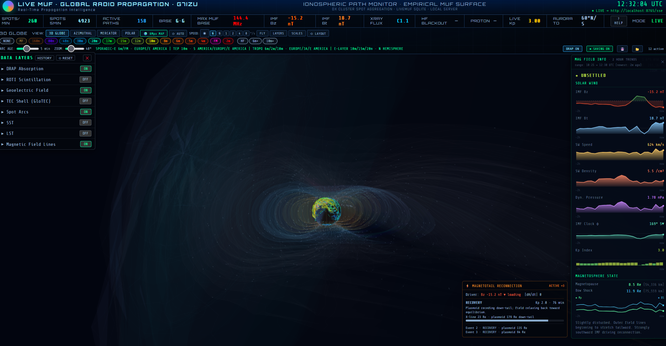

With the help of Claude AI, I made a new mapping backend for LiveMUF.

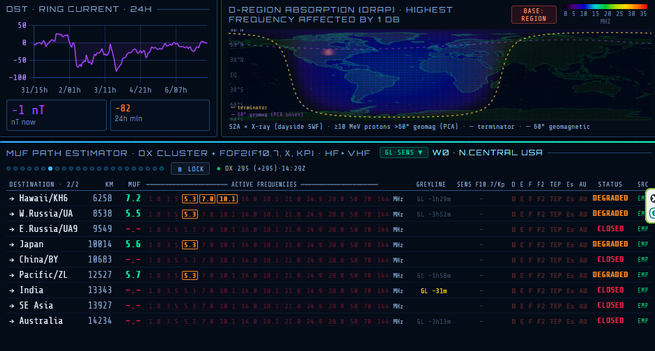

The entire thing — 3D WebGL renderer, ionospheric physics, signal animation, Es detection, MUF modelling, band matrix, 2D map, live database connection — fits in a single HTML file of about 3,000 lines. No npm, no webpack, no dependencies beyond D3 and TopoJSON loaded from a CDN. A helper file interfaces with the LiveMUF SQLite database and forwards spots to the map as they appear. I'll need to work on a version for MySQL. It currently only runs on a PC which already has LiveMUF installed and capturing spots to a local database.

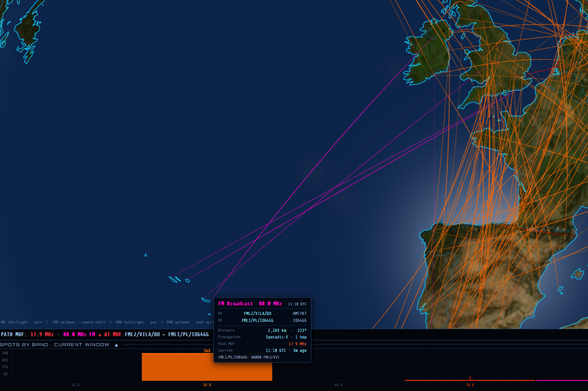

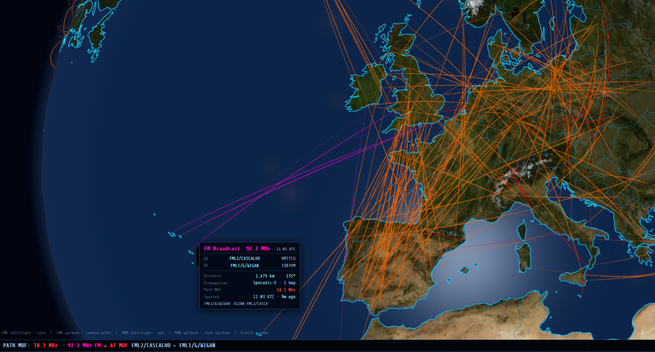

It renders propagation paths in realtime, projecting the signal path via realistic estimated bounce points around the globe. Ionospheric height is correctly rendered. Glowing areas appear at the reflection points and show sporadic-E clouds, coloured according to frequency (but not yet directly linked to the estimated MUF).

I'll follow up with more videos.

#radiopropagation
#g7izu

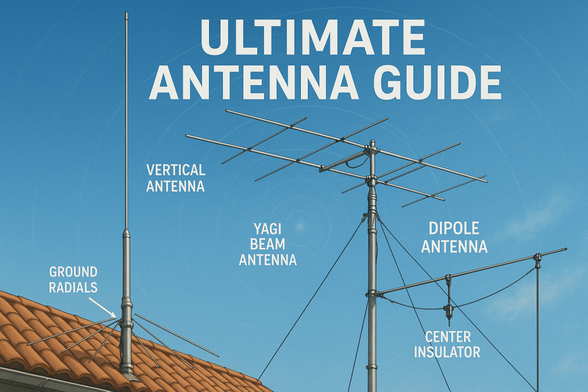

The Simple Dipole: How It Works and How to Get On the Air

1,706 words, 9 minutes read time.

Amateur radio is both a science and an art, and few tools illustrate this duality better than the dipole antenna. For men preparing to enter the world of amateur radio, mastering the dipole provides both practical communication ability and an understanding of RF principles that will serve across the hobby. The dipole is simple, reliable, and educational, offering a starting point that is technically satisfying without requiring complex equipment.

Understanding the Dipole Antenna

The dipole antenna consists of two conductive elements of equal length, aligned in a straight line with a central feedpoint. This straightforward construction allows it to function effectively across many HF bands. Each half of the antenna resonates at approximately one-quarter wavelength of the target frequency, resulting in a total length near one-half wavelength. The antenna’s resonance is critical; it ensures that electrical energy is efficiently converted into radio waves with minimal reflection back to the transmitter. As described by ARRL resources, the dipole’s simplicity and efficiency have made it a foundational element in amateur radio since the early 20th century.

Height and orientation directly influence the radiation pattern of the dipole. Mounted at roughly half a wavelength above ground, it produces low-angle radiation ideal for long-distance DX contacts. Lower heights create higher-angle lobes suitable for near-vertical incidence skywave (NVIS) communication. Orientation relative to the intended transmission path determines directionality; a dipole aligned north-south favors east-west propagation and vice versa. Inverted-V configurations, where the ends slope downward from the central support, offer nearly equivalent performance while reducing installation complexity.

Feedline considerations are straightforward. Coaxial cable provides a convenient, low-loss path for RF energy from the transceiver to the antenna. A center insulator supports the antenna mechanically and helps maintain symmetry, while optional baluns prevent common-mode currents that may cause noise. For beginners, the simplest center-fed coaxial dipole is sufficient to achieve reliable communication, highlighting the dipole’s accessibility.

Constructing a Dipole

Material selection impacts both durability and performance. Copper and aluminum wires are common choices, providing low resistance and consistent signal radiation. Synthetic insulators like PVC or nylon rope ensure mechanical stability. Secure attachment points, such as tree branches or poles, prevent sagging and maintain the antenna’s intended geometry. While ideal placement is desirable, the dipole is forgiving of small deviations in angle or elevation, making it practical for backyards, parks, or temporary field operations.

The classic length formula, 468 divided by frequency in megahertz, provides a reliable starting point for determining total dipole length in feet. For instance, the 20-meter band (~14 MHz) requires approximately 33 feet total, or 16.5 feet per leg. Small adjustments during installation and tuning may be necessary, and using an SWR meter or antenna analyzer can refine resonance. While more advanced configurations exist, beginners benefit from starting with a straightforward, correctly calculated dipole to build confidence.

Historical context enhances appreciation. Early amateur radio operators used half-wave dipoles because they were inexpensive, easy to construct, and effective for long-range communication. This antenna type set the standard for experimentation, teaching principles of resonance, radiation patterns, and impedance matching that remain relevant today. Understanding the historical significance also reinforces the dipole’s value as an enduring educational tool.

Practical Deployment Tips

Successful dipole operation relies on careful consideration of height, orientation, and local environment. Even minor obstacles, such as nearby metal fences or power lines, can alter the radiation pattern and increase SWR. Trees and poles can serve as convenient supports, but ensuring clearance and stability is essential. For portable operation or temporary setups, lightweight supports and rope insulators provide flexibility while maintaining the antenna’s integrity.

Feedline placement should avoid proximity to conductive surfaces that may introduce interference. Proper grounding and secure connections enhance both safety and signal clarity. Beginners often underestimate the role of small details, yet careful installation ensures that the dipole performs reliably without adding unnecessary complexity.

Experimentation is encouraged. Slight variations in height, angle, or leg length allow operators to observe changes in signal reports and coverage areas. Recording these observations develops an intuitive understanding of antenna behavior and helps operators make informed adjustments. Practical experience reinforces the theoretical knowledge gained from study, bridging the gap between calculation and real-world performance.

Safety Considerations

Safety is paramount when installing antennas. Dipoles should never be placed near power lines, and care must be taken when working at heights. Securing the antenna to prevent movement or detachment minimizes risk, while proper grounding protects equipment and operators from electrical hazards. Experienced operators emphasize that following standard safety practices ensures a successful and secure installation.

Mechanical considerations, such as tensioning wires to prevent sag and using robust insulators, enhance both longevity and safety. Environmental factors like wind, snow, or ice can stress antenna components, so reinforcing attachment points and selecting durable materials are important. By prioritizing safety, new operators can focus on learning and experimentation with confidence.

Scaling and Variations

Once comfortable with a basic dipole, operators can explore enhancements. Trap dipoles allow operation on multiple bands without complex switching. Off-center-fed dipoles provide broader bandwidth and different radiation patterns. Inverted-V arrangements optimize performance in limited spaces. Each variation builds on the foundational principles of the simple half-wave dipole, enabling continued learning and experimentation.

Multi-element arrays, directional antennas, and portable configurations all trace their conceptual roots to the dipole. Mastering the basic design facilitates understanding of these more advanced setups, illustrating how a simple, well-understood antenna can serve as a stepping stone to complex systems. These experiences deepen knowledge and encourage practical experimentation, reinforcing the learning process.

SEO Section: HF Antenna Fundamentals

A dipole is a fundamental HF antenna that introduces new operators to the physics of radio waves. Understanding half-wave resonance, feedpoint impedance, and radiation patterns provides insight into how antennas convert electrical energy into RF signals. This foundational knowledge is essential for troubleshooting, optimizing SWR, and improving communication efficiency. By emphasizing principles over complexity, beginners gain confidence in both construction and operation.

Radiation patterns, including main lobes and nulls, help operators predict performance in different directions. For instance, horizontal dipoles favor low-angle propagation ideal for DX contacts, while lower heights enhance NVIS communication. Hands-on observation of these effects reinforces theory, creating a practical understanding that supports further experimentation. Combining calculation, measurement, and observation ensures comprehensive learning.

Feedline interaction with the antenna is another critical area. Understanding the role of coaxial cables, baluns, and common-mode currents prevents signal degradation and noise introduction. Proper installation of these components complements the dipole’s performance, ensuring that energy reaches the air efficiently. SEO-friendly discussions of feedline types, impedance, and SWR optimization make the content accessible and relevant to search engines while educating readers.

SEO Section: Practical Deployment and Experimentation

Practical deployment tips enhance the learning experience. Emphasizing placement, height, and orientation prepares operators for real-world installation. Diagrams and illustrations of dipole configurations assist comprehension, while descriptive explanations connect theory to practice. Hands-on experimentation, including SWR measurement and signal reporting, allows readers to observe the immediate effects of changes in antenna setup.

Portable operation offers additional opportunities for learning. Lightweight supports, rope insulators, and flexible feedline arrangements demonstrate adaptability. Documenting results reinforces the link between adjustments and performance, creating a feedback loop that enhances understanding. These practices engage readers in active learning, encouraging both experimentation and consistent improvement.

Community involvement further strengthens practical application. Participation in club demonstrations, online forums, and local events provides guidance, mentorship, and insight into regional propagation characteristics. Sharing experiences with other operators allows new hams to validate their observations and learn alternative approaches, fostering a collaborative environment conducive to growth.

SEO Section: Safety, Materials, and Longevity

Safety considerations are essential in antenna deployment. Placement clearances, secure supports, grounding, and avoidance of power lines ensure operator protection. Selecting durable materials, such as copper or aluminum conductors and synthetic insulators, contributes to long-term reliability. Reinforced attachment points prevent mechanical failures due to wind, ice, or environmental stress.

Proper tensioning of wires and careful alignment maintain intended radiation patterns. Minor adjustments can influence SWR and overall performance, highlighting the importance of meticulous installation. Safety, combined with thoughtful material selection, ensures that beginners experience both immediate functionality and long-term stability in their dipole setups.

Routine inspections and adjustments enhance longevity. Observing wear on insulators, checking for corrosion, and verifying secure attachments prevent unexpected failures. This approach encourages disciplined maintenance practices and reinforces the importance of responsibility in antenna management, ensuring that operators can safely and reliably use their dipoles for years.

SEO Section: Scaling, Variations, and Future Exploration

After mastering the basic dipole, new operators can explore trap dipoles for multi-band use, off-center-fed designs for wider bandwidth, and inverted-V configurations for constrained spaces. Each variation demonstrates the adaptability of the dipole and provides opportunities for continued learning. Understanding these modifications deepens comprehension of RF principles and enhances practical skills.

Advanced applications, such as multi-element arrays or portable field setups, rely on the foundational knowledge gained from dipole experimentation. Observing how basic concepts scale to complex systems reinforces learning and encourages innovation. By exploring these variations, operators develop both technical expertise and confidence in problem-solving.

Future exploration includes integrating the dipole with emerging digital modes, monitoring propagation patterns, and experimenting with automated tuning systems. The dipole’s enduring relevance ensures that new operators can continually expand their capabilities while remaining grounded in essential principles. SEO-focused content highlighting these applications provides valuable guidance for readers seeking both practical and theoretical growth.
