First draft of a small project page for the #NeXT #SoundBox mini. I will successively create similar project pages for the other models (#NeXTcube, #MegaPixel Display).
In front of it a landing page listing this and upcoming project pages.
#Miniatures #RetroComputing #Replicas #VintageComputing #3DPrint #3dprinting #Electronics #PCB #PCBDesign
Today I got my batch of #PCB's from #JLCPCB for the front panel LEDs of my #NeXTcube mini.
Turns out: I mistakenly swapped the top and bottom layer. 🤪
I had another part of my #NeXTcube mini printed with #resin by #JLCPCB as a test.
The difference in quality is unbelievable! I should stop doing that. Otherwise I won't even want to print with filament anymore. 🙈

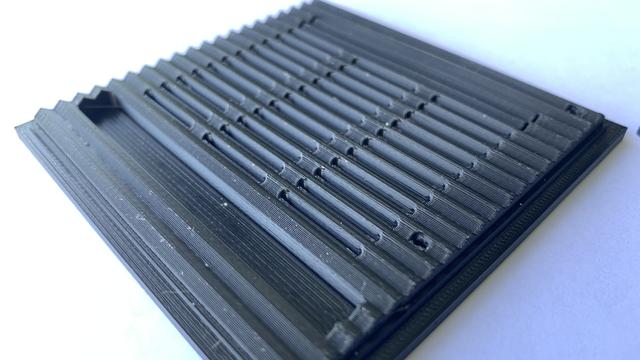

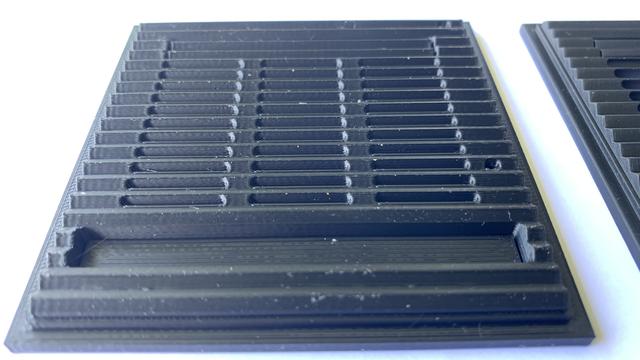

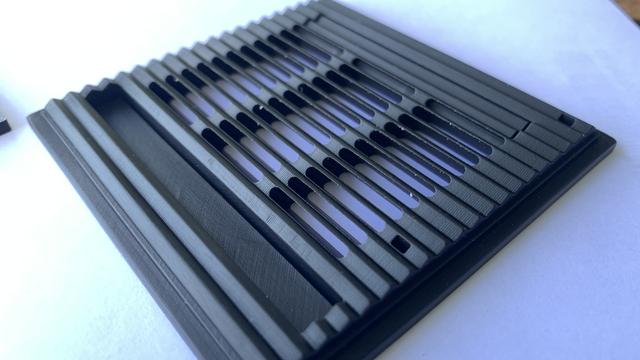

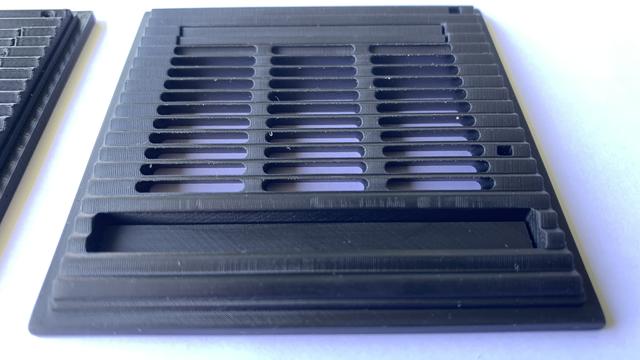

#FDM printing on the right, resin printing on the left.
#3DPrint #3DPrinting #NeXTComputer #VintageComputing #RetroComputing

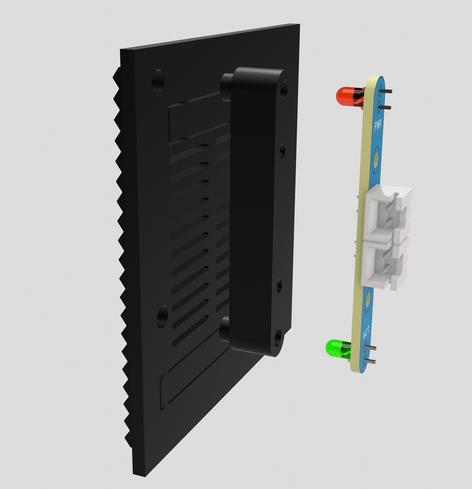

I think I found a clean solution to assemble the two LEDs at the front grill of my #NeXTcube mini. It's a tiny custom #PCB holding the LEDs with two JST sockets, which will be wired up directly to the #RaspberryPi #GPIO ports.
#3DPrint #3DPrinting #RetroComputing #VintageComputing #NextComputer

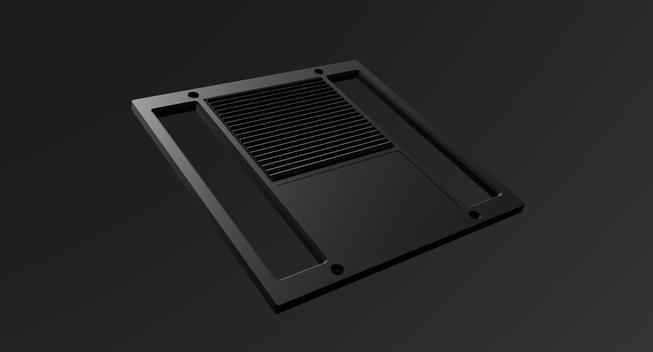

It's the backplate of my #NeXTcube mini. 😃
