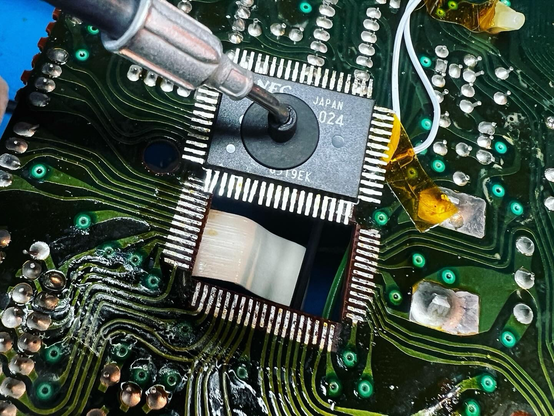

On a bit of a roll tonight, clearing the backlog. This MC-202 came in for a Tubbutec MC-2oh2 upgrade. This requires a little bit of SMT rework, but it absolutely transforms the simple MC-202 into a top-notch groovebox! 😊

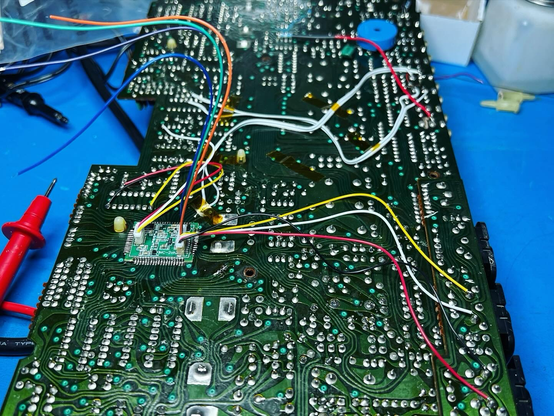

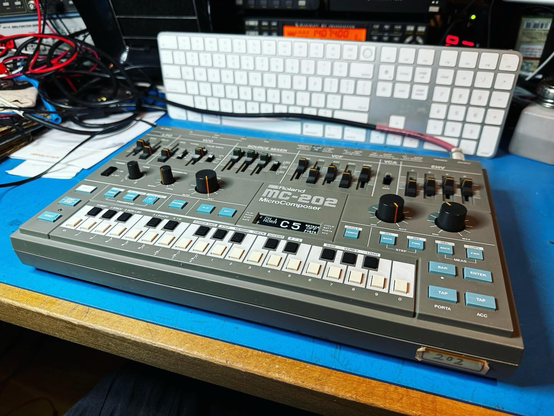

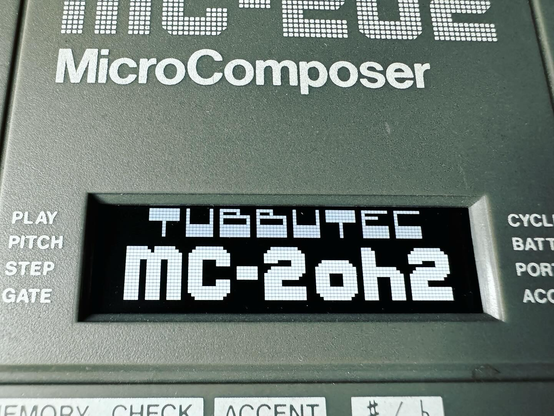

So - new processor, new keyboard, new OLED display module fitted, plus a handful of simple mods to the existing board. Done and looking and sounding glorious!

#Roland #MC202 #RolandMC202 #Tubbutec #MC2oh2 #VintageAnalog

MC-2oh2 now shipping!
And as you can see we already installed quite a few, more coming.
https://tubbutec.de/mc-2oh2/

#mc2oh2 #tubbutec #synthporn #gearporn #rolandmc202 #mc202 #retrofit #midi #synthesizer #vintagesynth #analogsynth

Tubbutec MC-2oh2 upgrade for Roland MC-202
https://tubbutec.de/mc-2oh2

#synthesizer #vintagesynthesizer #midi #upgrade #electronics #tubbutec #mc2oh2

This (very yellow) MC-202 had another MC-2oh2 upgrade installed and goes out to one of our beta-testers!

#mc2oh2 #tubbutec #synthesizer #electronics #retrosynth #rolandmc202 #midi #synthdiy

Testing #mc2oh2 and having fun. Here syncing to a #rolandtr606 and using the sequencer and arpeggiator.

#synthesizer #vintagesynth #analogsynth #tubbutec #rolandmc202

We forgot an important board cutout in the MC-2oh2 keyboard PCB. Luckily pur CNC mill comes to the rescue!

#mc2oh2 #cnc #pcb #electronics #milling #tubbutec #synthesizer

Tester for the MC-2oh2 CPU replacement 'main board'. The tiny PCB is assembled on both sides and has 64 1mm pitch castellated holes.
The tester uses springy pins, similar to the ones used by @arturo182 to interface the board. 1mm pitch is challenging but just about managable. On the bottom, two additional JST 1mm pitch connectors are connected and those signals tested as well. (1 year old, but haven't posted it here yet)

#mc2oh2 #tubbutec #electronics #synthesizer #rolandmc202 #vintagesynths
