Step 34/140: This time, a photo-etched railing and an internal cover for several hull openings are added. A LED is also installed, which will serve as the port-side navigation light.
#Scalemodels #Hachette #Grafzeppelin
#Kriegsmarine #WW2 #aircraftcarrier #cv
Step 33/140: Another port-side hull section is installed, bringing the model to ~70 cm (half length). Missing starboard parts allowed easy access and assembly..
#Scalemodels #Hachette #Grafzeppelin
#Kriegsmarine #WW2 #aircraftcarrier #cv

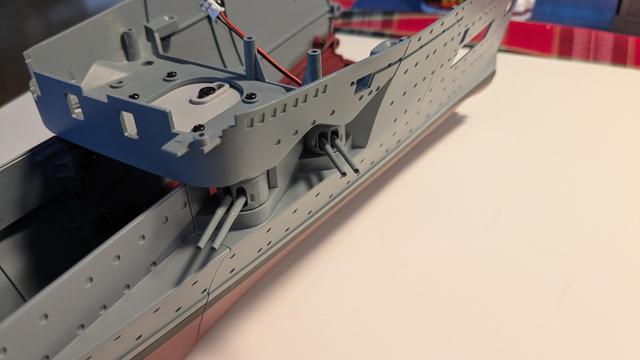

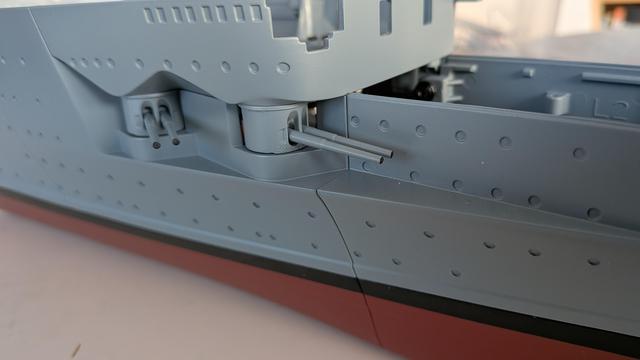

Step 32/140: Hull extension begins after installing the forward guns. A new underwater section is added on the port side, nearly doubling the model’s hull length.
#Scalemodels #Hachette #Grafzeppelin
#Kriegsmarine #WW2 #aircraftcarrier #cv

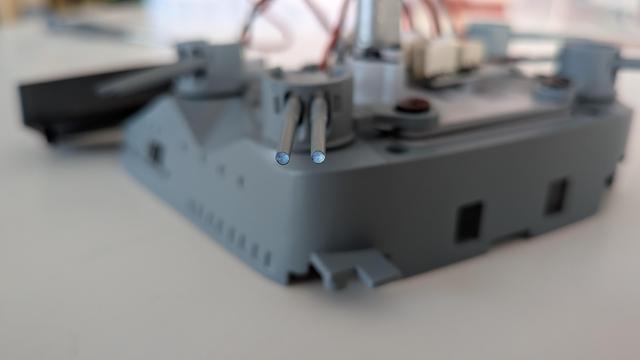

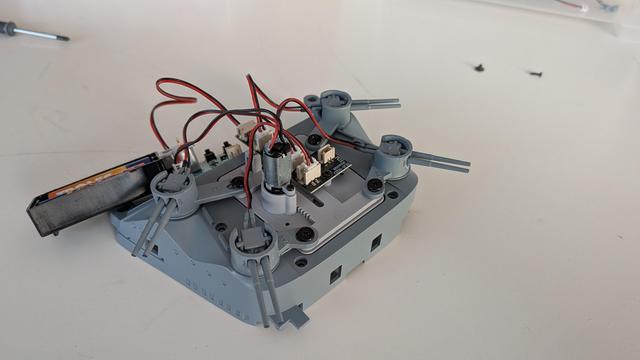

Step 31/140: Forward 15 cm turrets completed: motor and wiring installed, LEDs and rotation tested. Guns move together, but work reliably and add dynamics.
#Scalemodels #Hachette #Grafzeppelin
#Kriegsmarine #WW2 #aircraftcarrier #cv

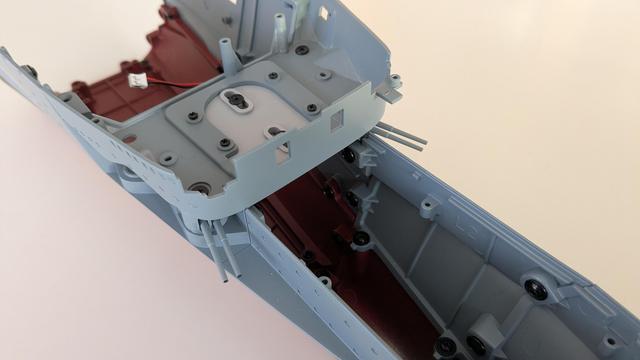

Step 30/140: Adds forward 15 cm gun linked to traverse system and installs a switchboard to centralize wiring for gun movement and firing.
#Scalemodels #Hachette #Grafzeppelin
#Kriegsmarine #WW2 #aircraftcarrier #cv

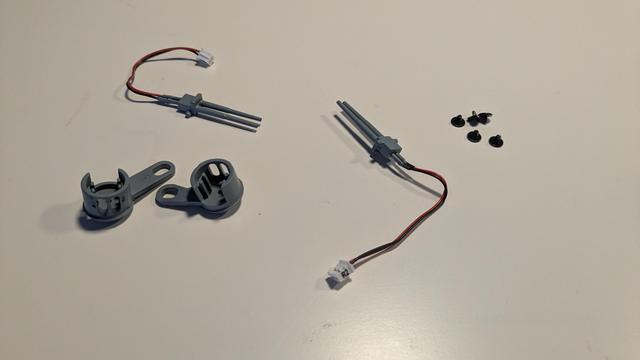

Step 29/140: First forward 15 cm gun mounts are installed, LED-equipped guns fitted into casemates and linked to the traverse mechanism with care not to overtighten.
#Scalemodels #Hachette #Grafzeppelin
#Kriegsmarine #WW2 #aircraftcarrier #cv
Step 28/140: Start building the forward 15 cm turrets: assembling the deck and gun movement base, then test-fitting the unit on the hull.
#Scalemodels #Hachette #Grafzeppelin
#Kriegsmarine #WW2 #aircraftcarrier #cv
#Geopolitik #Sozialwissenschaften
(2/n)
...dürfte für den klügsten der der derzeitigen #Diktatoren, #Xi, wohl exzellente #Fallstudien aus dem wirklichen Leben sein.! --In nur 9 Jahren wird die #Chinesische #Kriegsmarine wohl über 6 #Flugzeugträger verfügen:
https://meta-defense.fr/de/2026/01/06/6-porte-avions-marine-chinoise-2035/
Um deinen Faden fortzuspinnen:
#China wäre nicht die erste imperialistische #Asiatische #Großmacht,...
Das Pentagon geht davon aus, dass China bis 2035 über mindestens sechs Flugzeugträger verfügen wird. Die operative Umsetzung muss jedoch noch anhand der industriellen Produktionsrate, der Personalausbildung und der logistischen Unterstützung sichergestellt werden.

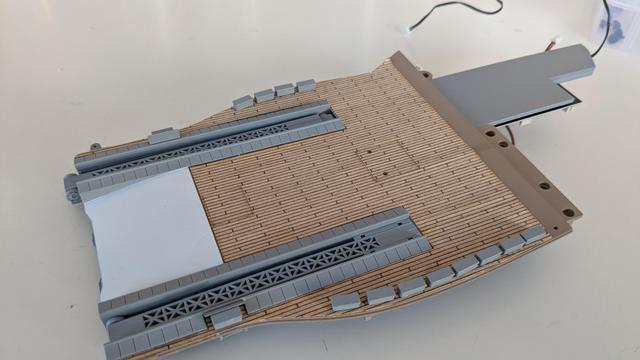

Step 27/140:Second catapult completed with optional protective cover; both catapults finished. Fourth Ju 87 assembled and ready for use.
#Scalemodels #Hachette #Grafzeppelin
#Kriegsmarine #WW2 #aircraftcarrier #cv
Step 26/140:After finishing the movable catapult, the second fixed catapult with sled is installed, and equipment boxes are added along the deck edges for detail.
#Scalemodels #Hachette #Grafzeppelin
#Kriegsmarine #WW2 #aircraftcarrier #cv
