Exploring how embedded audio can enhance fitness products? Our new blog breaks down the KT148A voice chip – a powerful, low-cost solution in a tiny SOP8 package.

Ideal for adding voice guidance, motivational audio, or alerts to treadmills, smart mirrors, wearables, and more. The post covers applications, advantages, and the full dev toolkit.

https://lnkd.in/gPAh2EWx

#KT148A #VoiceChip #EmbeddedAudio #FitnessTech #Hardware #OpenHardware #EmbeddedSystems #DIYElectronics #Make

A quick public service announcement for my fellow hardware tinkerers and embedded developers using the KT148A sound chip.

When you interface its one-wire serial port with your microcontroller, always include a series resistor.

The Rule: Use a 1KΩ resistor for a 5V MCU, and a 100Ω resistor for a 3.3V MCU. This simple step makes your design more robust.

#HardwareDesign #EmbeddedSystems #Electronics #KT148A #DIYElectronics #Engineering

https://lnkd.in/gKQGkUjk

Upgrade your robot vacuum with the KT148A voice chip! Deliver real-time cleaning updates, error alerts, and mode changes in multiple languages. Features 16-bit PWM audio, ultra-low power (<10 μA standby), and easy integration. Ideal for smart home innovation. #VoicePrompt #SmartHome #RobotVacuum #EmbeddedDesign #IoT #KT148A #Hardware

https://lnkd.in/gTe_kU5k

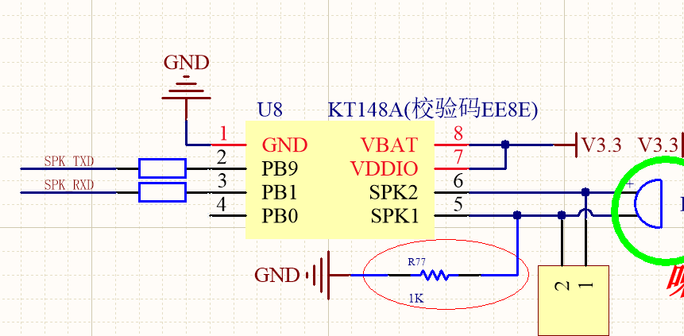

KT148A Voice Chip FAQ: Can't hear the 'beep' when trying to enter download mode by shorting Pin 5 to ground? This is common.

Solution: Connect Pin 5 to ground through a 1K resistor. This makes the power-on beep much louder and clearer.

Even with no audible beep, you can often still connect your serial tool and download via PC software. Experimentation is key! #KT148A #VoiceChip #Electronics #EmbeddedDesign #Hardware #DIYTech #Engineering

https://lnkd.in/gVEa95Wv

A common hurdle for developers using the KT148A voice chip: one-wire serial communication. If you're debugging with no success, especially with a CH571F MCU, don't blame the controller.

The solution often lies in two areas:
1. Confirm the chip isn't in download mode (Pin 5 low at power-on).
2. Strictly adhere to the timing pulse widths in the datasheet.

This is a firmware-centric fix.

#Embedded #Electronics #Firmware #Debugging #KT148A #OneWire #CH571F #Maker

https://www.linkedin.com/pulse/kt148a-faq-collectionhave-you-implemented-one-wire-serial-tsui-slcpc

Struggling with low sound volume from a KT148A voice chip product? Our analysis shows the problem is almost always acoustic, not electronic.

The solution isn't an external amplifier, which can burn out small speakers. The real fix is system-level.

The KT148A's built-in drive capability is more than enough for common 8Ω 1W speakers. Focus on the mechanics and acoustics for a major volume boost.

#KT148A #VoiceChip #AudioDesign #EmbeddedHardware #OpenHardware #Electronics #DIYElectronics

Debugging tip for embedded audio: If your microcontroller resets the moment the KT148A voice chip starts playing, don't blame the code—check your power delivery.

The sudden current draw (up to 200mA) can cause a voltage drop, browning out the MCU. The solution involves fundamental circuit design.

A simple fix for a common problem in power network design.

#Embedded #Hardware #Electronics #AudioDesign #PCB #KT148A #Maker

https://www.linkedin.com/pulse/kt148a-voice-chip-serial-version-mcu-malfunction-during-junluan-tsui-bpdqc

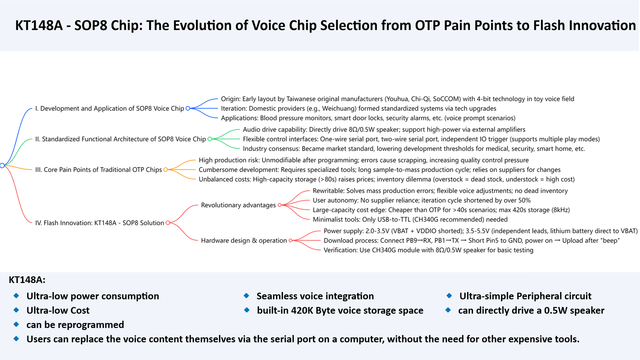

If you're designing a product that needs a voice chip with roughly 1 minute of storage—and you want the freedom to update the audio yourself—the KT148A is a perfect fit.

Search "KT148A" on AliExpress for current pricing.

#VoiceChip #AudioPlayback #EmbeddedHardware #OpenHardware #KT148A #Electronics

Stuck with a Microsoft Visual C++ error using the KT148A voice chip serial download tool on #Windows11?

https://www.linkedin.com/pulse/kt148a-voice-chip-serial-download-tool-error-causes-guide-tsui-aljoc

#KT148A #VoiceChip #EmbeddedSystems #Troubleshooting #Hardware #Electronics #QingyueElectronics #TechSupport
