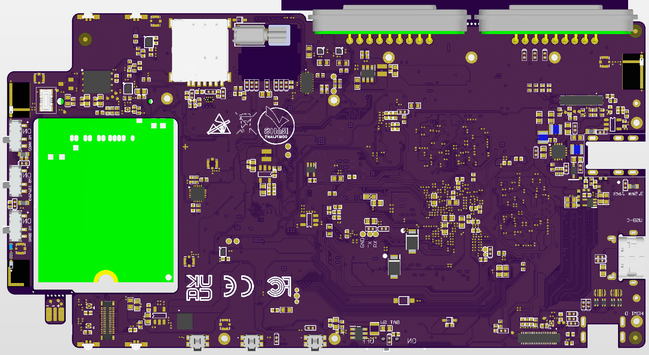

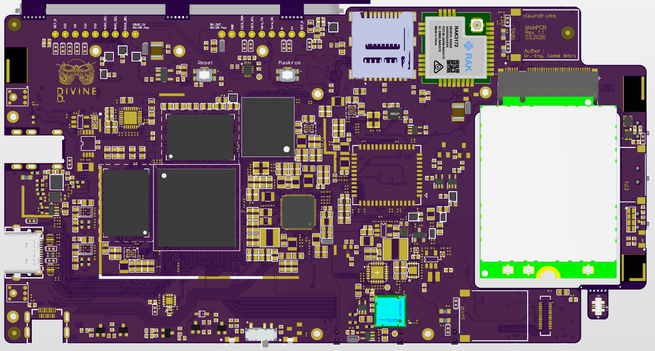

Divine D Rev. 1.1: MainPCB Layout Complete.
The layout phase has wrapped and the boards are now in production.

Besides the changes previously mentioned here (https://docs.dawndrums.tn/blog/dd-rev1.1-arch), what's more making it into this revision:

- RK3172 LoRa module
- LG77L as a standalone GNSS receiver
- Three chip antenna for WiFi, Bluetooth and GNSS, with high efficiency
- Mechanical optimizations for a more compact 5.5" design.

More updates once the fab house delivers.

#dawndrums #divined #linux

Divine D. is a Linux phone with some cool bits in it.

https://itsfoss.com/news/divine-d-project/

#linux #phone #dawndrums

Divine D. open source smartphone inches closer to launch, gains microSD Express, micro HDMI, and LoRa support

Earlier this year a Tunisian group called DawnDrums SARL revealed their initial plans to build a Linux-friendly smartphone called the Divine D. with a 5.5 inch AMOLED display, a Rockchip RK3588S processor, and an open source design.

Now the team says it’s updated the mainboard with a Rev 1.1 design that brings a number of significant changes, including a bunch of features you’re unlikely to […]

#dawndrums #divineD #linuxPhone #mobileLinux #openHardware #openSource

Read more: https://liliputing.com/divine-d-open-source-smartphone-inches-closer-to-launch-gains-microsd-express-micro-hdmi-and-lora-support/

We have finalized the schematics for Divine D. Rev. 1.1 and are now moving to the layout phase. The hardware architecture includes new subsystems such as microSD Express, micro HDMI, LoRa, and an under-voltage battery monitor.

Additionally, a Pogo interface allows for accessory connections, exposing USB 2.0, SPI, JTAG SWD, I2C, terminal UART, GPIOs, and a bi-directional power path. For more details, check our blog: https://docs.dawndrums.tn/blog/dd-rev1.1-arch/

#LinuxMobile #foss #Linux #divined #dawndrums
