OTREES #cvut booth at #LinuxDays 2025 presenting our CAN/CAN FD projects for #Linux, #NuttX, #FPGA and #RTEMS. SaMoCon motion control platform driven by pysimCoder rapid prototyping solution for #NuttX with online monitoring and parameters tuning and update uploads through silicon-heaven and NXboot integrated in the frame of Štěpán Pressl’s #GSoC 2025 (will be presented in detail on NuttX Workshop October 16 and 17). More on the booth: #Espressif based kits running NuttX (ICE-V Wireless, see our PMSM project, #ESP32C6 with M-bot platform), AMD/Xilinx Zynq MZ_APO running Linux and #RTEMS, PolarFire SoC, Milk-V Pioneer 64 core 64-bit #RISCV system running #QtRvSim (for CompArch education), #CHROMuLAN data acquisition over uLAN driver, LX_RoCoN system used for ESA projects and lot more to see at our booth.

Part of CTU FEE OTREES HW ZOO at #LinuxDays booth. On the left , #RiscV #milkvpioneer with #fedora desktop running #CHROMuLAN, #qtrvsim with new branch predictors visualization and Elektroline.cz Silicon-Heaven SHVspy https://github.com/silicon-heaven/libshv. On the right, x86 Debian running Silicon-Heaven broker and #pysimCoder https://github.com/robertobucher/pysimCoder to generate and runtime tune PMSM control application running on #NuttX on open-source motion control platform SaMoCon https://gitlab.fel.cvut.cz/otrees/motion/samocon which is a result of Stepan Pressl's thesis https://wiki.control.fel.cvut.cz/mediawiki/images/4/44/Bp_2024_pressl_stepan.pdf . On the left in front, MZ_APO Xilinx Zynq based educational kit running Debian from NFS RO root. Its FPGA is configured by 2x CTU CAN FD, PMSM motor control peripherals and RVapo #riscv soft core co-processor used for inverse and forward Park and Clarke transformations for PWM, current sensing and calibration all running at 20 kHz in sync with PWM cycles. The soft core was started by Eduard Lavus as PAP course project and has been extended and integrated with PMSM by Damir Gruncl - see more about these projects in the OTREES theses list https://gitlab.fel.cvut.cz/otrees/org/-/wikis/theses-defend

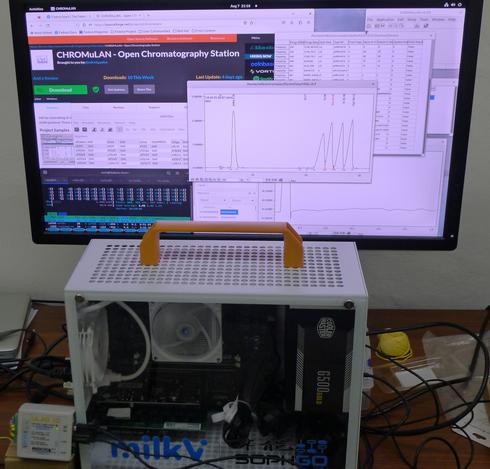

#CHROMuLAN running chromatography data acquisition from ULAD32 on Milk-V Pioneer box #milkvpioneer 64-core RISC-V system. Application has been built on that system as well as #freepascal and #Lazarus LCL actual mainline GIT versions. uLAN kernel driver for instruments connection and control has been build directly on the system as well. Our #QtRvSim #Qt based simulator builds and on this #riscv system as well. More about our open-source chromatography system serving users more than 20 years there https://sourceforge.net/projects/chromulan/
