Crash//G0thic 🏳️🌈 ⚧️Hello nice Web peeps!! Has anyone had any experience with building an #AtariPunkConsole from #Rakit? I’ve successfully built mine and it’s sounding good. The only thing is when I connect my #Microfreak via CV and gate the notes ascend and descend the opposite way from usual. Any ideas?

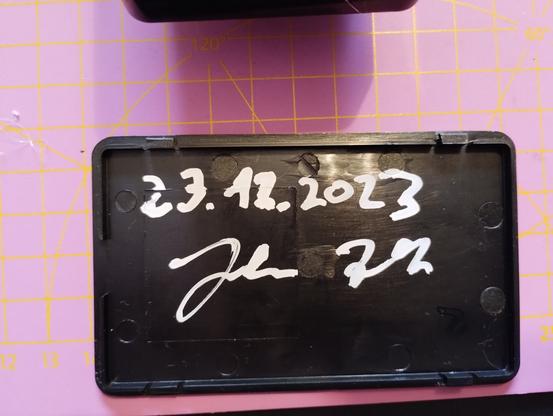

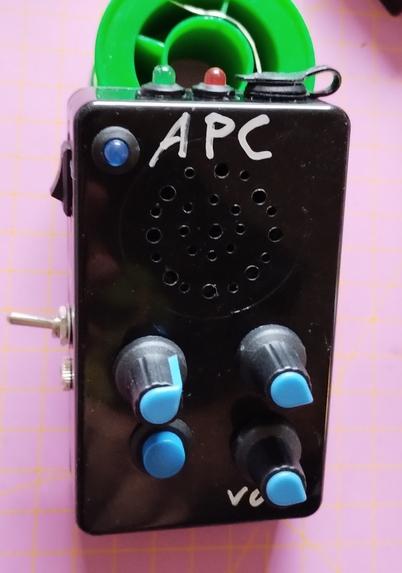

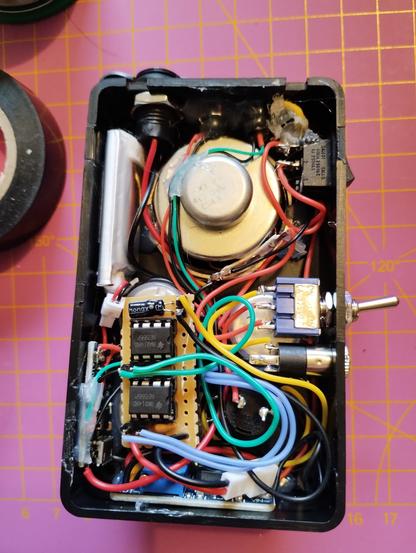

RommudohAnd my Atari Punk Console is finished. It's really very cramped in there, but it worked and I can still close it. I also added date and signature on the inside.
#AtariPunkConsole #synth #diysynth #555timer
#AtariPunkConsole #synth #diysynth #555timer

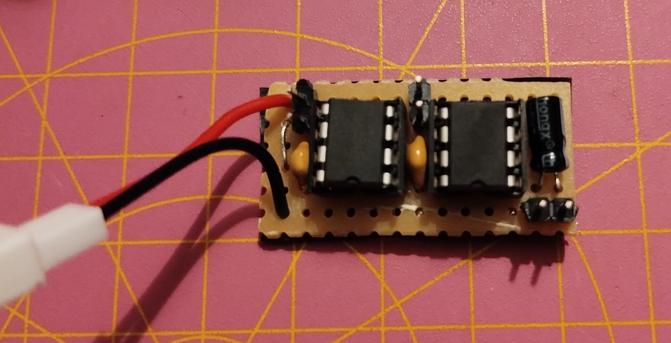

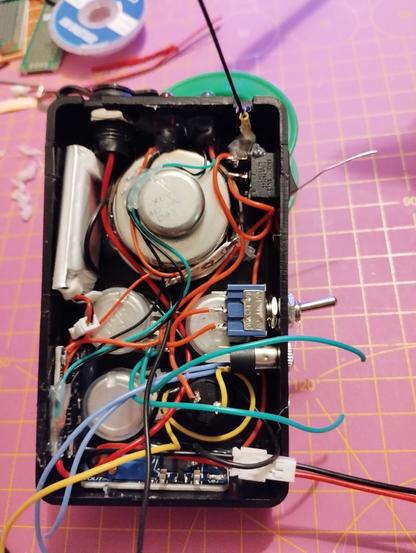

It's almost done now. The main #circuit is soldered and tested, the boost converter is set to 9.2V and only the headphone jack and the cables to the main board are missing.
Some of the components are held in place by hot glue.
#AtariPunkConsole #synth #diysynth #soldering #555timer #555 #oscillator #hotglue
Some of the components are held in place by hot glue.
#AtariPunkConsole #synth #diysynth #soldering #555timer #555 #oscillator #hotglue
I built an Atari Punk Console on a #breadboard few days ago, and now I'm planning how to build a nice #enclosure for it.
I want to fit speaker, audio jack, salvaged #LiPo battery, #TP4056 charging and protection board, boost converter to get the 9 Volt, USB-C socket for charging, and of course some potentiometers, switches, and a minimized board for the #circuit.

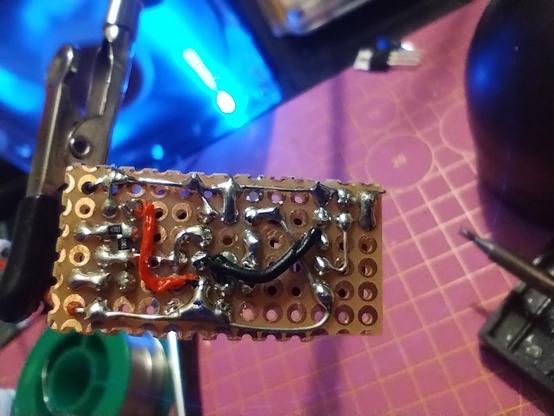

Planning the #PCB layout was done using #KiCad, using SMD resistors.
#AtariPunkConsole #synth #diysynth #soldering #perfboard
I want to fit speaker, audio jack, salvaged #LiPo battery, #TP4056 charging and protection board, boost converter to get the 9 Volt, USB-C socket for charging, and of course some potentiometers, switches, and a minimized board for the #circuit.
Planning the #PCB layout was done using #KiCad, using SMD resistors.
#AtariPunkConsole #synth #diysynth #soldering #perfboard
Andro AbhiLessons in Mass Production from an Atari Punk Console
#musicalhacks #parts #apc #ataripunkconsole #designformanfacturing #dfm #manufacturing #massproduction #packaging #scaleup #hackaday
-- Delivered by RssEverything service
GeekProjects NewsLessons in Mass Production from an Atari Punk Console https://hackaday.com/2023/11/16/lessons-in-mass-production-from-an-atari-punk-console/ #designformanfacturing #ataripunkconsole #massproduction #manufacturing #MusicalHacks #packaging #scale-up #Parts #apc #dfm
shedtronicAtari Punk Console shenanigans https://youtu.be/OZ75F2cR6MM #makers #makerspace #ataripunkconsole #MakersOfMastodon #oscillators #steppedtonegenerator #556
