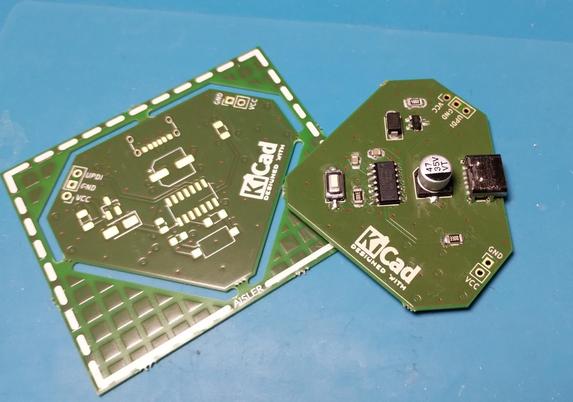

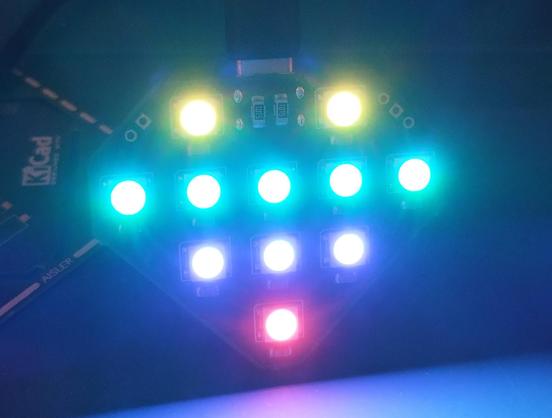

Inspired by my last #WS2812B #PCB, I decided to do a smaller version and try to add a USB C connector. I'm very pleased how it turned out. The LEDs are not as close to each other as last time, but I still used my hot plate to solder them. And hot air for the back side.
Again, manufactured by @aislerhq and designed using @kicad
#pcbdesign #diyelectronics #ATtiny814 #hotplatesoldering #hotairsoldering #soldering #usbc
Show threadRommudohJan 23

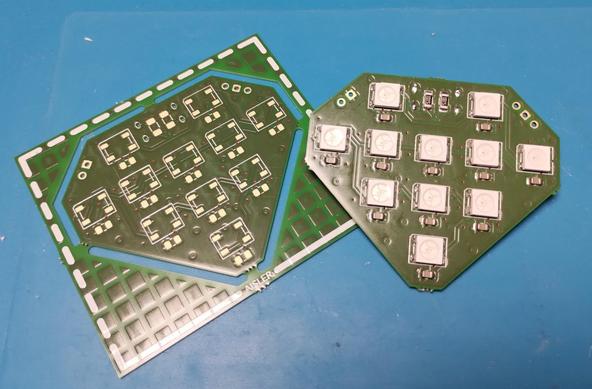

Here are the boards! I soldered a first one by hand, but the #WS2812B #LEDs are very close to each other. So some have burn marks. Hot air is no option, it would burn them up. So, I bought a hot plate and tried again. It's so much faster and easier! And it worked directly after #soldering.
I only need better solder paste, this one was difficult to clean.
#ATtiny814 #diyelectronics #heart #neopixel
Show threadRommudohDec 22

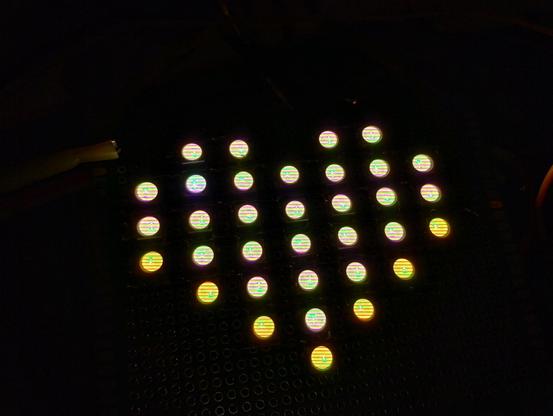

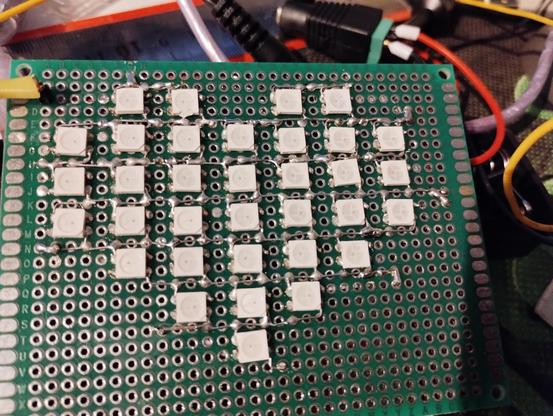

Since it'll take some time for the PCBs to arrive, I decided to make a #prototype on #perfboard. It works fine, and I can test my programs using it. Turns out an #ATtiny814 is good enough for the task.
The #WS2812B #SMD #LEDs are very bright, though, and reducing brightness also reduces the possible color range.
The different color shadings are not very distinguishable, yet. I might have to adjust the color palette.
#diyelectronics #soldering
