Andy Warburton ❌❌❌I think I’m happy with this enclosure design! All goes together with friction. No screws needed! #3dprinting #3dprinted #wled #rgbled #rgb #neopixel #maker #makers #electronics #1segrgb
Eugh, I’m having a really hard time visualising the #3dprinted enclosure for my seven segment clock project. Can’t quite decide how to take it to the next level. #1segrgb
And just like that we have a functioning clock! currently running on a propmaker RP2040 but I will probably have to move over to something WiFi enabled before long #pcb #electronics #maker #RP2040 #RaspberryPi #jlcpcb #circuitpython @adafruit #1segrgb
They said this wouldn’t work but it bloody well does! Just three more digits to solder up (161 individual LEDs!) and I’ll have a clock!
I’m so glad it does work though because I ordered two hundred of these pcbs 😂
#maker #electronics #pcb #jlcpcb #wled #rgb #neopixels #1segrgb
First full loop and its working great (if you can look past my shitty soldering skills). Really happy with this - can't wait to finish off the first number, but that will have to wait until tomorrow because my eyes are to tired for soldering any more of these sk2816 mini-e LEDs!
New #PCB day! I’ve tested continuity and everything seems to be working as intended. Just need to make up a second board so I can test if it does what it’s supposed to!

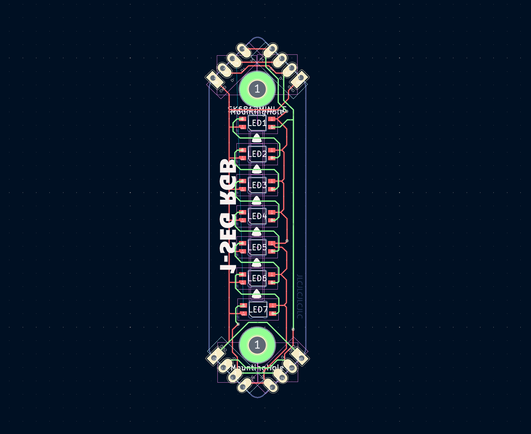

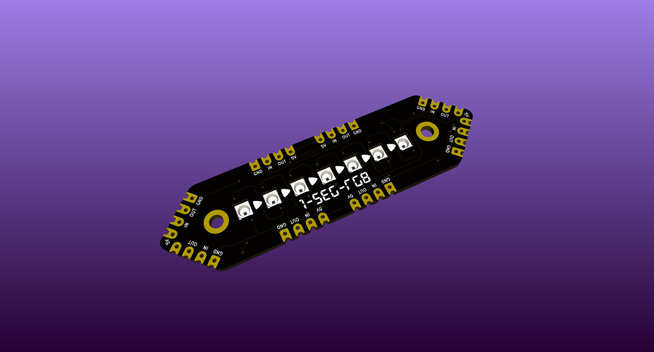

V2 of my 1-seg #PCB concept is pretty much ready with through hole pads for adding wires (thanks to @LovesTha for the suggestion), fixed some bugs (thanks to @PossiblyMax for catching) AND added a bunch more pads to open up even more usage options too! /thread #electronics #maker #rgb #1segrgb

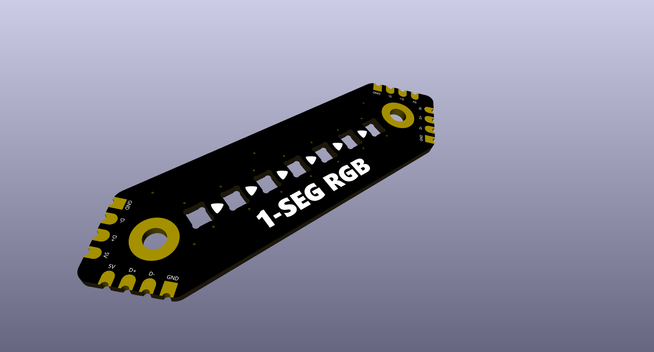

Yesterday I got a little bit hyperfocused on designing a little #electronics kit that allows you to build seven segment displays out of these individual 1-segment #pcb 's which you solder together using the castellated edges. Each strip would feature 7 reverse mount sk6812 mini-e #rgb leds (for easy soldering) and the whole thing would be daisychainable. #maker friends, please tell me all the reasons this would be a horrible idea before I waste a ton of money ordering parts and PCBs :) #1segrgb
